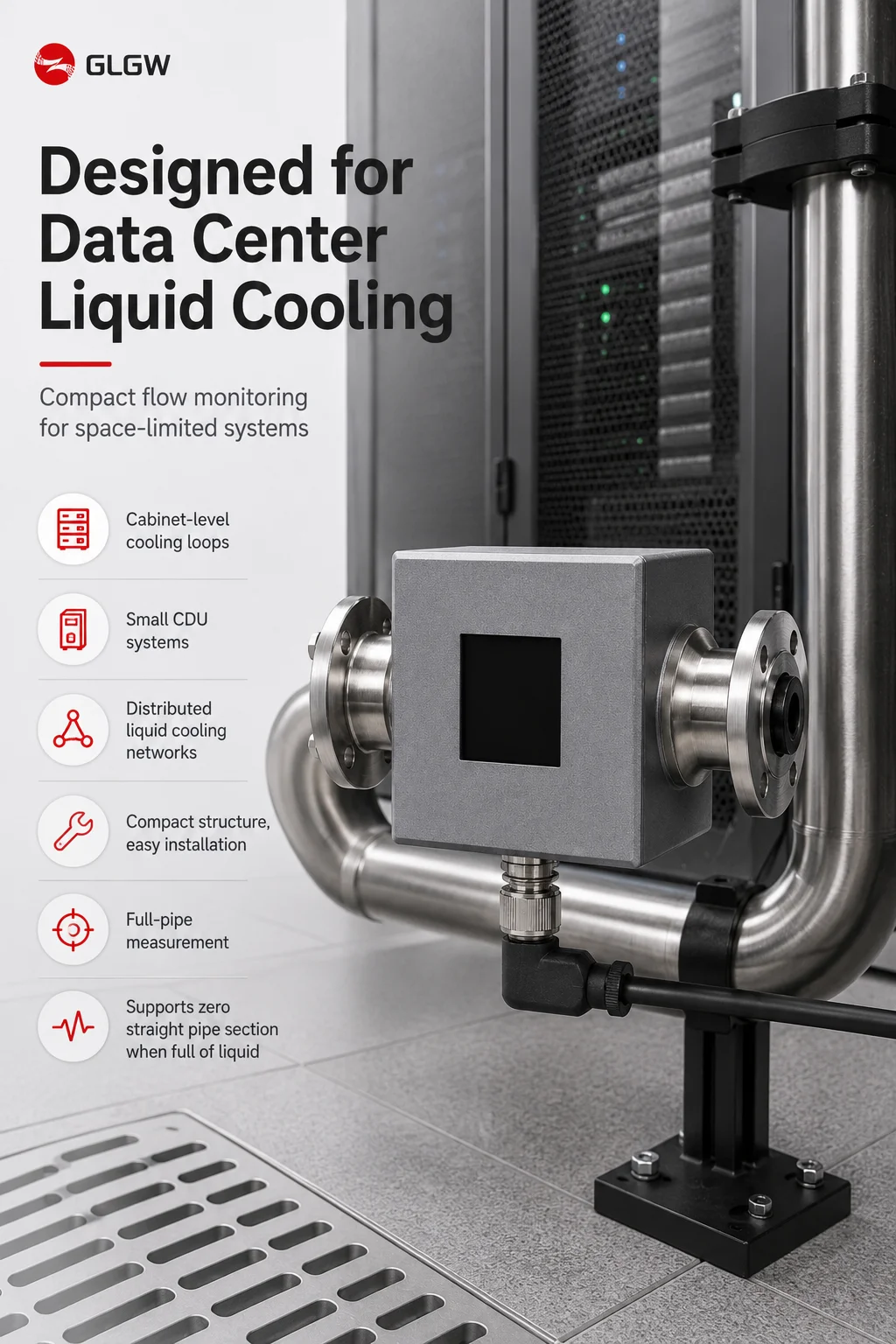

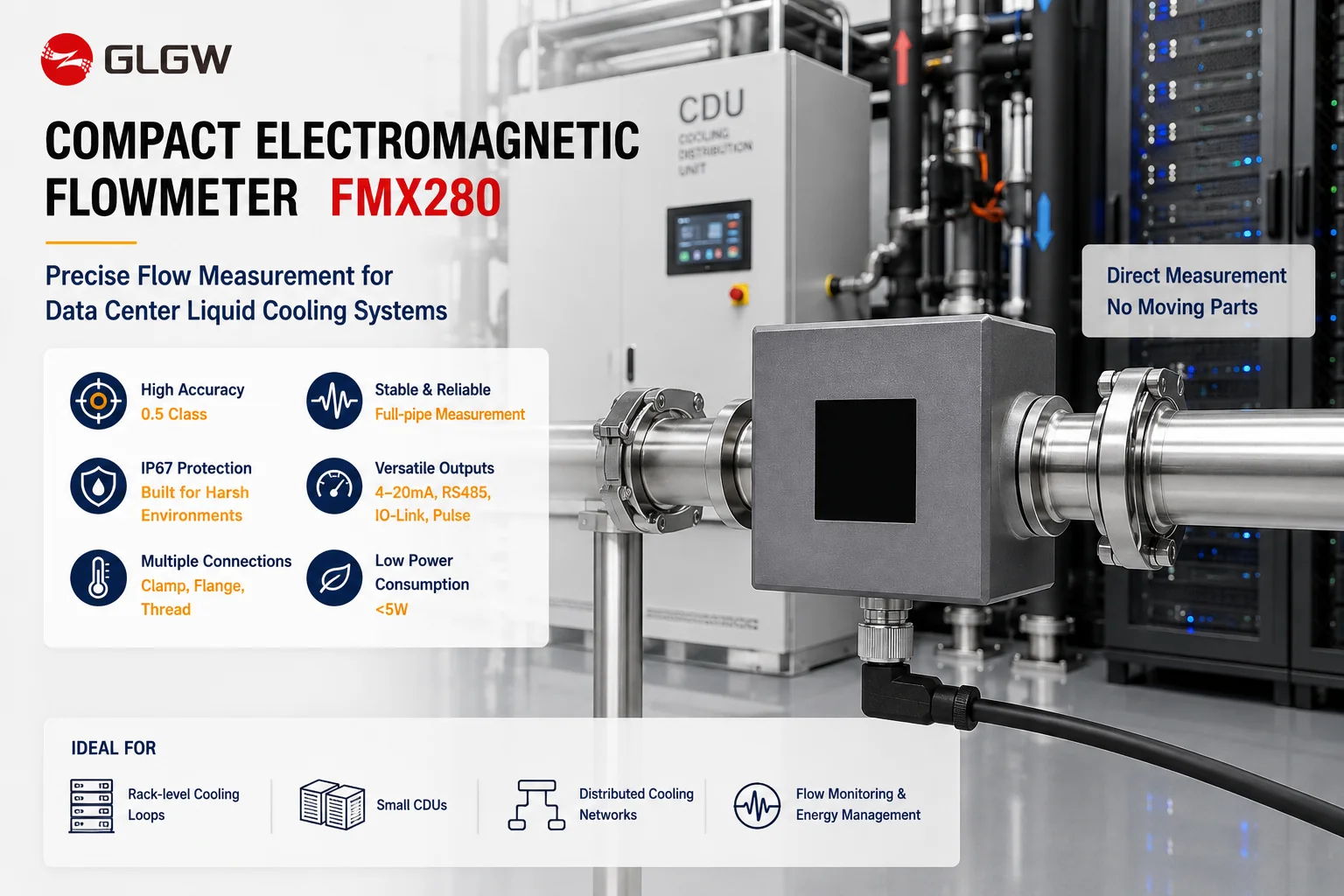

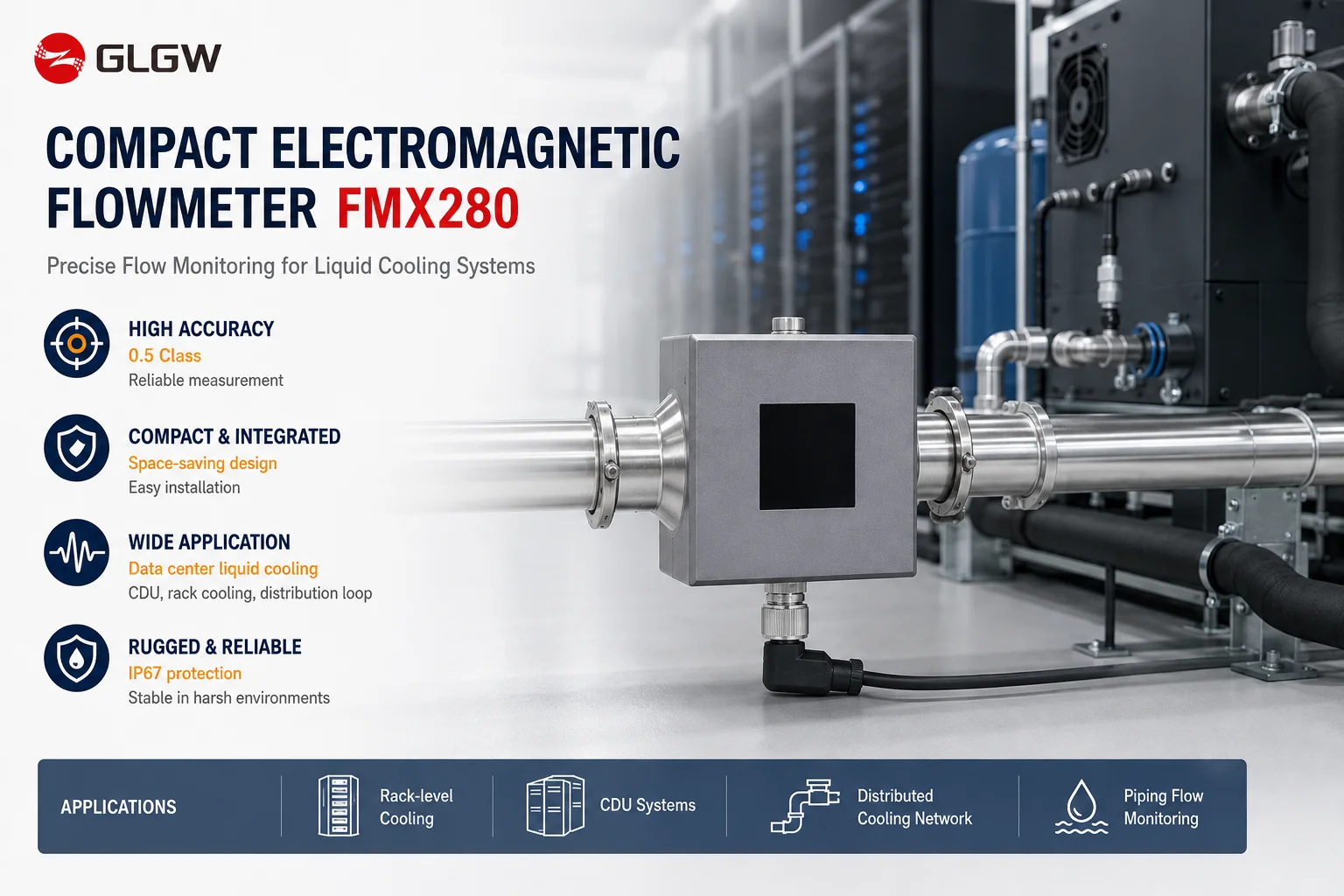

1. Ultra-Compact Design & Zero Straight Pipe: Specially engineered for space-constrained data center liquid cooling systems, rack-level circuits, and compact CDU units. Supports zero straight pipe installation when fully filled with liquid.
2. High Accuracy & Wide Flow Range: Delivers Class 0.5 (±0.5%) measurement accuracy across DN6 to DN65 pipe sizes, covering flow rates from 0.03 to 30 m³/h for conductive liquids .

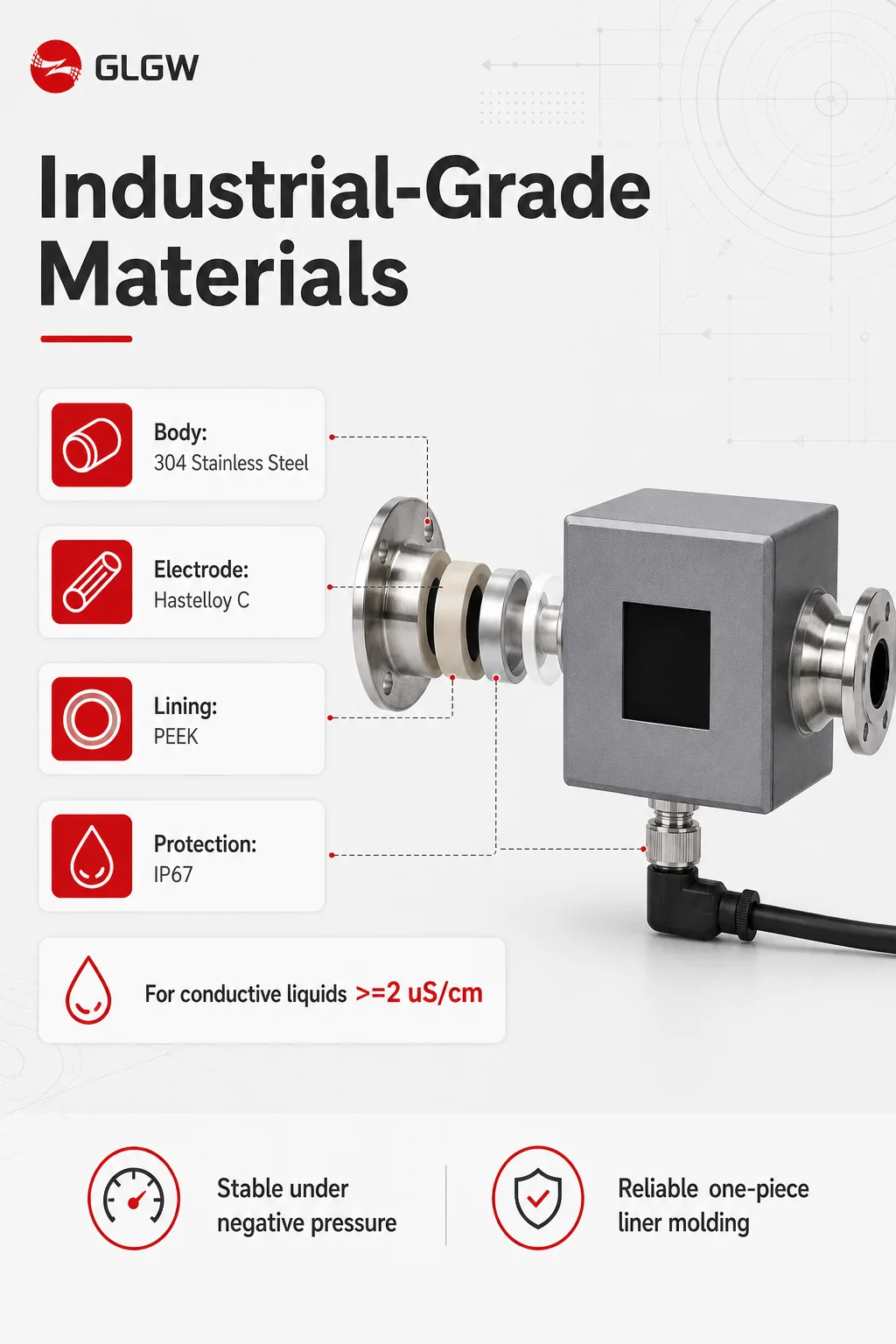

3. Industrial-Grade Corrosion Resistance: Equipped with a 304 stainless steel body, high-durability PEEK lining, and Hastelloy C electrodes, ensuring outstanding longevity and reliability in cooling loops.
4. Smart Digital Outputs & Protocols: Integrates 4-20mA analog, RS485 (Modbus-RTU), IO-Link, and configurable pulse outputs for seamless connection to PLC, DCS, and server monitoring systems.
5. Robust & Energy-Saving: IP67 protection rating, PN16 (1.6 MPa) pressure tolerance, wide medium temperature range (-40°C to 90°C), and ultra-low power consumption (<5W).

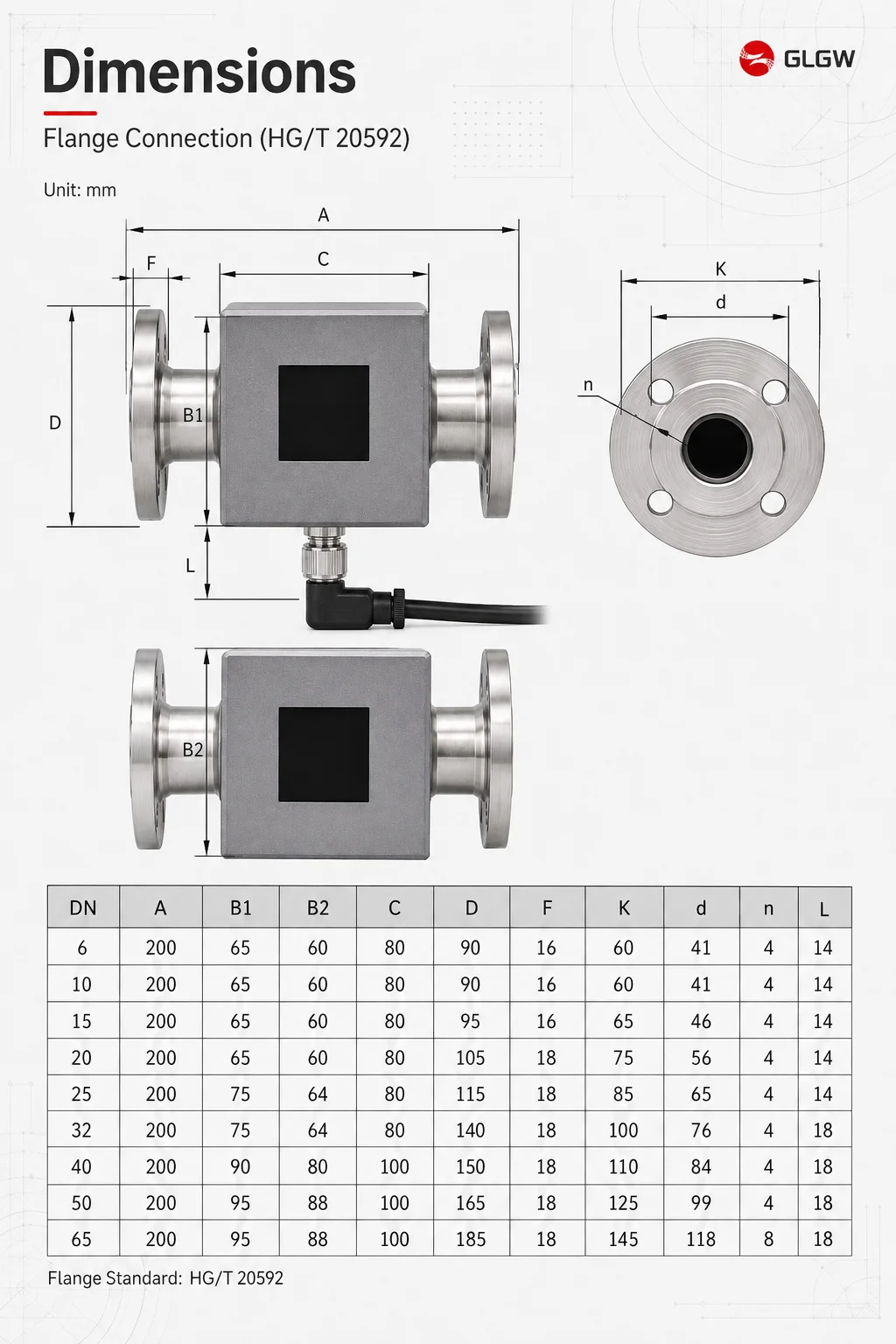

6. Multiple Process Connections: Offers versatile installation options including ISO 2852 Tri-Clamp, HG/T 20592 Flange, and standard G/NPT Male Threads with M12 4-pin quick-disconnect connectors.

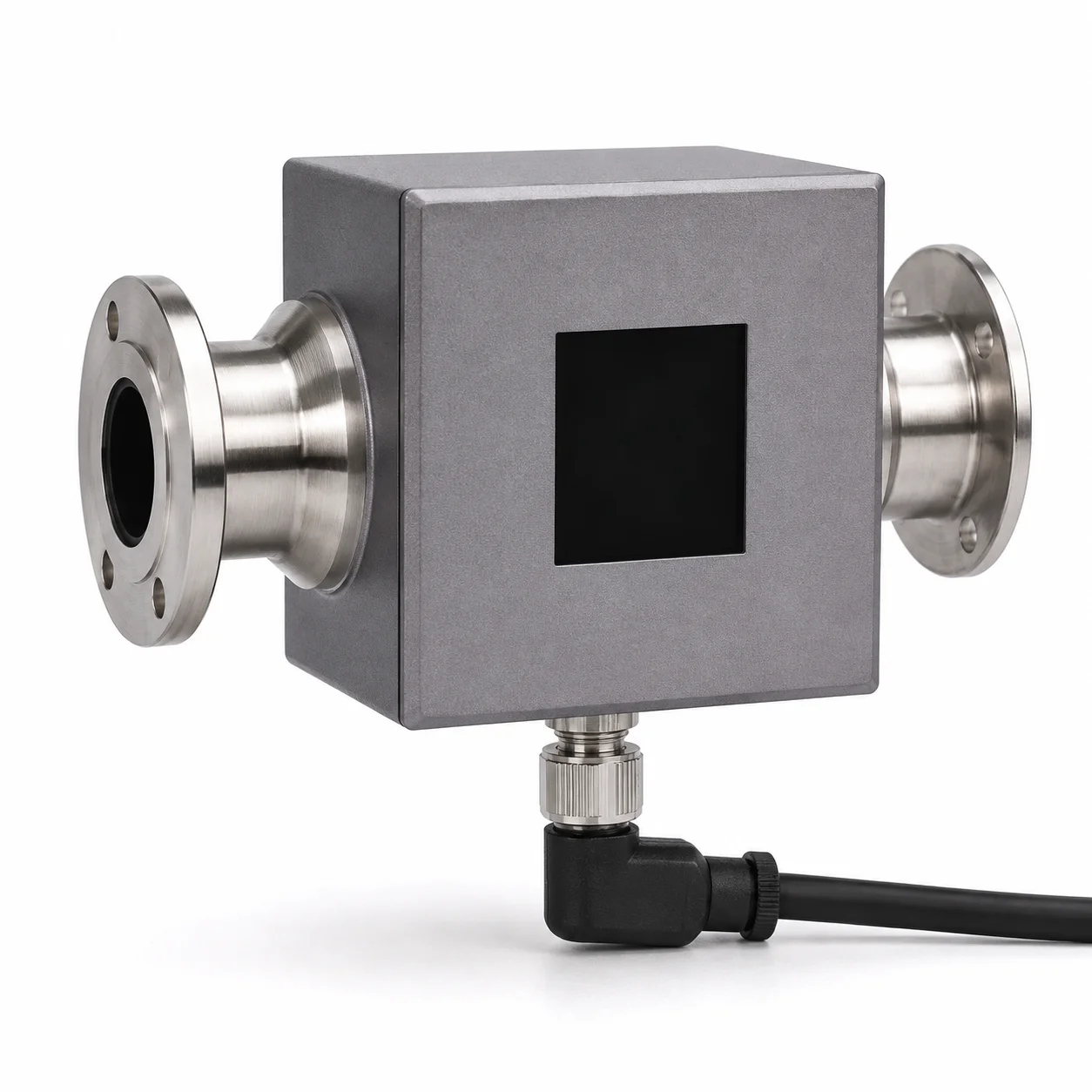

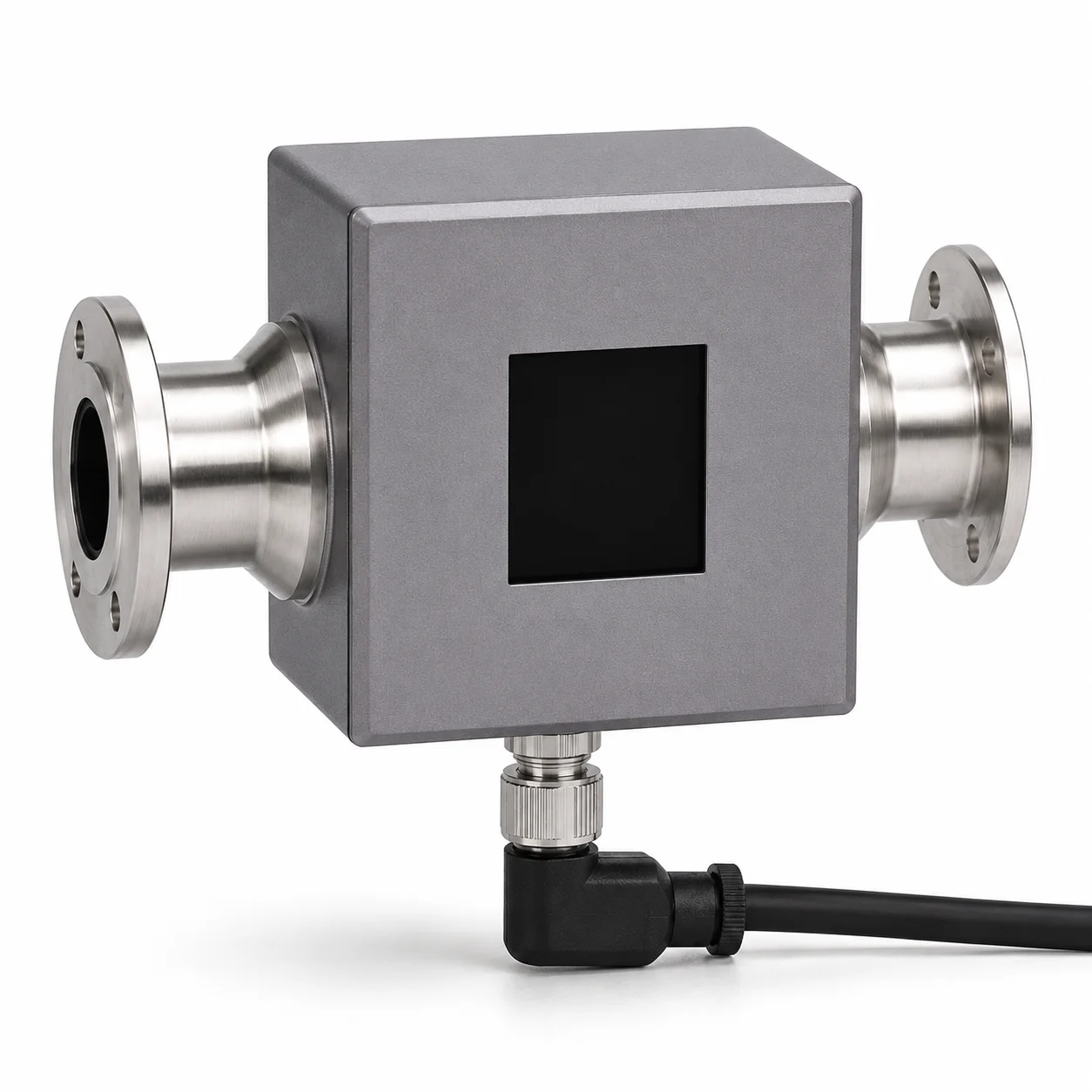

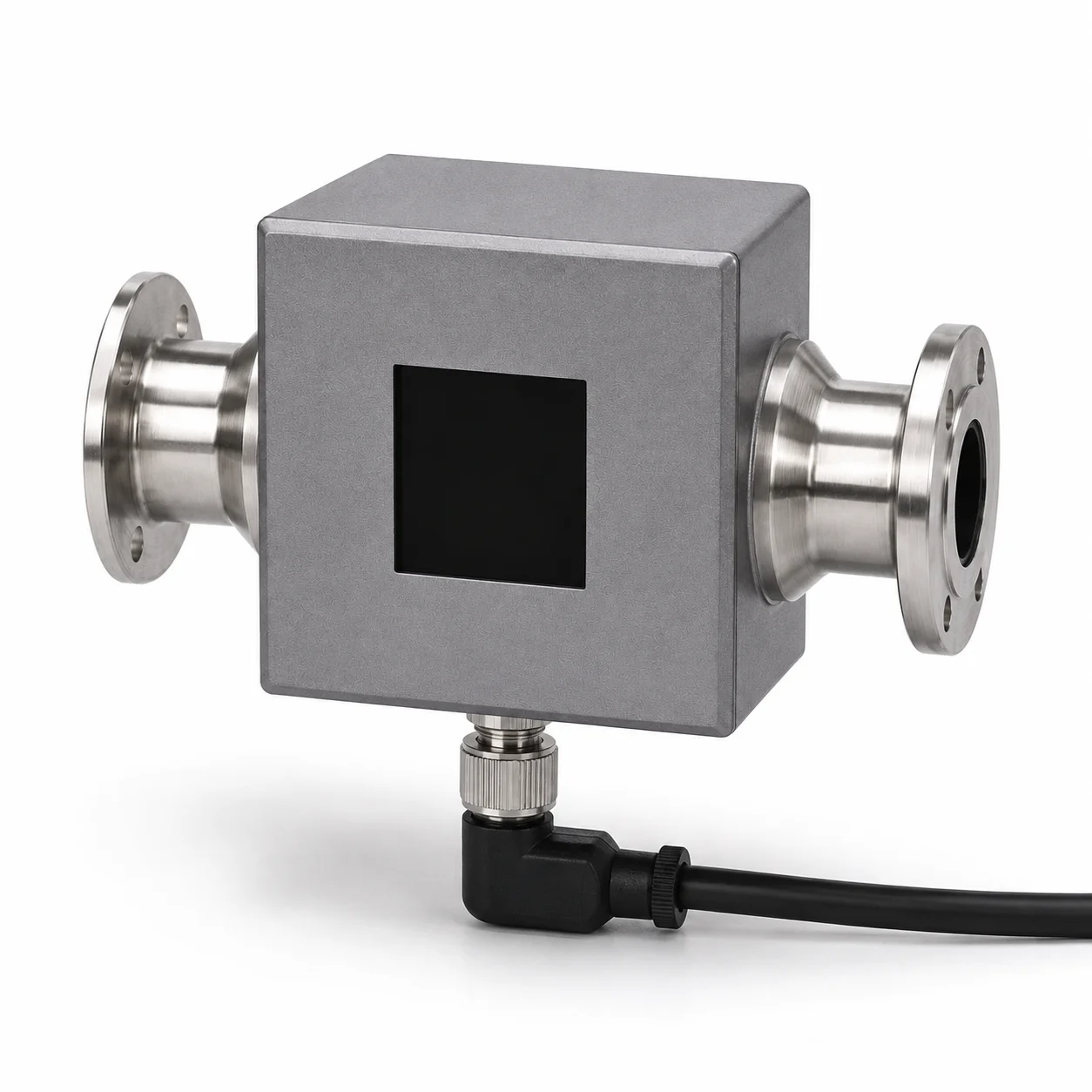

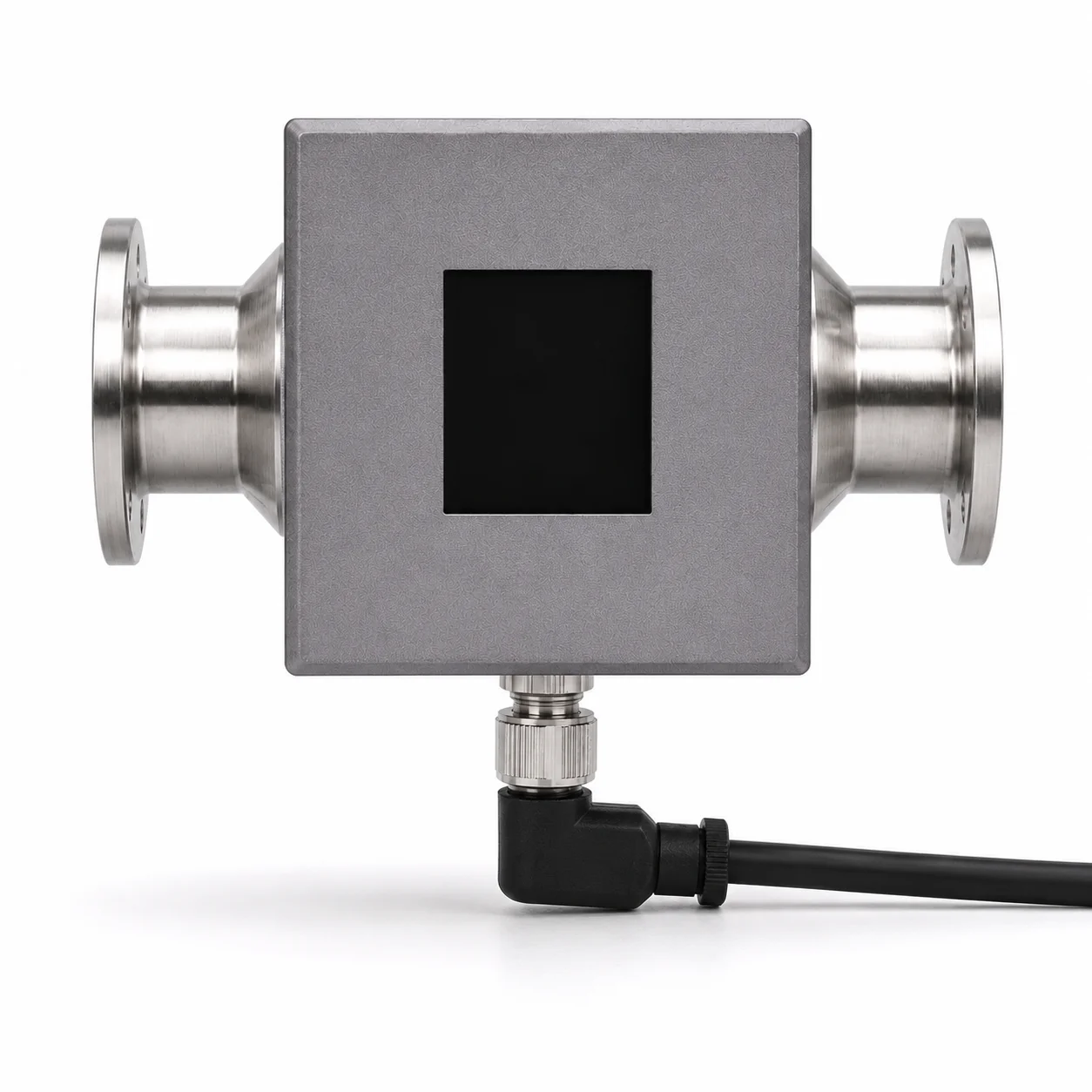

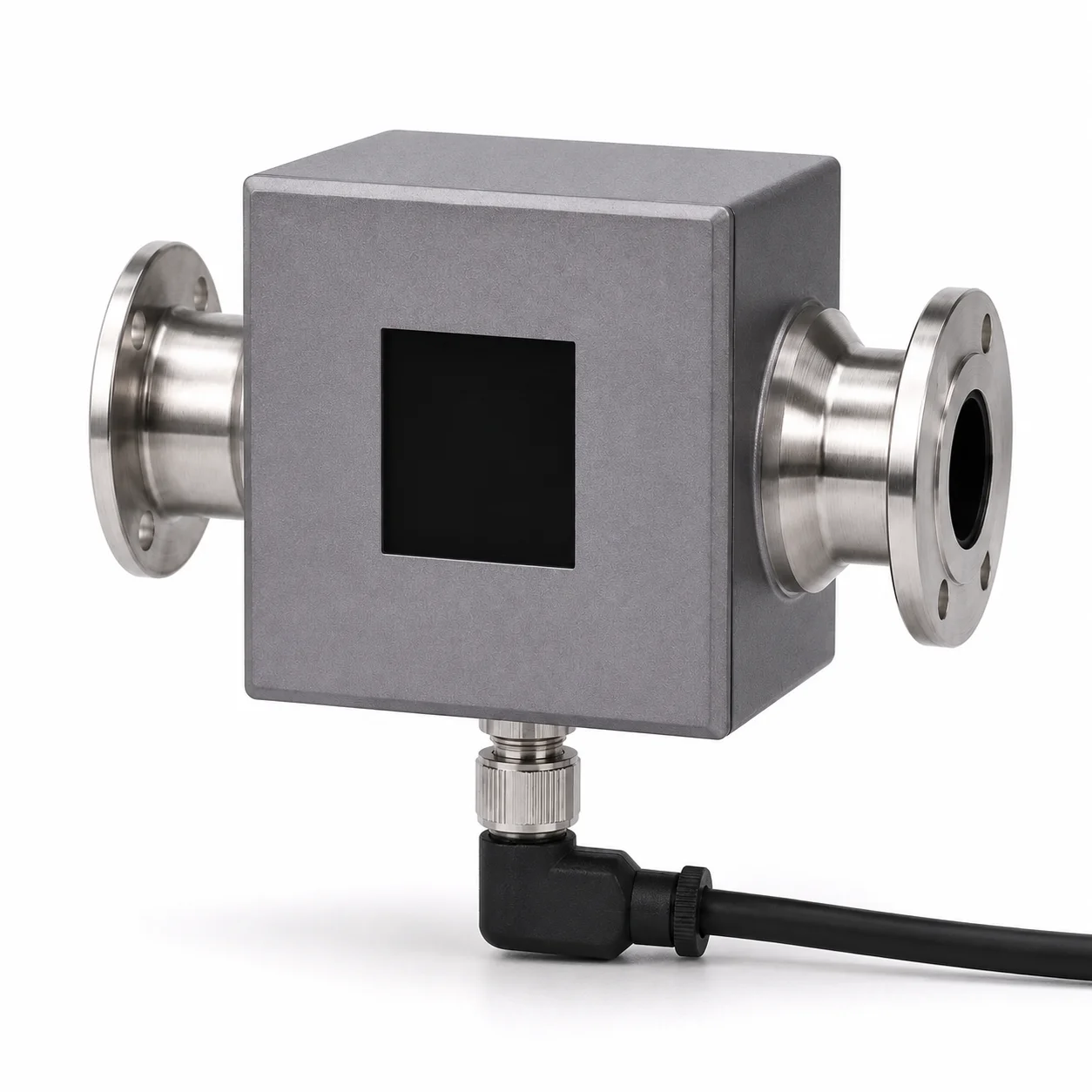

Straight Run Compact Electromagnetic Flow Meter IO-Link RS485 Modbus Liquid Cooling Flowmeter with Hastelloy C Electrode FMX280
Spu:
1601935982338
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd. specializes in advanced flow meter solutions, offering high-precision electromagnetic flow meters with IO-Link and Modbus communication. The company focuses on liquid cooling applications, delivering Class 0.5 accuracy across DN6-DN65 ranges. With a 51-100 employee team, it serves a domestic market of 50% and international clients in North America, South America, and Eastern Europe.
FAQs
What types of liquids can the FMX280 electromagnetic flow meter measure?
The FMX280 is designed for conductive liquids with electrical conductivity ≥ 2 uS/cm, including cooling water, chilled water, and glycol-water solutions. It is widely used in data center liquid cooling circuits, CDUs, and industrial pipelines. Note: It cannot measure non-conductive fluids like pure oils, hydrocarbons, or gases.
What is the measurement accuracy and available size range?
It features high measurement accuracy of ±0.5% (Class 0.5) with nominal diameter options ranging from DN6 (1/8") to DN65 (2.5"), covering flow ranges from 0.03 m³/h up to 30 m³/h.
Does the FMX280 require straight pipe sections for installation?
No. Designed specifically for compact spaces like server rack cooling loops and CDU units, the FMX280 supports zero straight pipe installation (0 DN) when fully filled with liquid, greatly saving installation space.
What output signals and communication protocols are supported?
The FMX280 supports 4-20mA analog output, RS485 with MODBUS-RTU protocol, IO-Link, and configurable pulse equivalent output, equipped with a standard M12 4-pin connector for fast wiring.

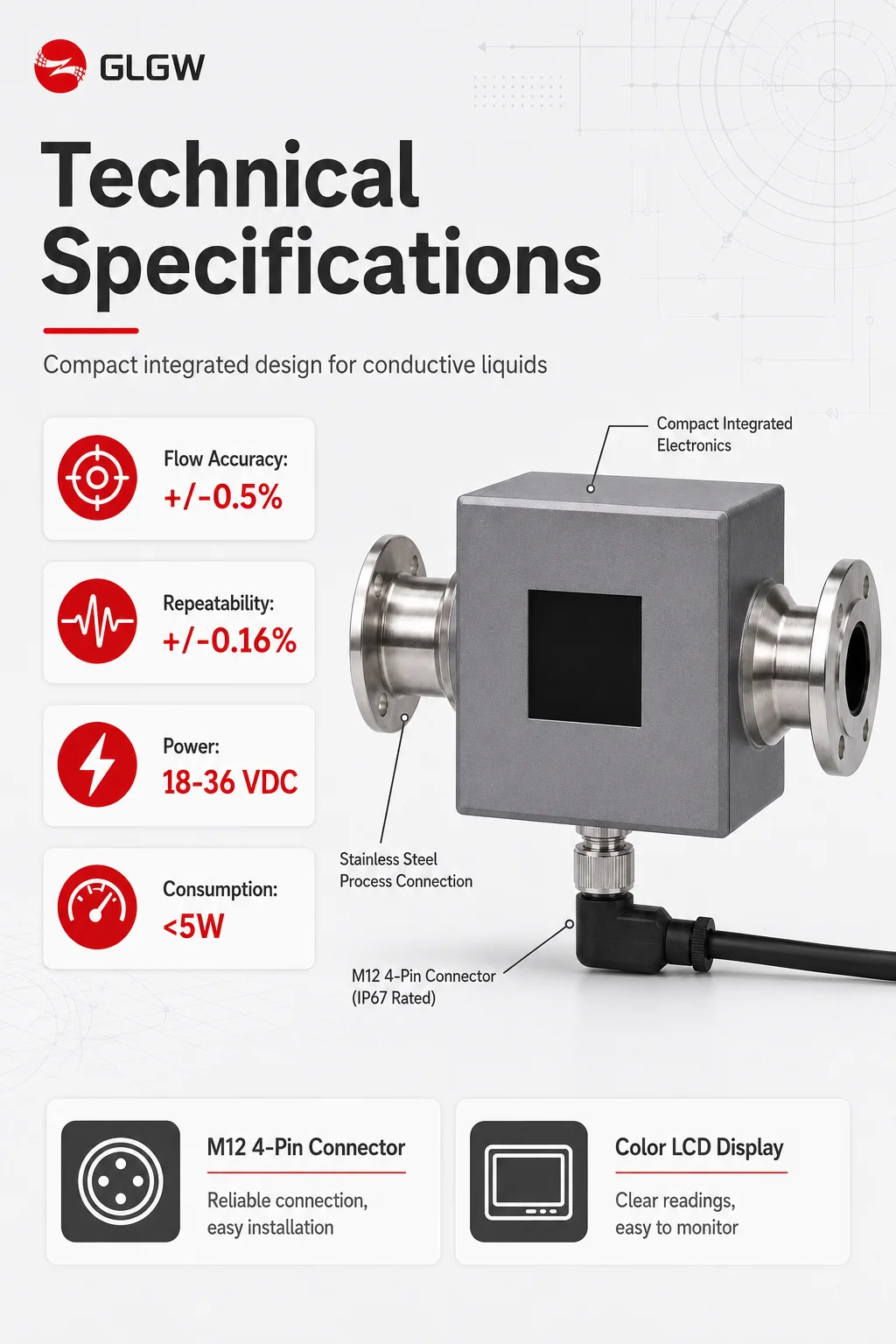

What are the materials, operating pressure, and temperature ratings?
It features a 304SS body, PEEK lining, and Hastelloy C electrodes, offering PN16 (1.6 MPa) pressure tolerance, IP67 protection rating, and a wide medium temperature range of -40°C to +90°C.
What process connections and customization options are available?
It offers ISO 2852 Tri-Clamp, HG/T 20592 Flange, and standard G/NPT Male Threads. We also support custom cable lengths (2m to 20m), OEM branding, and optional integrated temperature & pressure measurement.
