Stainless Steel Construction: Durable and resistant to corrosion for long-lasting performance.
Flat Face Design: Ensures a secure seal and prevents fluid leakage.
Wide Flow Range: Supports high flow rates up to 28.5 L/min for efficient cooling systems.
High Mechanical Life: Withstands over 5,000 mating cycles, ensuring reliability in demanding applications.
Low Operating Temperature: Operates efficiently within -55°C to +105°C range.

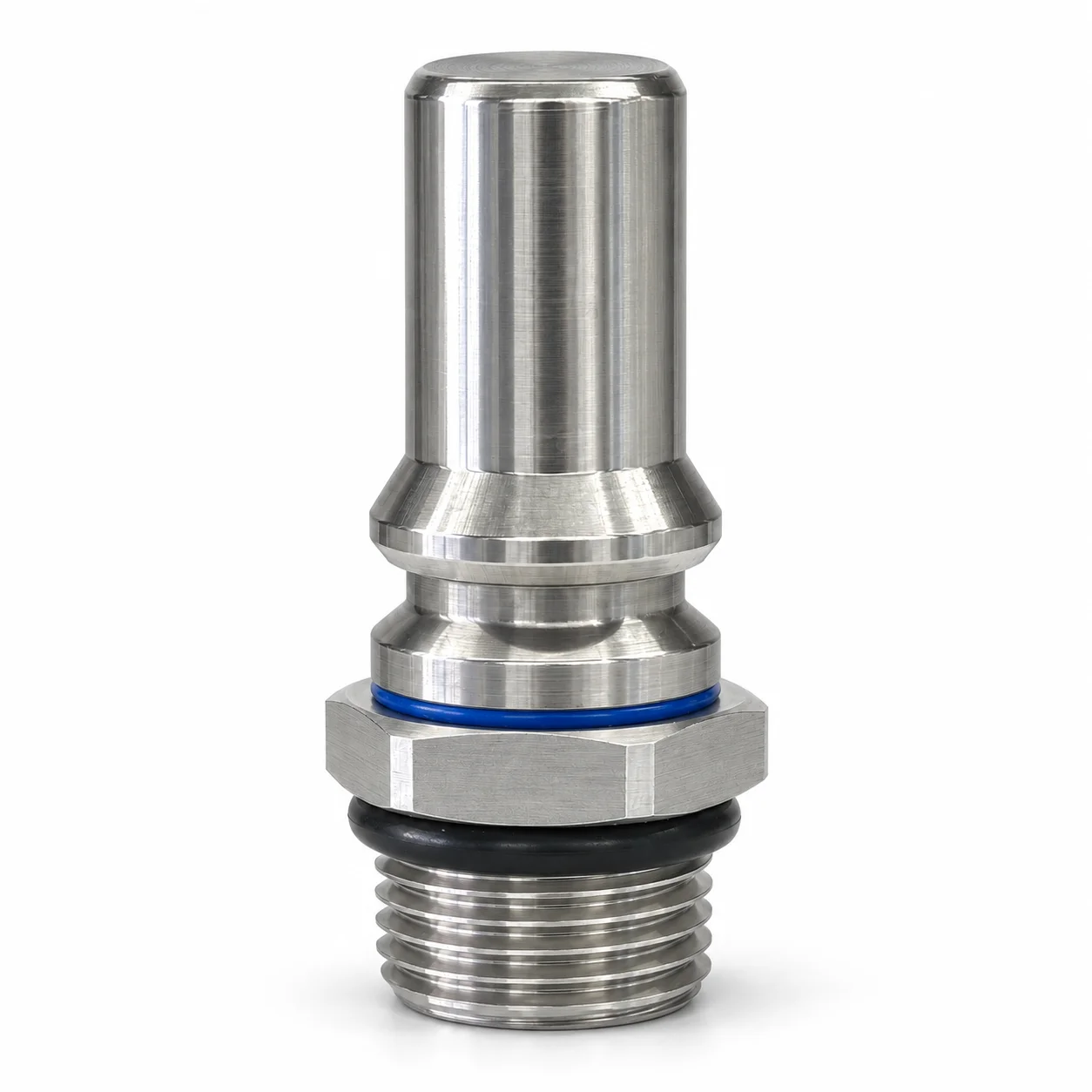

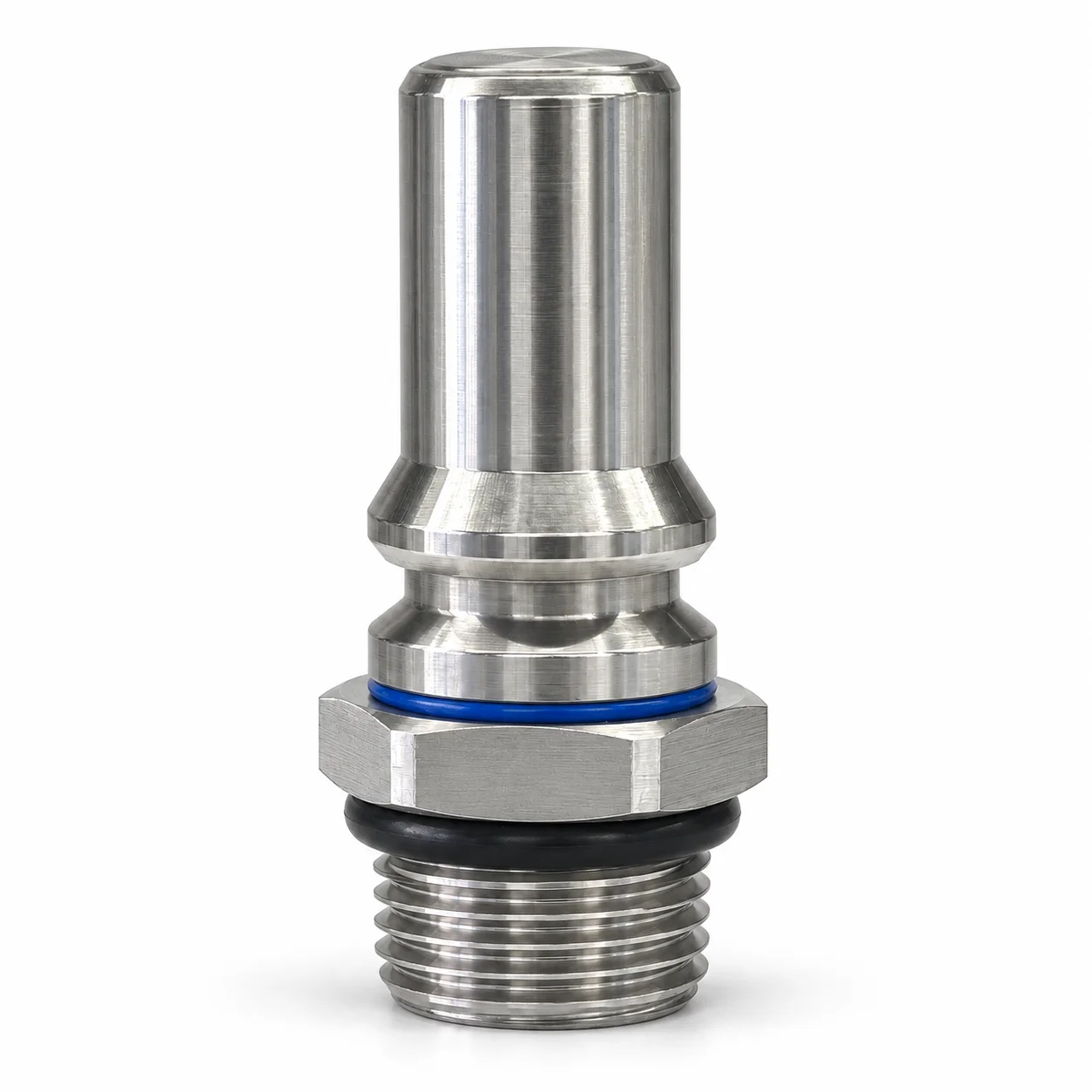

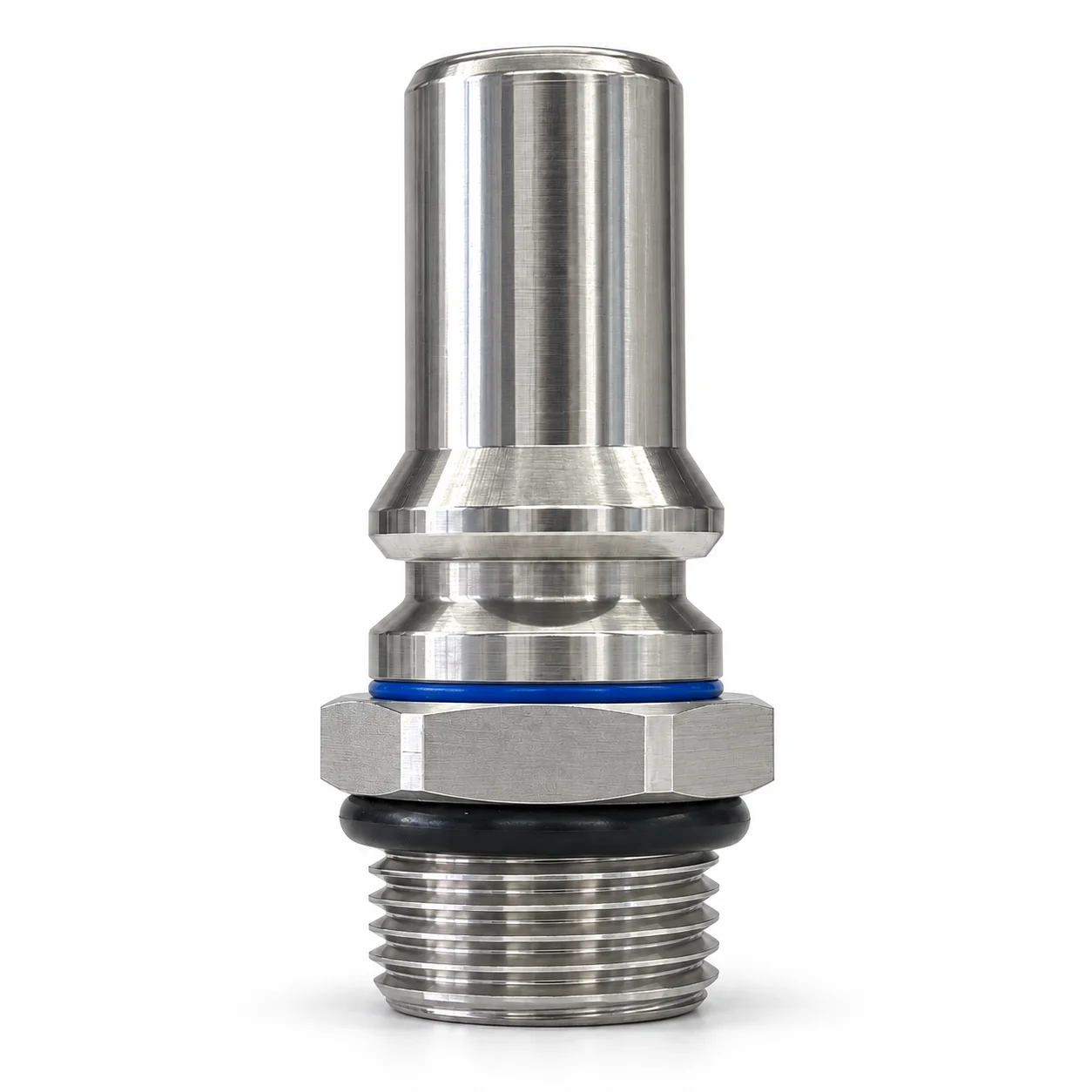

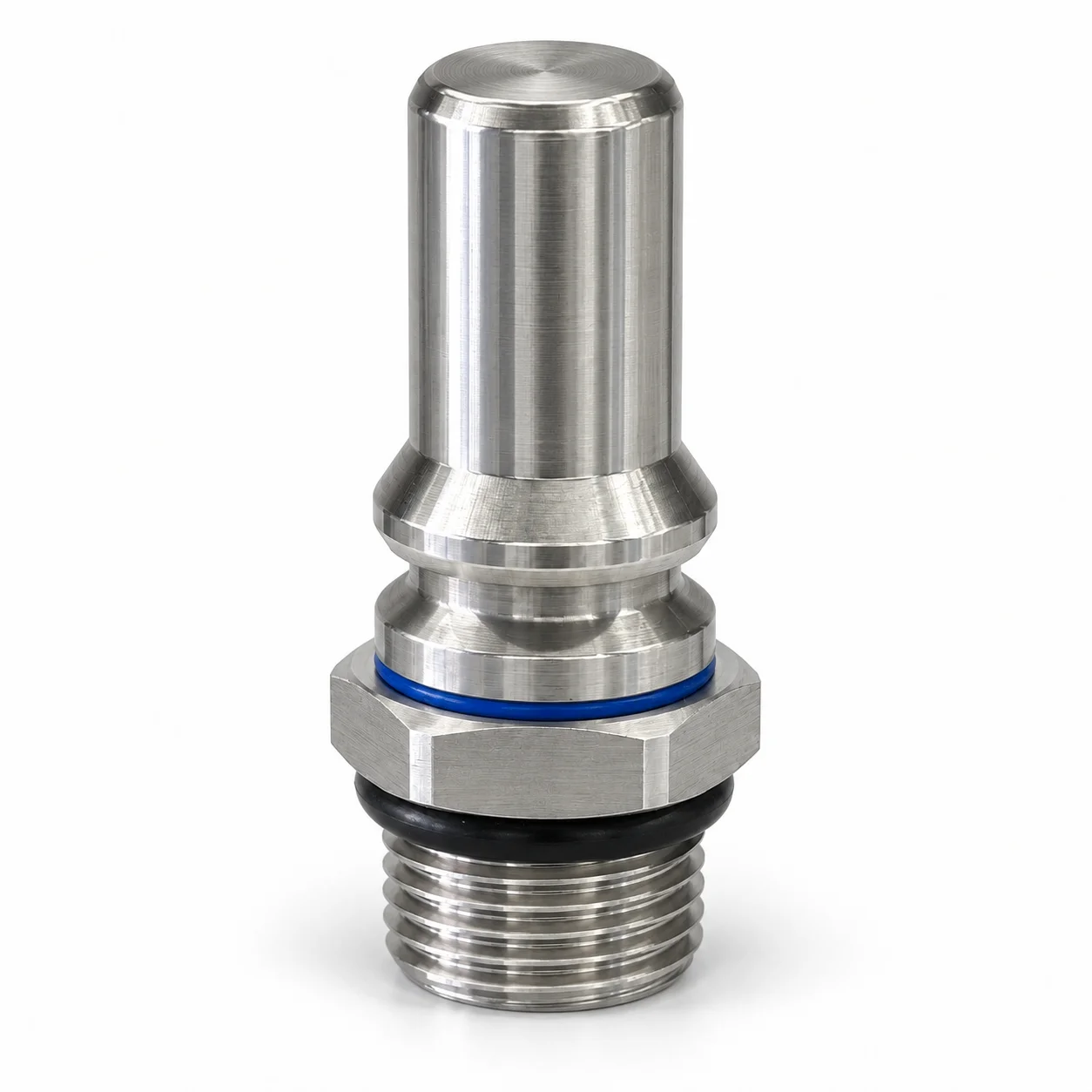

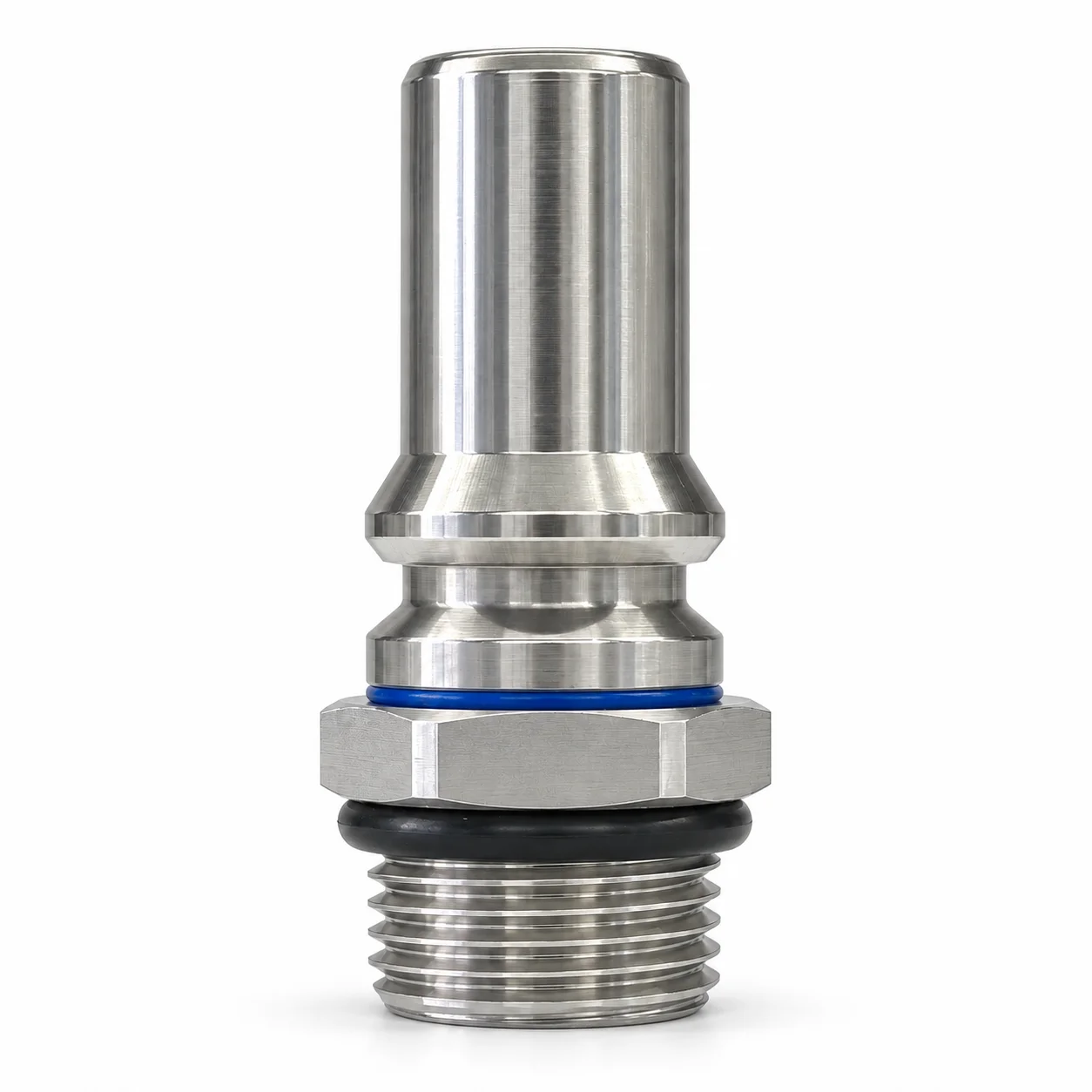

SUS304 Non Spill UQD08 DN16 Male Thread Flat Face Server Rack Data Center Liquid Cooling Quick Disconnect Coupling
Spu:
1601948907103
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd., established in 2025, specializes in high-performance industrial components, serving 50% domestic market and 14% North America. With 51-100 employees, the company focuses on water cooling solutions, offering durable SUS304 stainless steel couplings with 5,000 mating cycles and -55°C to +105°C operating range.
FAQs
What cooling fluids are compatible with this UQD08 quick coupling?

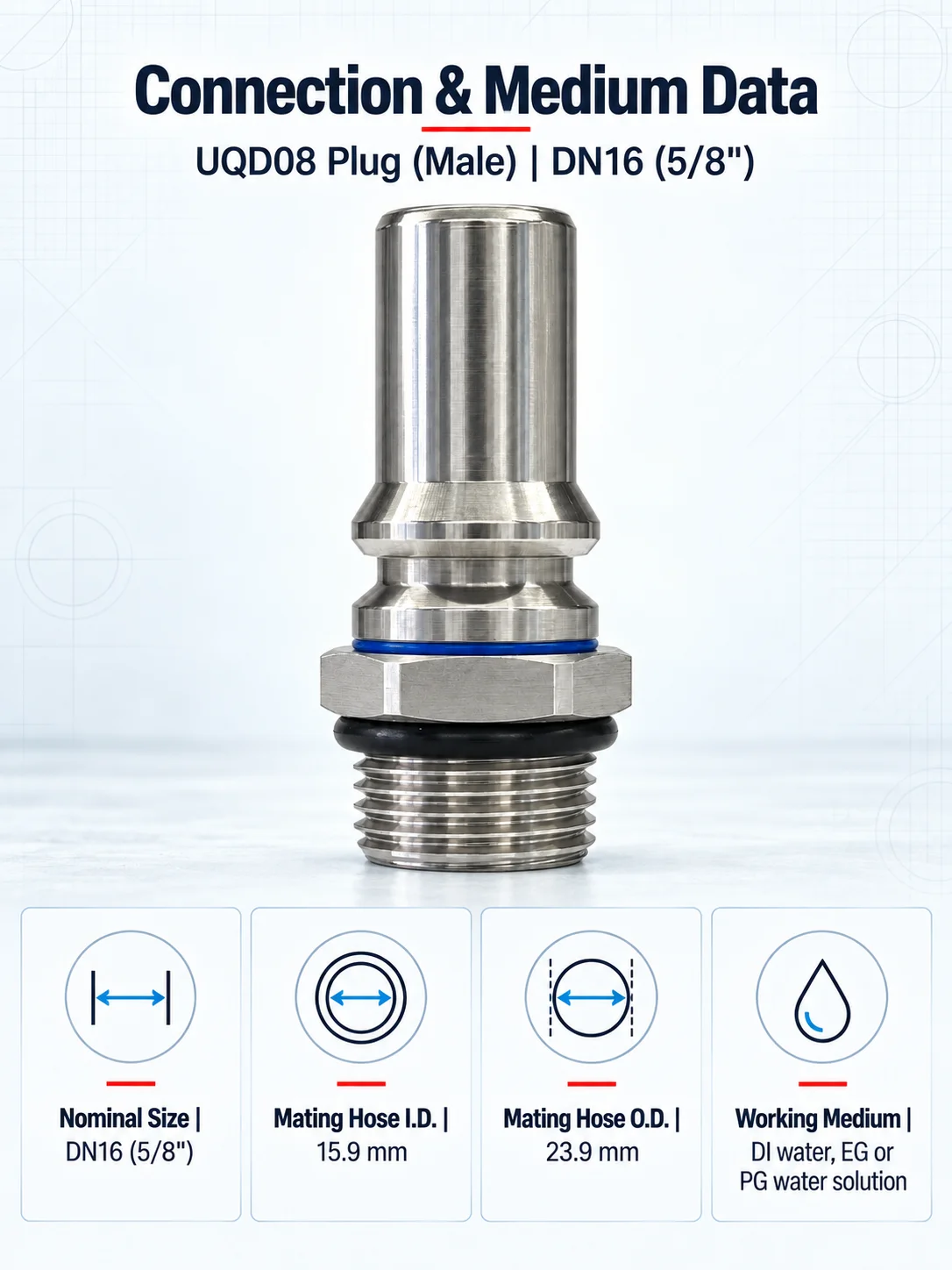

It is fully compatible with deionized water (DI water), ethylene glycol water solution (EG), and propylene glycol water solution (PG), making it ideal for modern server and data center liquid cooling loops.
Does this coupling leak during connection and disconnection?
No. It features a precision flat-face, dry-break design that ensures non-spill operation with zero drips during connection and disconnection, completely protecting sensitive electronic components and server racks from fluid damage.
What materials are used, and what is its mechanical service life?

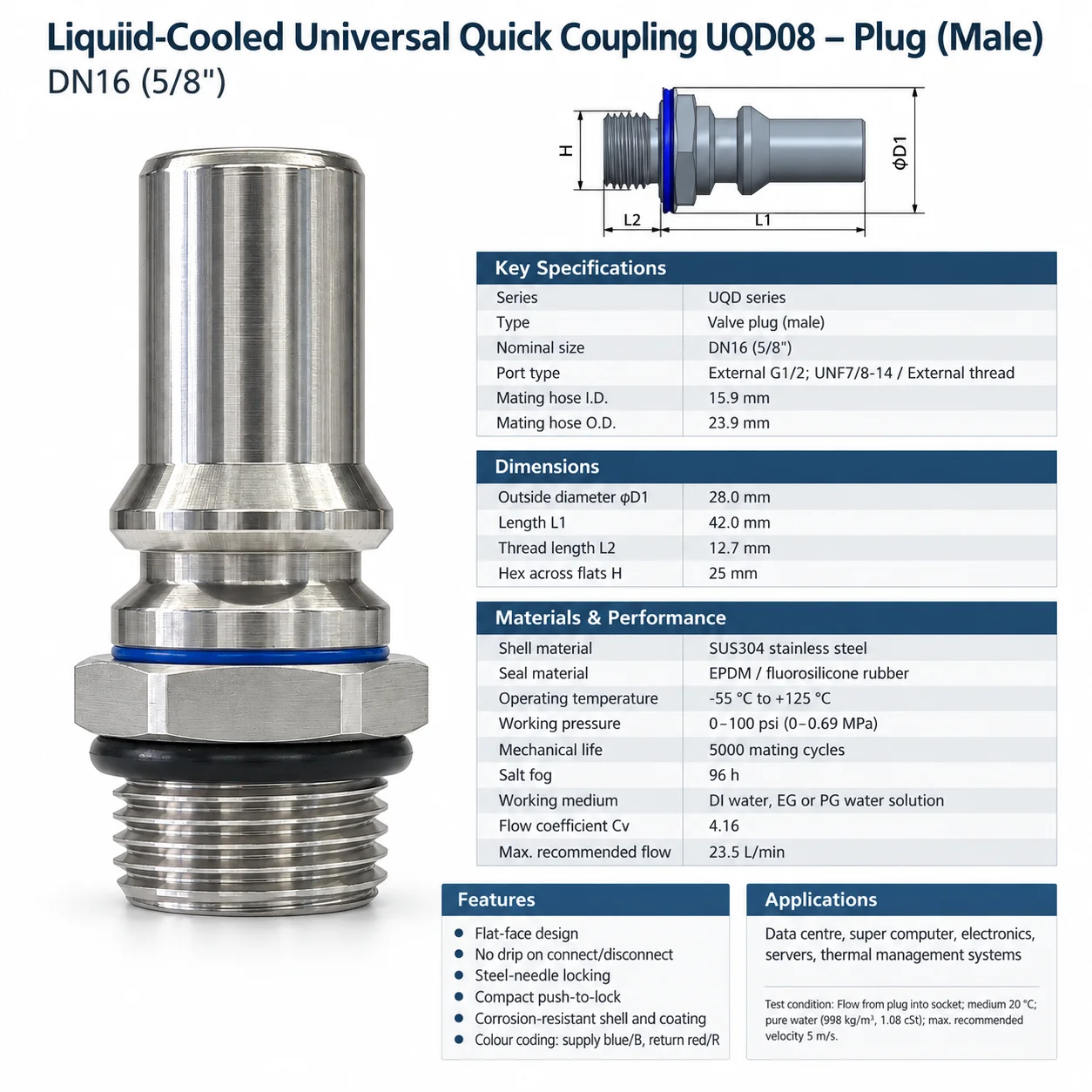

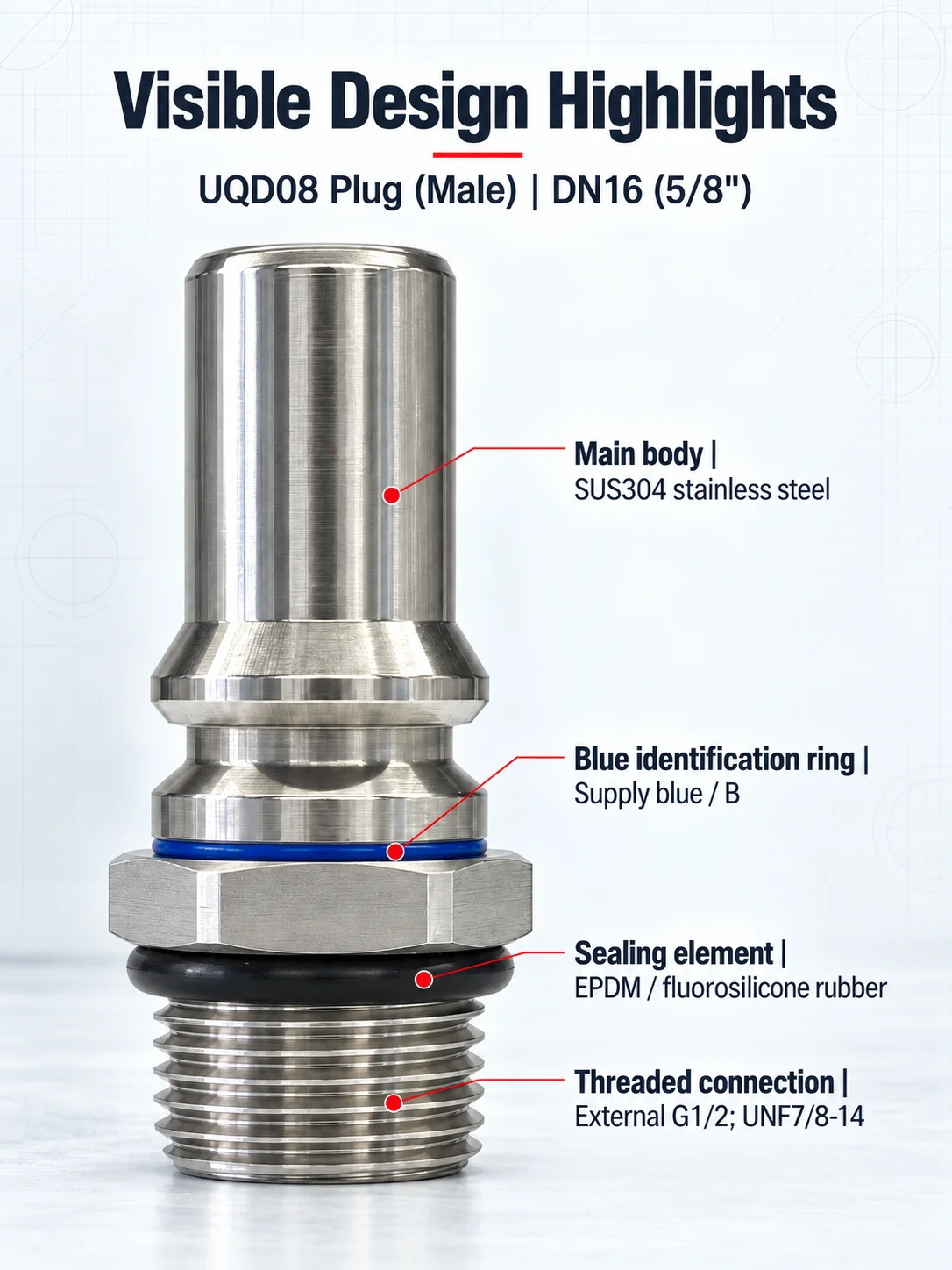

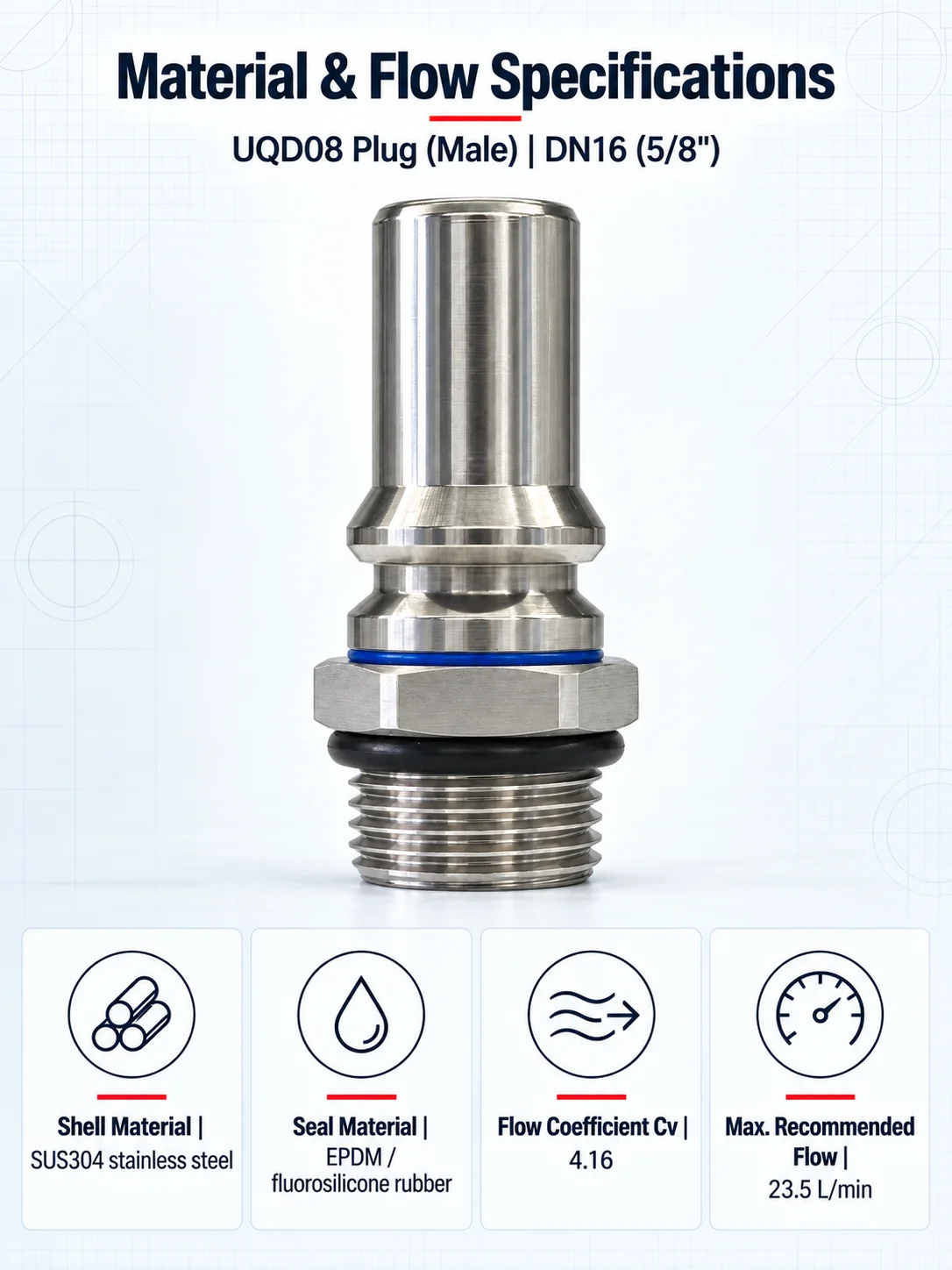

The body is made of premium SUS304 stainless steel with EPDM or fluorosilicone rubber sealing gaskets. It offers exceptional corrosion resistance and is rated for a mechanical life of over 5,000 mating cycles.
What are the flow performance and working pressure ratings?
It delivers a high flow coefficient of Cv 4.16 with a maximum recommended flow rate of 28.5 L/min. The working pressure ranges from 0 to 1.05 MPa, and it operates stably between -55°C and +105°C.
Can I purchase male plugs and female sockets separately or as a pair?
Yes, both options are available. You can purchase male plugs, female sockets, or complete coupled pairs depending on your maintenance or installation needs.
What port thread options are available, and do you support customization?

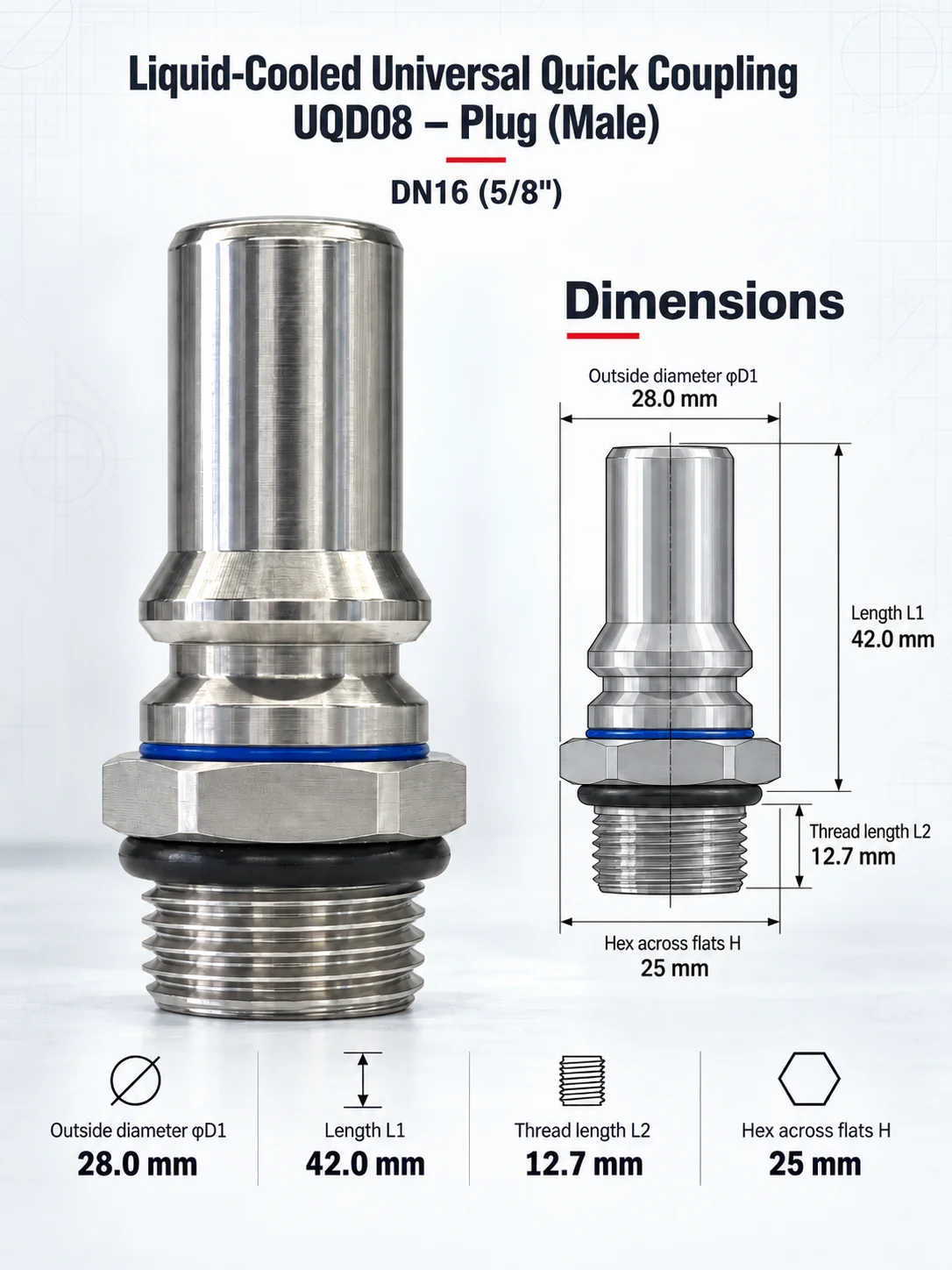

Standard connections include male external thread UNF 7/8-14 and G1/2. We also provide OEM/ODM custom services for specific thread types, matching hose fittings, and custom dimensions based on your technical drawings.
What is your Minimum Order Quantity (MOQ) and production lead time?
Our standard MOQ is 100 pcs, and sample orders for quality testing are welcome. Typical production lead time is 15-25 days, depending on the order volume and customization requirements.
Which industries and applications are best suited for this connector?
It is specifically engineered for high-density data centers, AI computing clusters, supercomputers, server rack cold plates, power electronics, and industrial thermal management systems.
