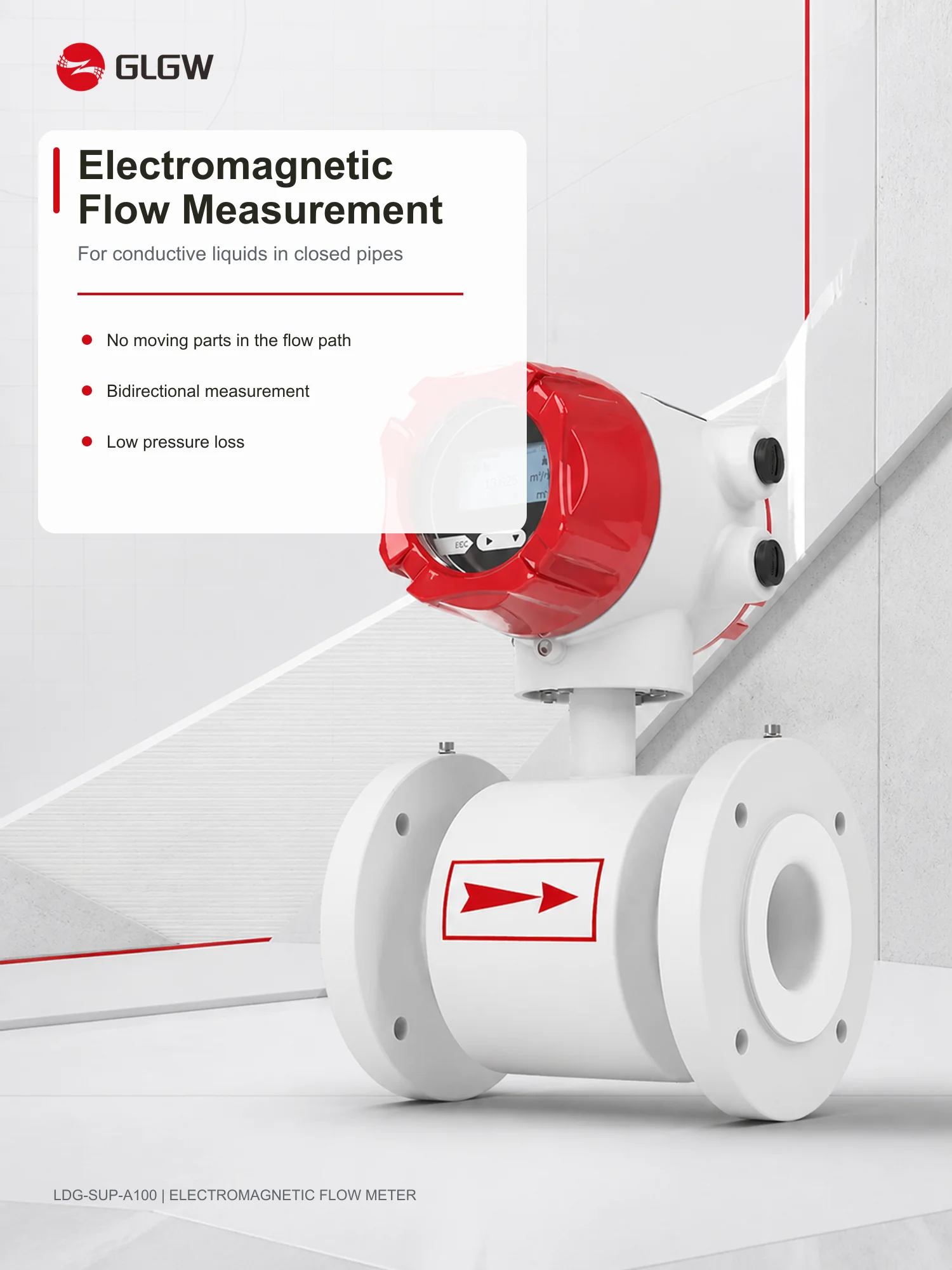

High Accuracy & Bi-Directional Measurement: Grade 0.5 (±0.5%) standard precision (±0.3% high-precision optional) based on Faraday's electromagnetic induction principle; features bidirectional flow monitoring with zero moving parts, zero wear, and ultra-low pressure loss.

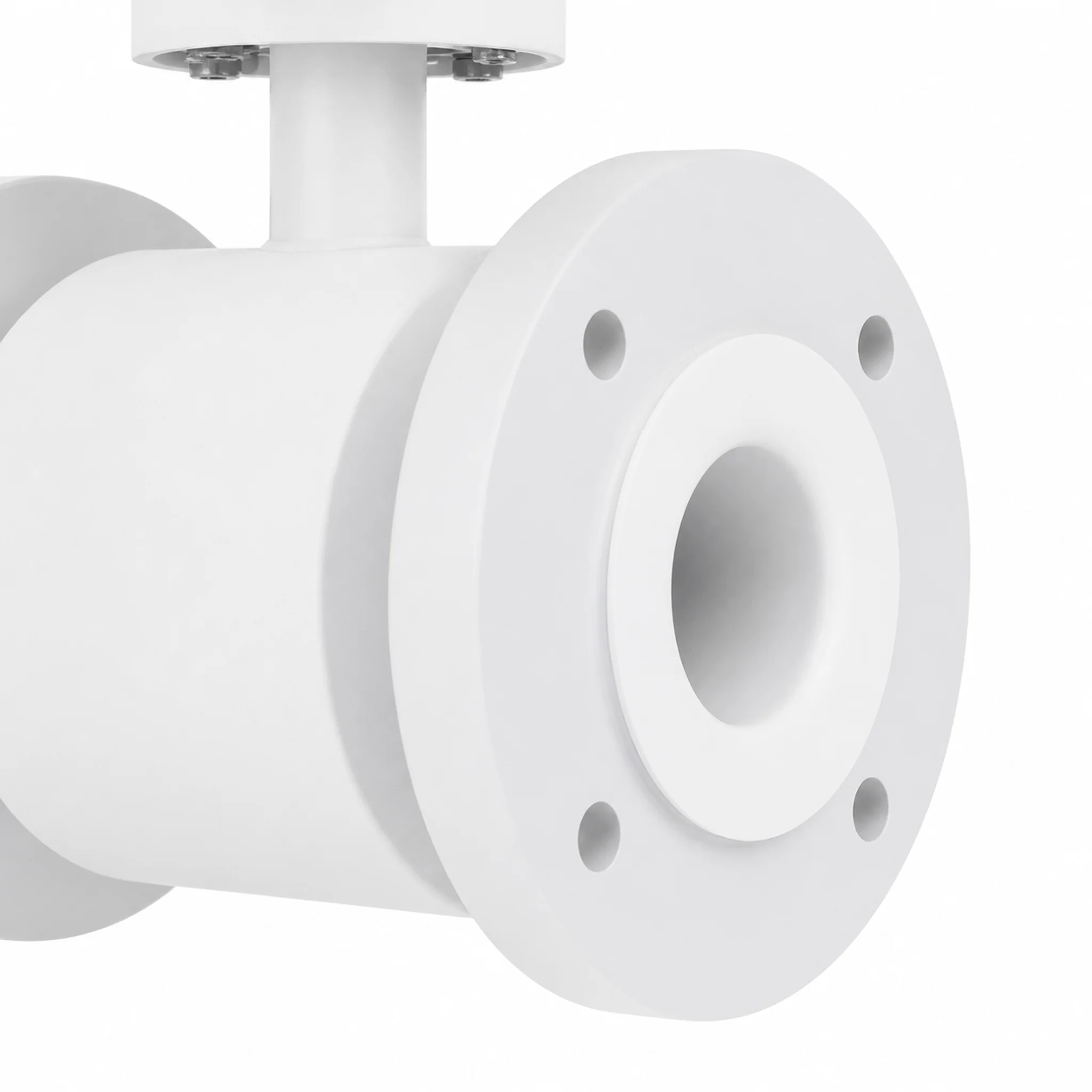

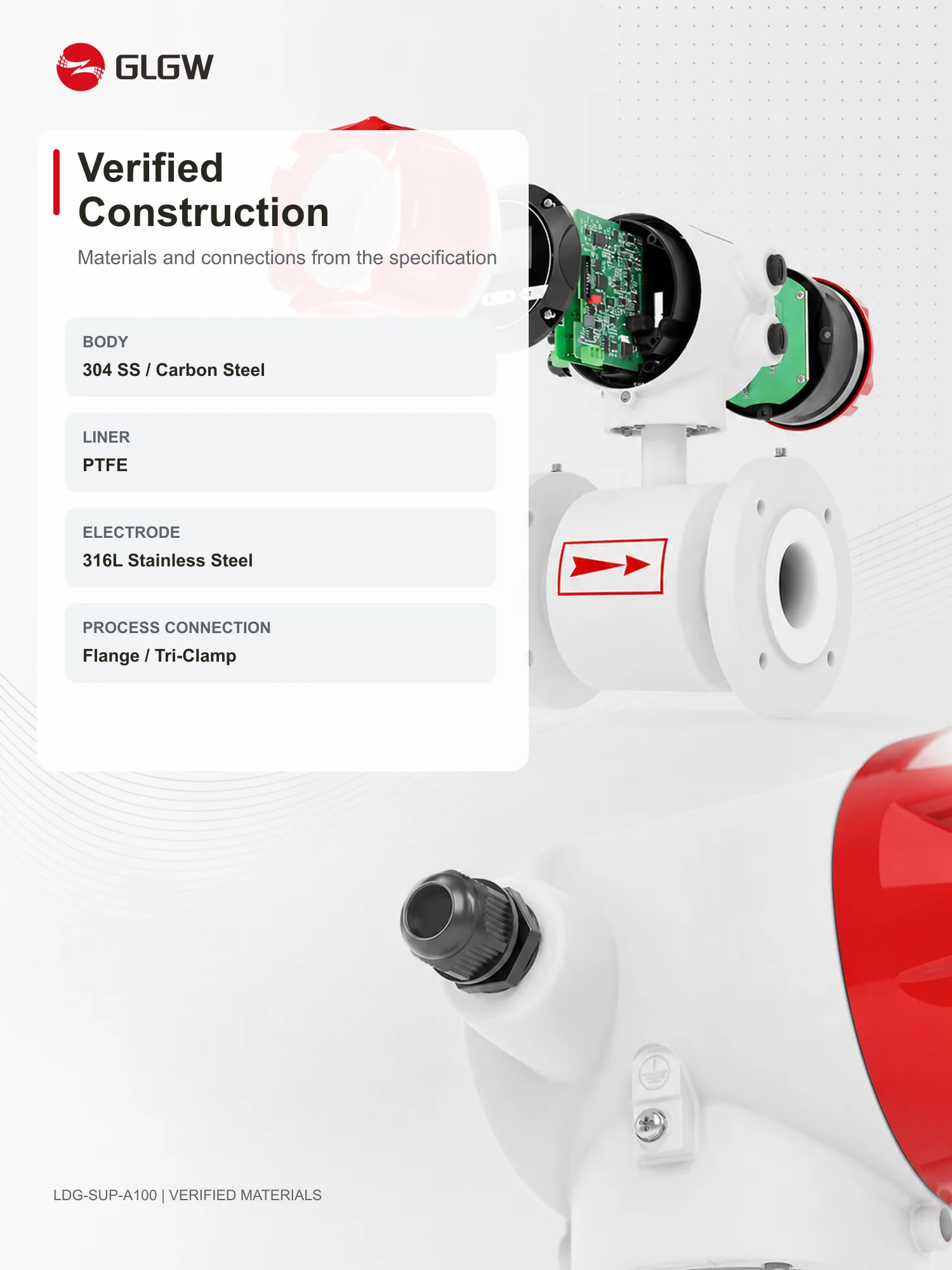

Corrosion-Resistant & Heavy-Duty Materials: Equipped with wear-resistant PTFE lining (-10°C to +120°C) and 316L stainless steel electrodes (Hastelloy/Ti optional), encapsulated in a robust 304SS/Carbon Steel body for harsh conductive liquid and chemical environments.

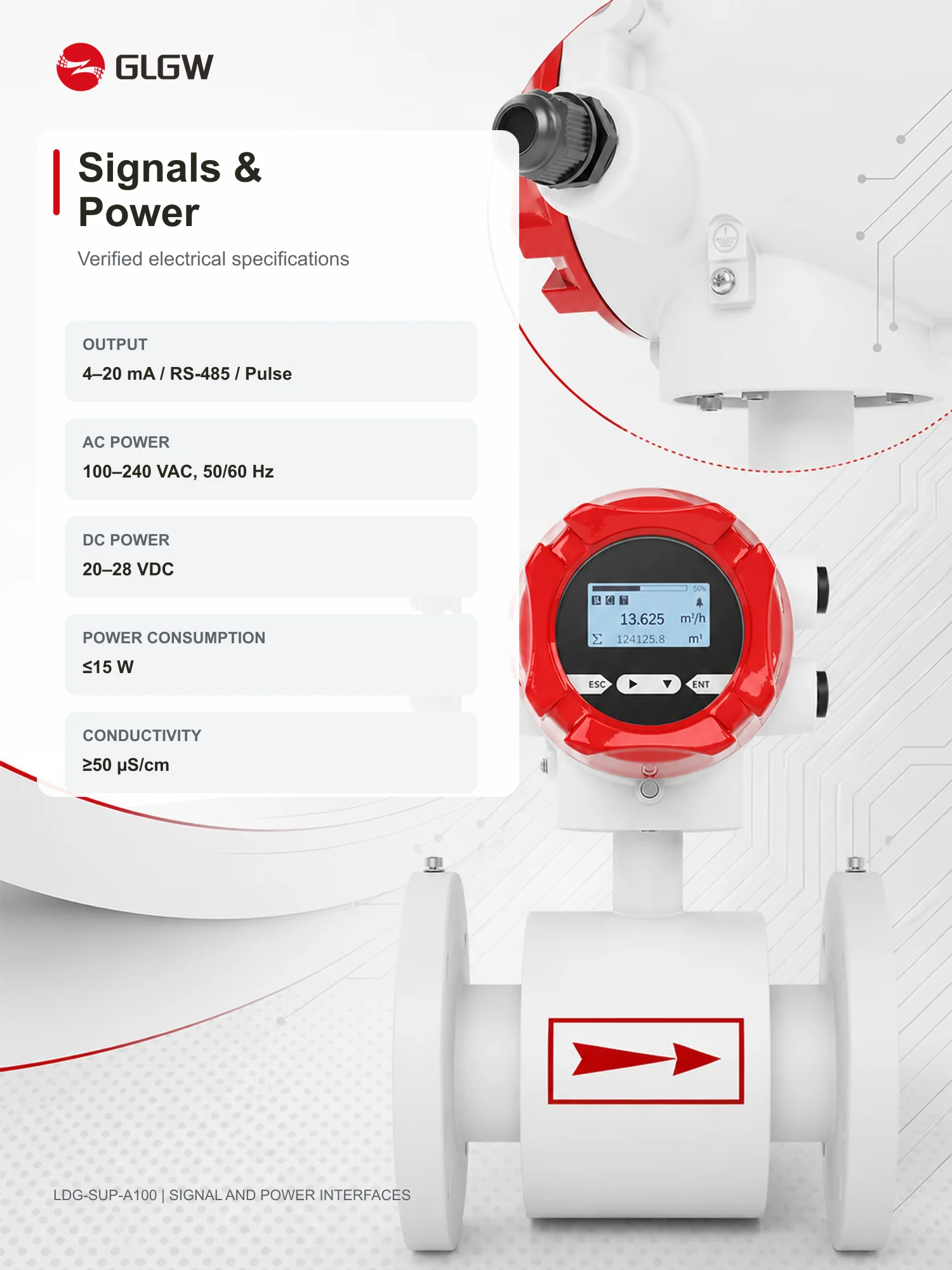

Versatile Output & Smart Modbus Connectivity: Features standard 4-20mA analog output, RS-485 Modbus-RTU communication, and flexible pulse/frequency output (active/passive switchable via DIP switch) for effortless integration with PLC, DCS, and SCADA systems.

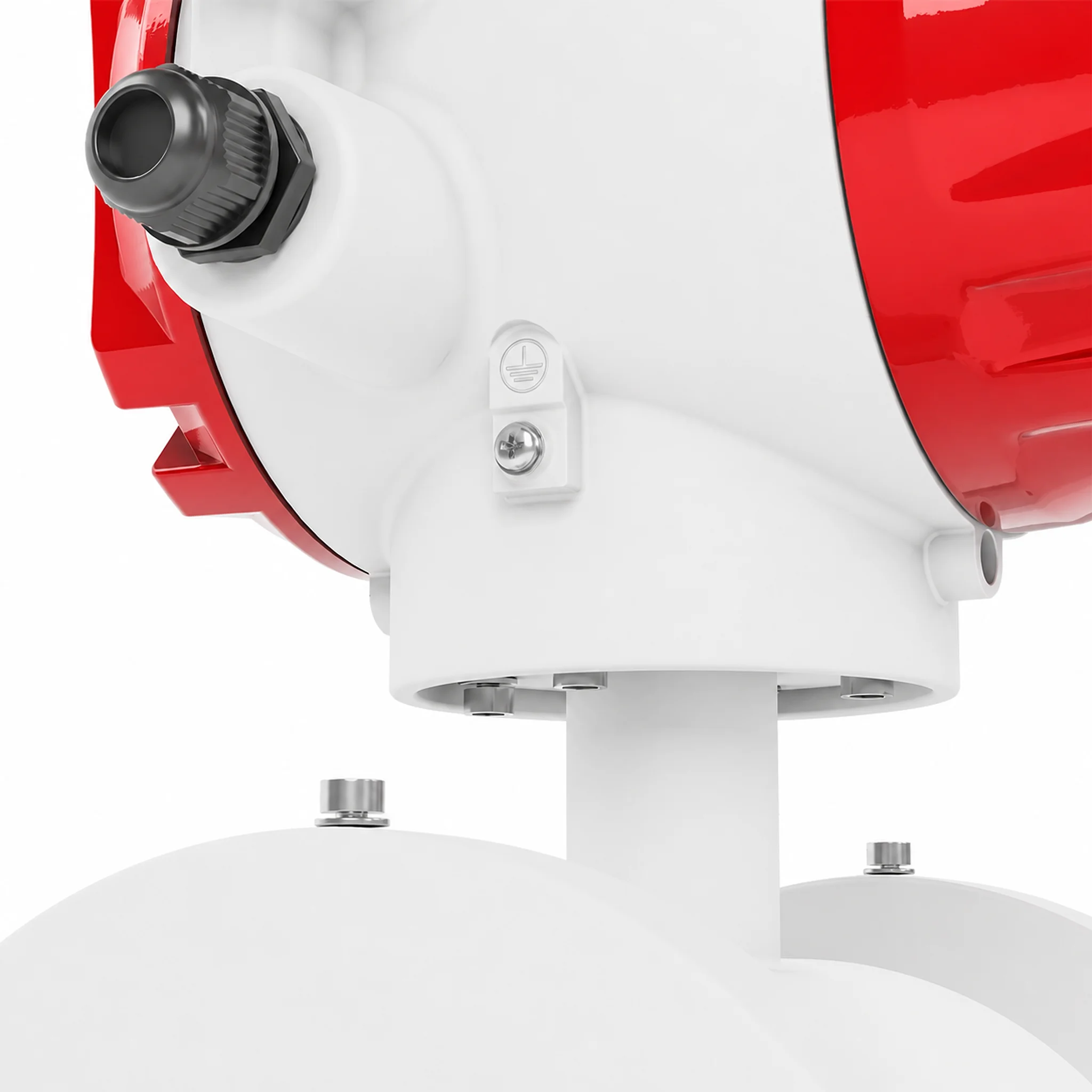

Industrial-Grade Reliability & IP65/IP68 Ingress Protection: Rugged die-cast aluminum converter housing with IP65 (compact) and IP68 submersible (remote) options; tested to withstand 1.6 MPa pressure, 72h neutral salt spray, and stringent EMC/ESD anti-interference standards.

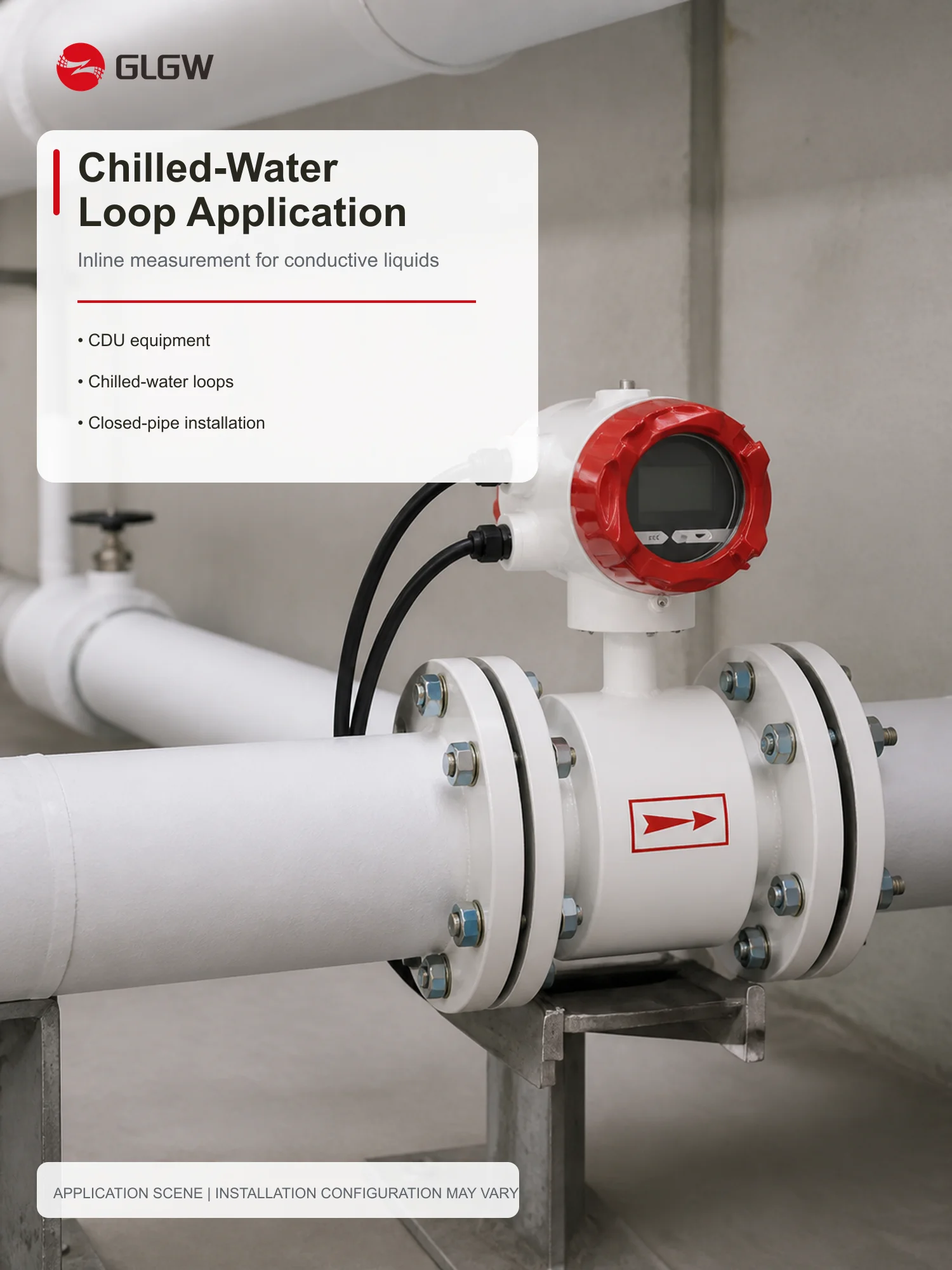

Broad Compatibility & Application Versatility: Supports pipe sizes from DN25 to DN150 (expandable DN10-DN300) with JB/T81 / GB/T9124 flanges or ISO2852 sanitary clamp connections; widely applied in data center liquid cooling (CDU & loops), HVAC chilled water, chemical dosing, and industrial water treatment.

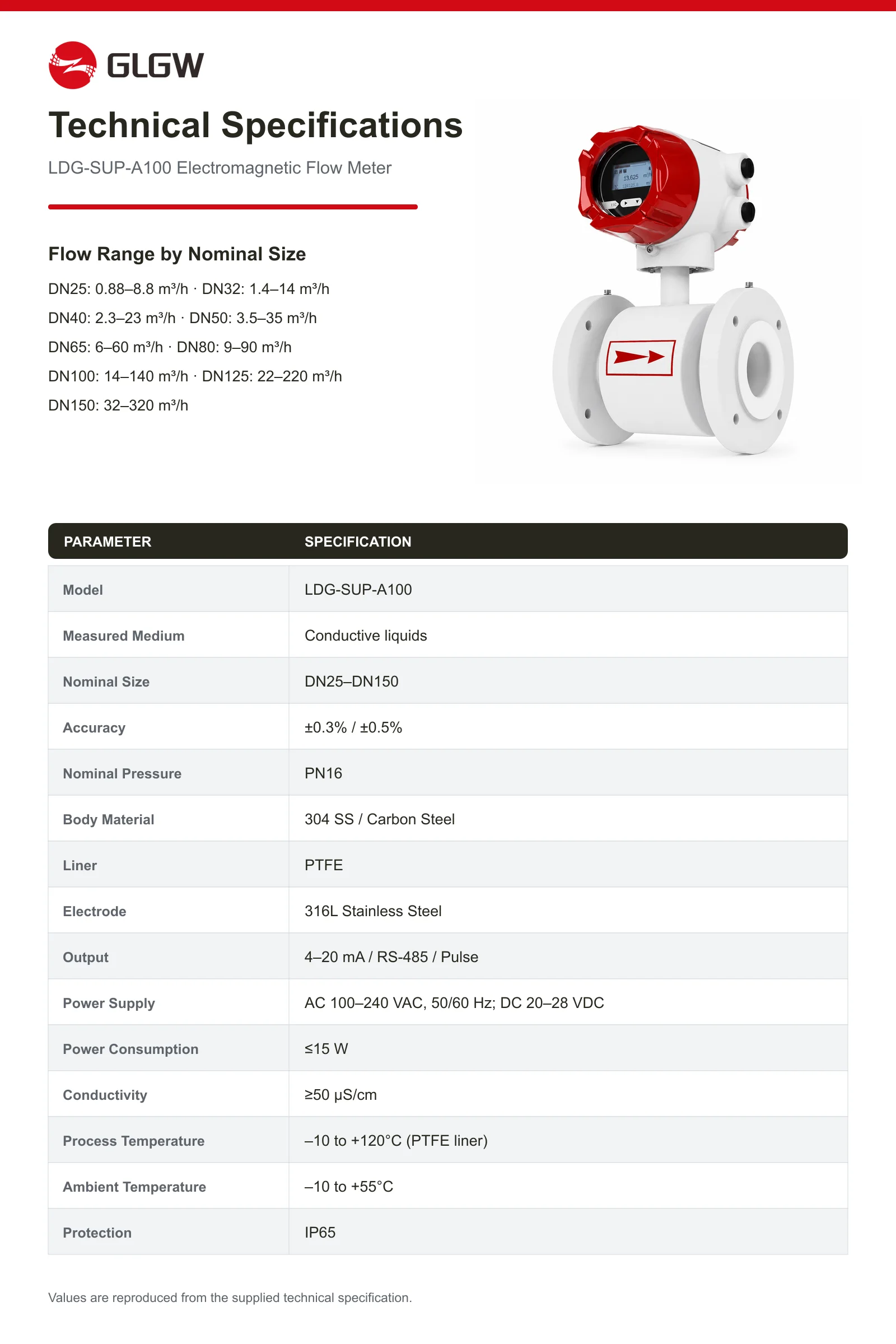

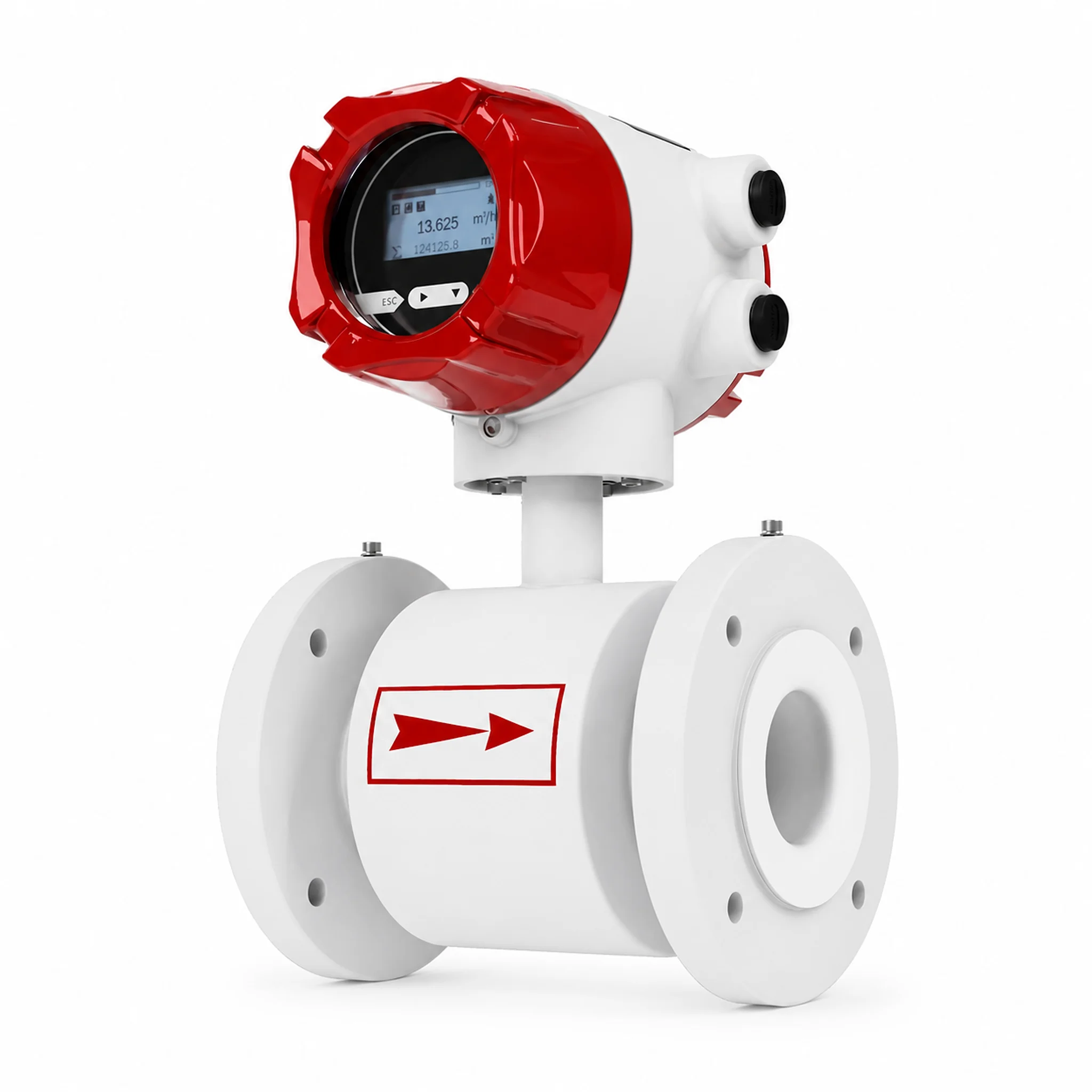

Smart Electromagnetic Flow Meter DN25-DN300 with 4-20mA HART RS485 Modbus Flanged Magnetic Water Flowmeter LDG-SUP-A100
Spu:
1601936114959
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd., established in 2025, specializes in electromagnetic flow meters with OEM/ODM services. The company offers high-precision, corrosion-resistant flow solutions for diverse industrial applications, supported by robust quality control and global market distribution.
FAQs
What types of fluids can the LDG-SUP-A100 electromagnetic flow meter measure?
It can measure any conductive liquid with a conductivity of ≥ 50 μS/cm, including cooling water, industrial wastewater, acids, and chemical solutions. With a PTFE lining and 316L/Hastelloy electrodes, it offers excellent corrosion resistance. Note: It cannot measure non-conductive fluids such as oil, gas, or ultra-pure/deionized water.
What are the straight pipe run requirements for accurate installation?
To ensure Grade 0.5 (±0.5%) measurement accuracy, we recommend maintaining at least 10D (10x pipe diameter) of straight pipe upstream and at least 5D downstream of the flow meter. Please ensure the measuring pipe is always fully filled with liquid and avoid installing it at the highest point of piping to prevent air bubbles.
What output signals and communication protocols are supported?
The meter comes standard with 4-20mA analog output, RS-485 serial communication (Modbus-RTU protocol), and configurable pulse/frequency output. Active and passive pulse outputs can be easily toggled via the internal DIP switch, enabling seamless integration with PLC, DCS, and SCADA systems.
Can this flow meter be installed underground, outdoor, or submerged in water?
Yes. We offer both compact (integrated) and remote (split) designs. The standard compact version has IP65 protection for indoor/outdoor use, while the remote sensor option features IP68 submersible protection (up to 3 meters underwater), making it ideal for flooded inspection wells and underground installations.
Do you support customized connection standards, pipe sizes, or electrode materials?
Yes, full OEM/ODM customization is available. We provide sizes from DN10 to DN300 with flange standards including ANSI B16.5, JIS B2220, GB/T9124, and JB/T81, as well as ISO2852 sanitary tri-clamps. Electrode materials can also be upgraded to Hastelloy B/C, Titanium (Ti), or Tantalum (Ta) for highly corrosive chemicals.
