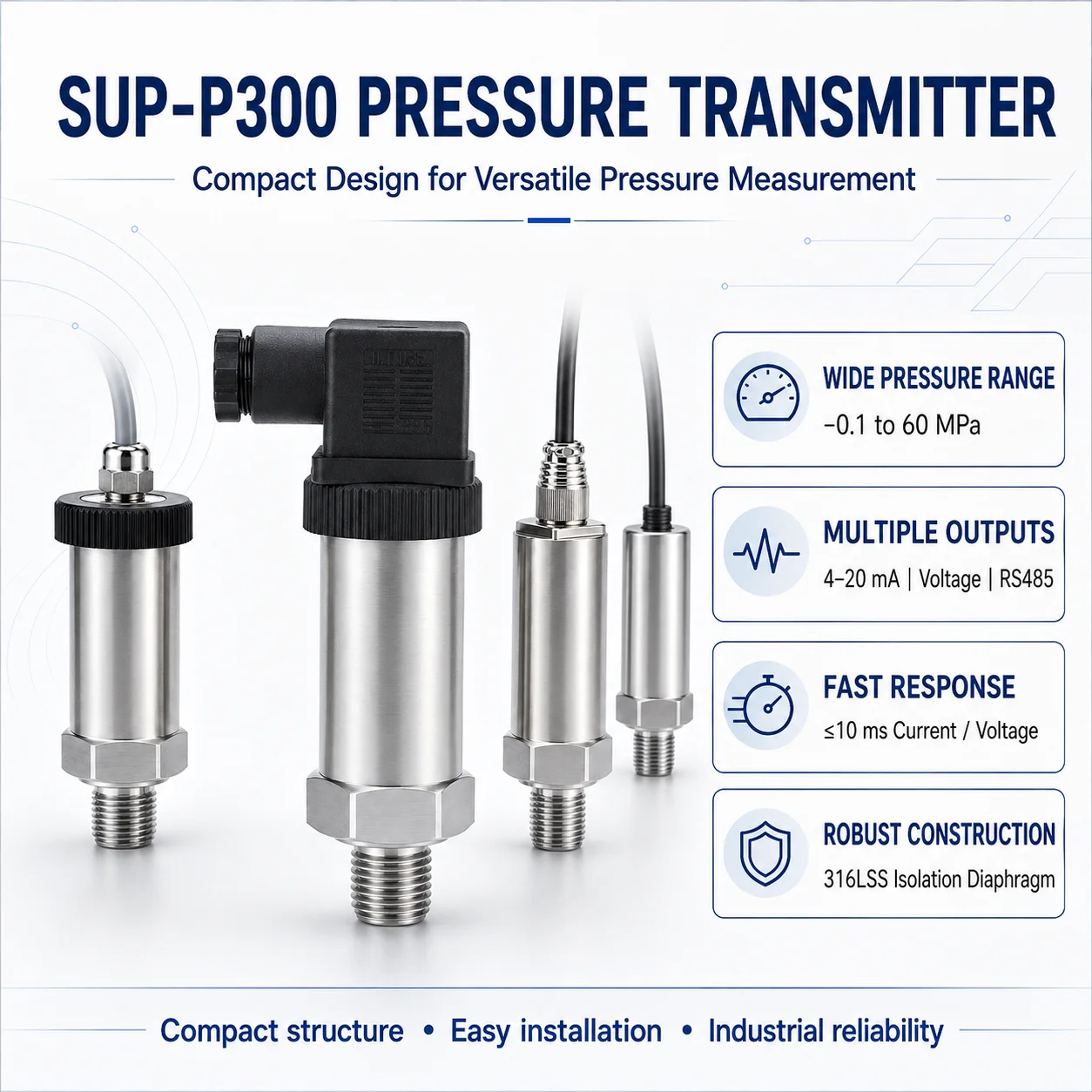

"SUP-P300 is a compact diffused-silicon pressure transmitter designed for universal industrial pressure measurement. It converts pressure into standard current, voltage, or RS485 signals for PLCs, controllers, indicators, and data-acquisition systems.

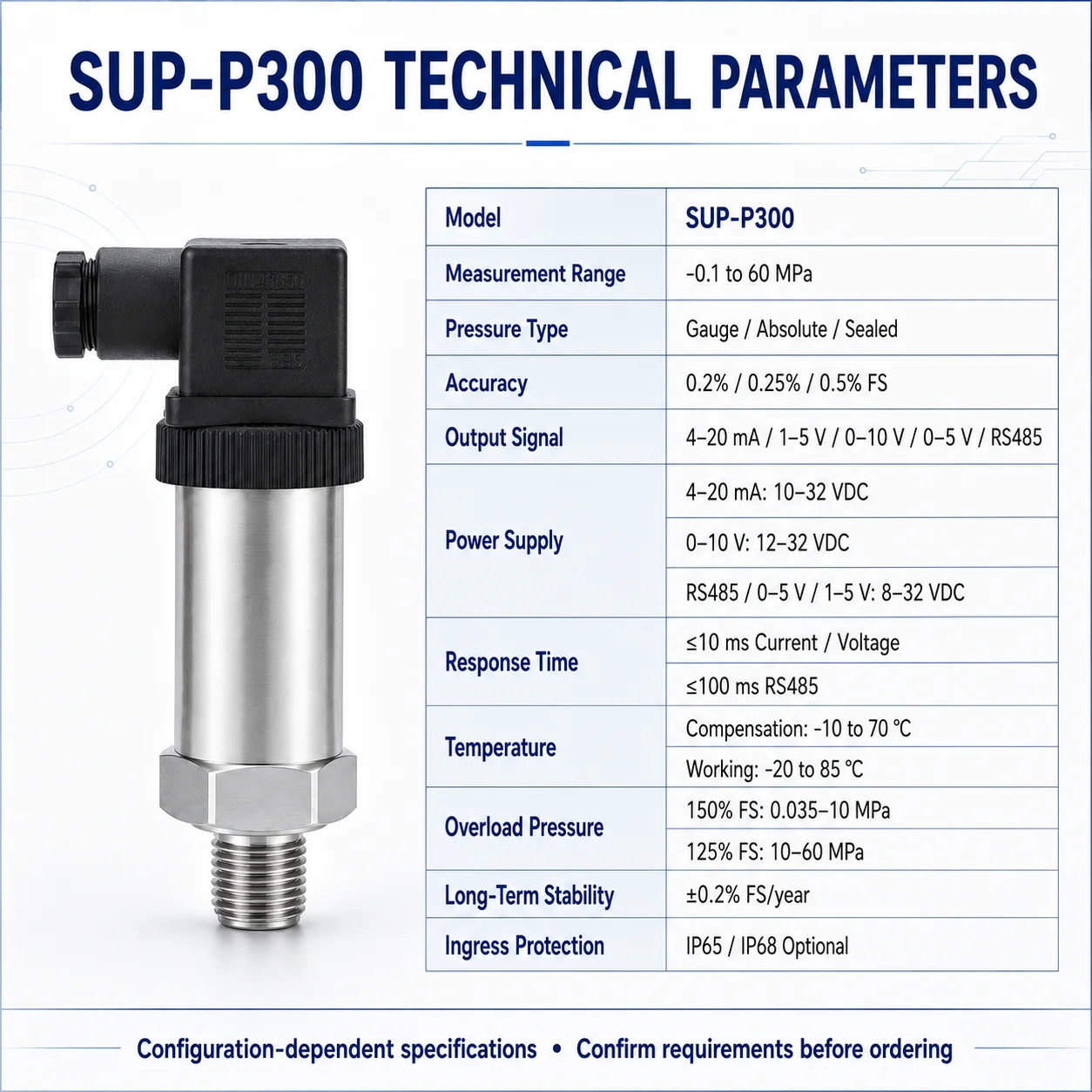

Broad configurable range from -0.1 MPa to 60 MPa.
Accuracy options of 0.2%FS, 0.25%FS, or 0.5%FS, subject to range and order code.
Multiple outputs: 4-20 mA, voltage signals, and RS485.
DIN, M12, and direct-cable electrical connections with IP65 or supported IP68 configurations.

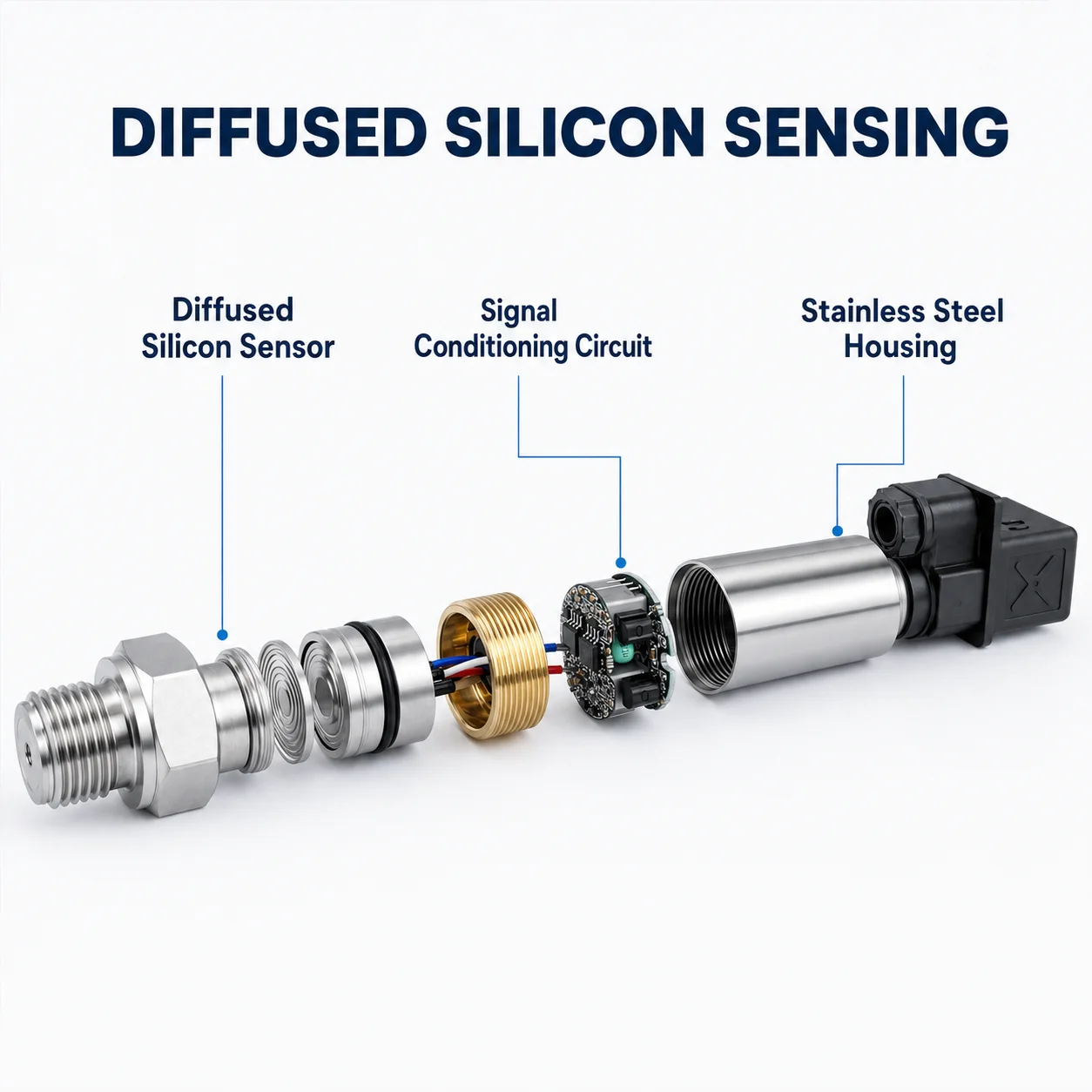

316L isolation diaphragm with 304SS or 316LSS housing options.

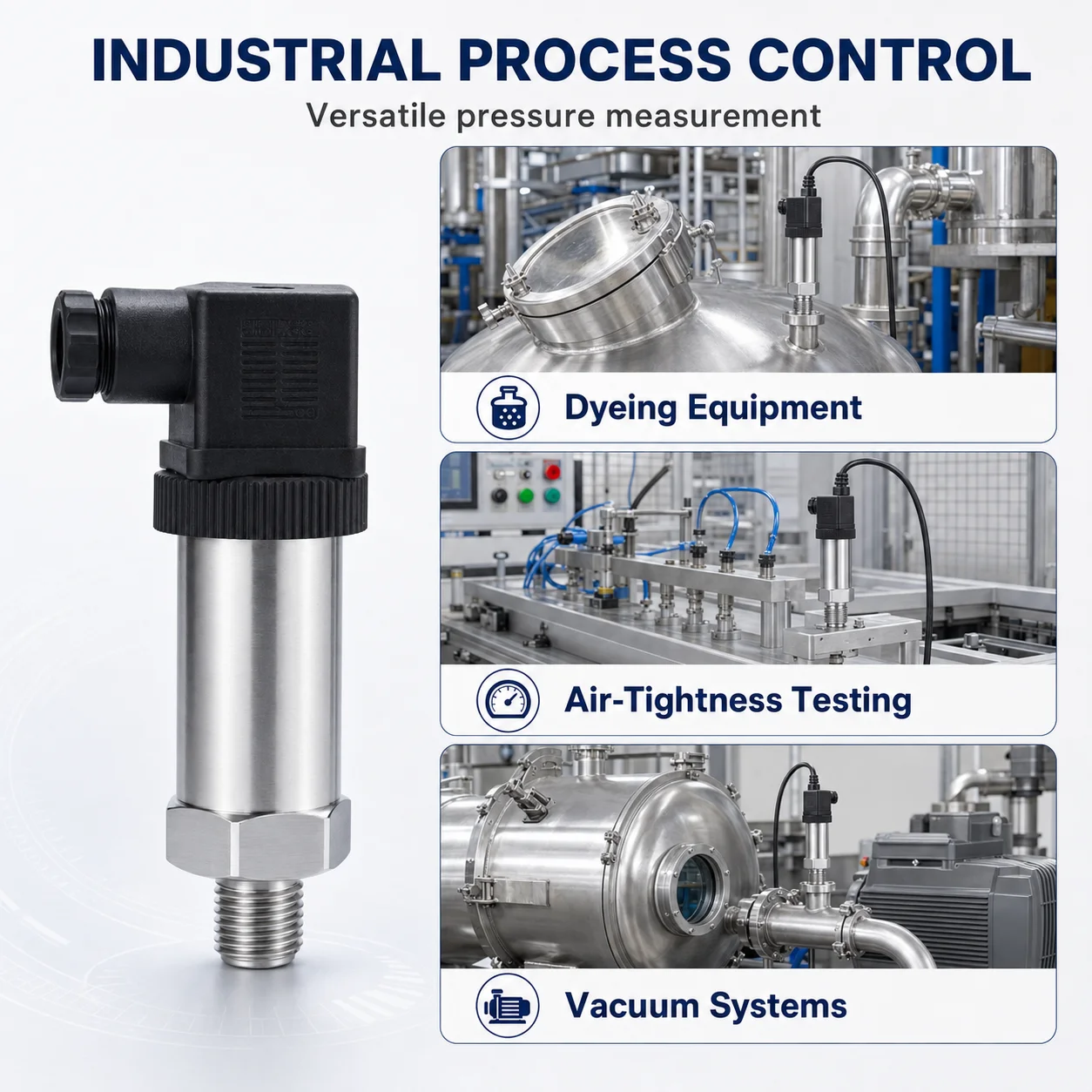

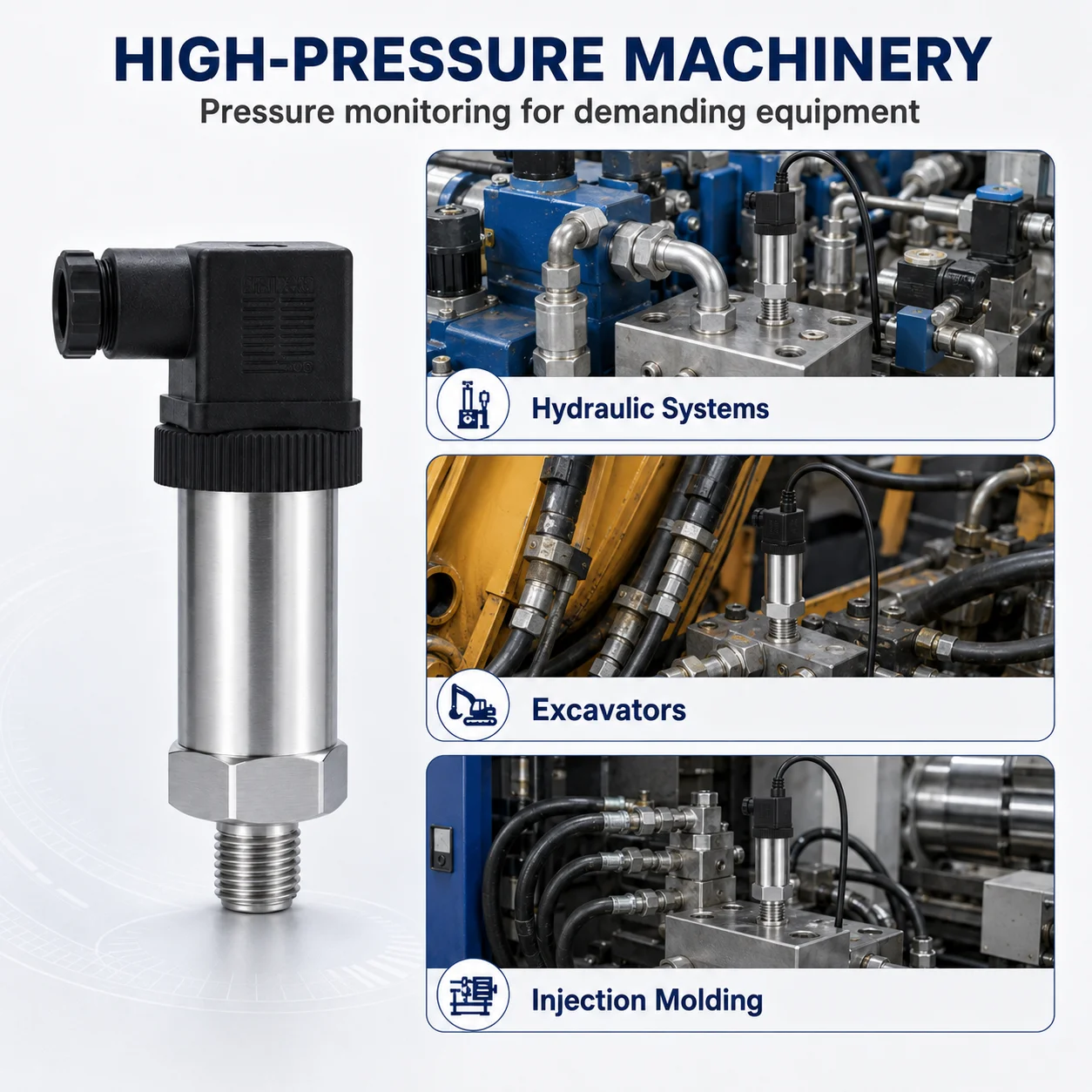

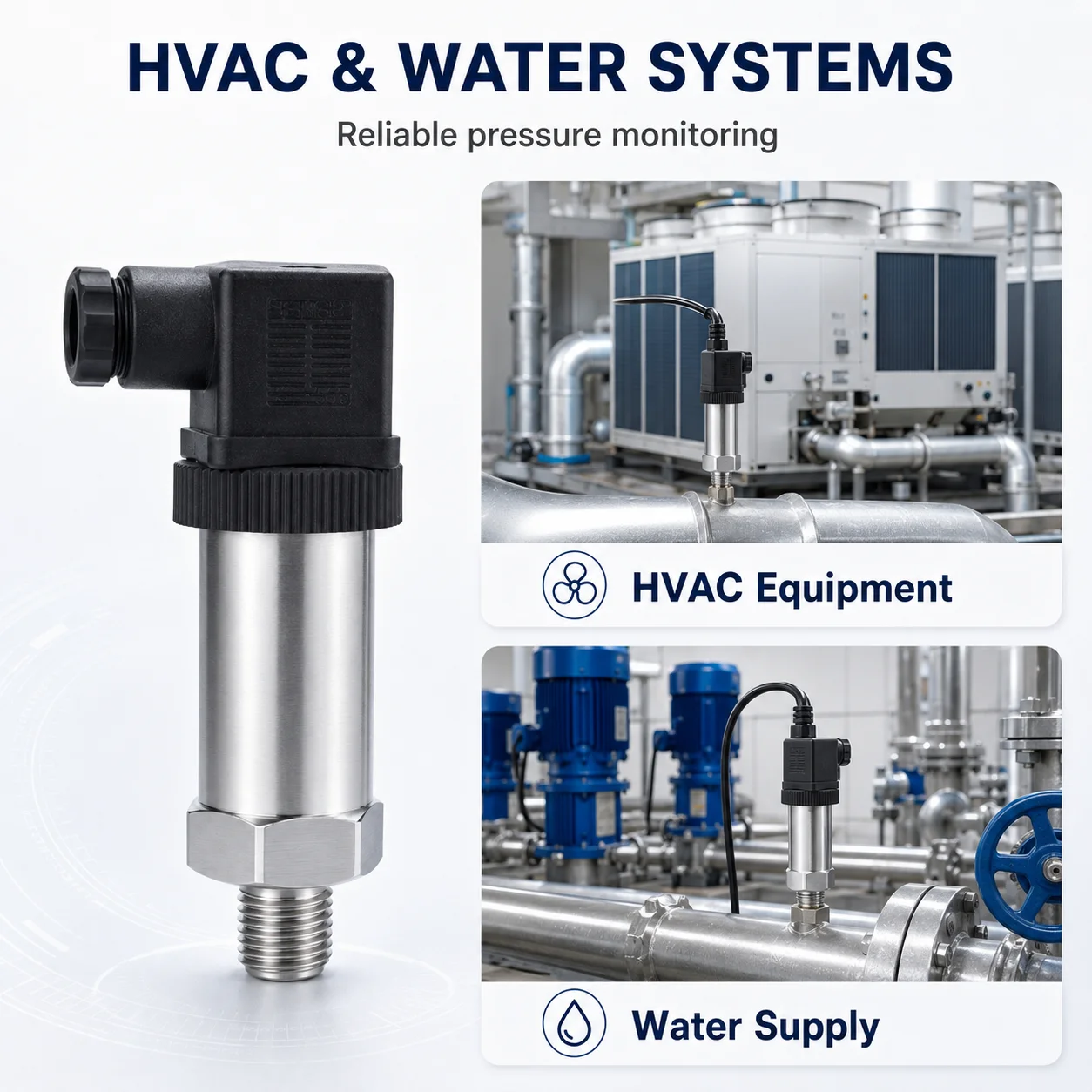

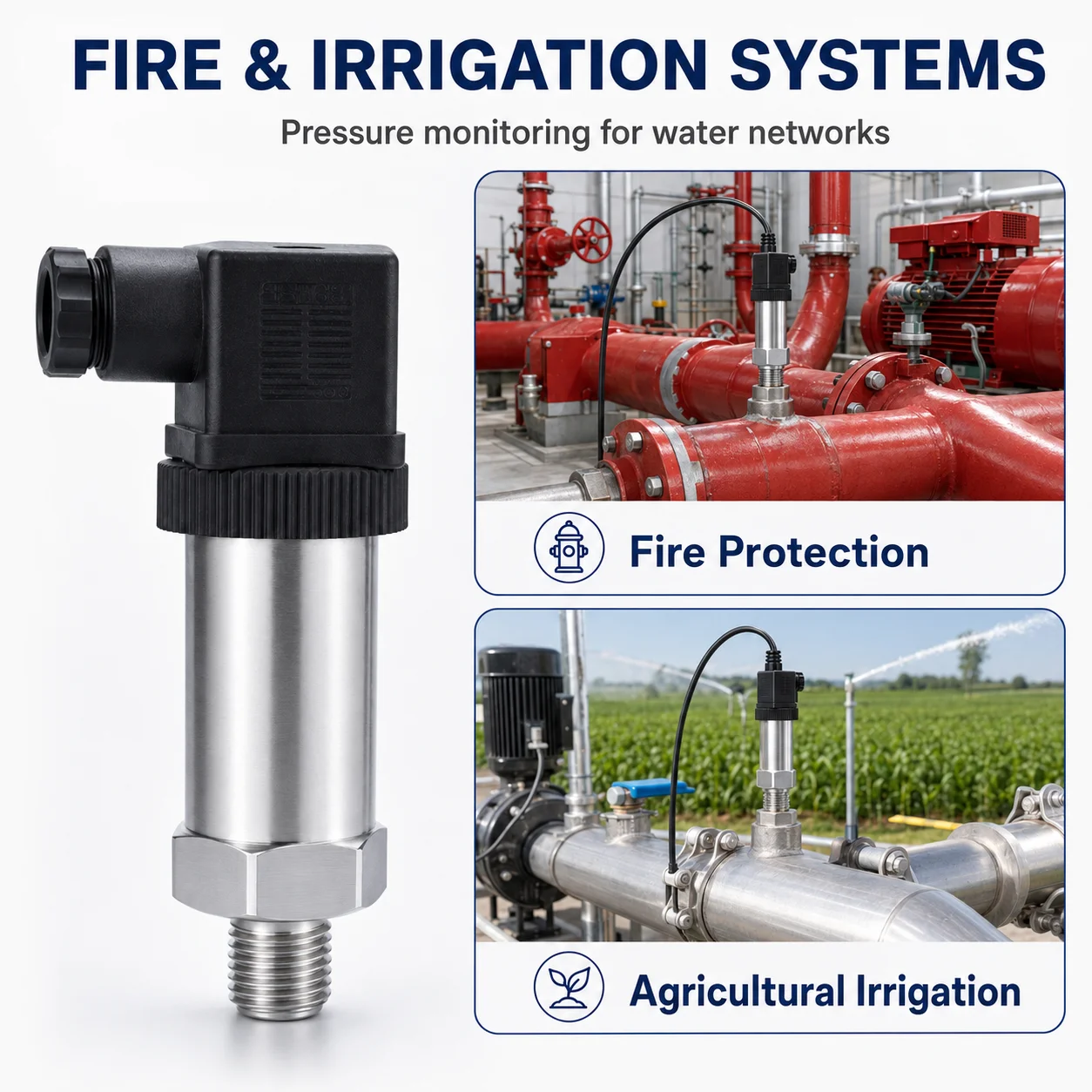

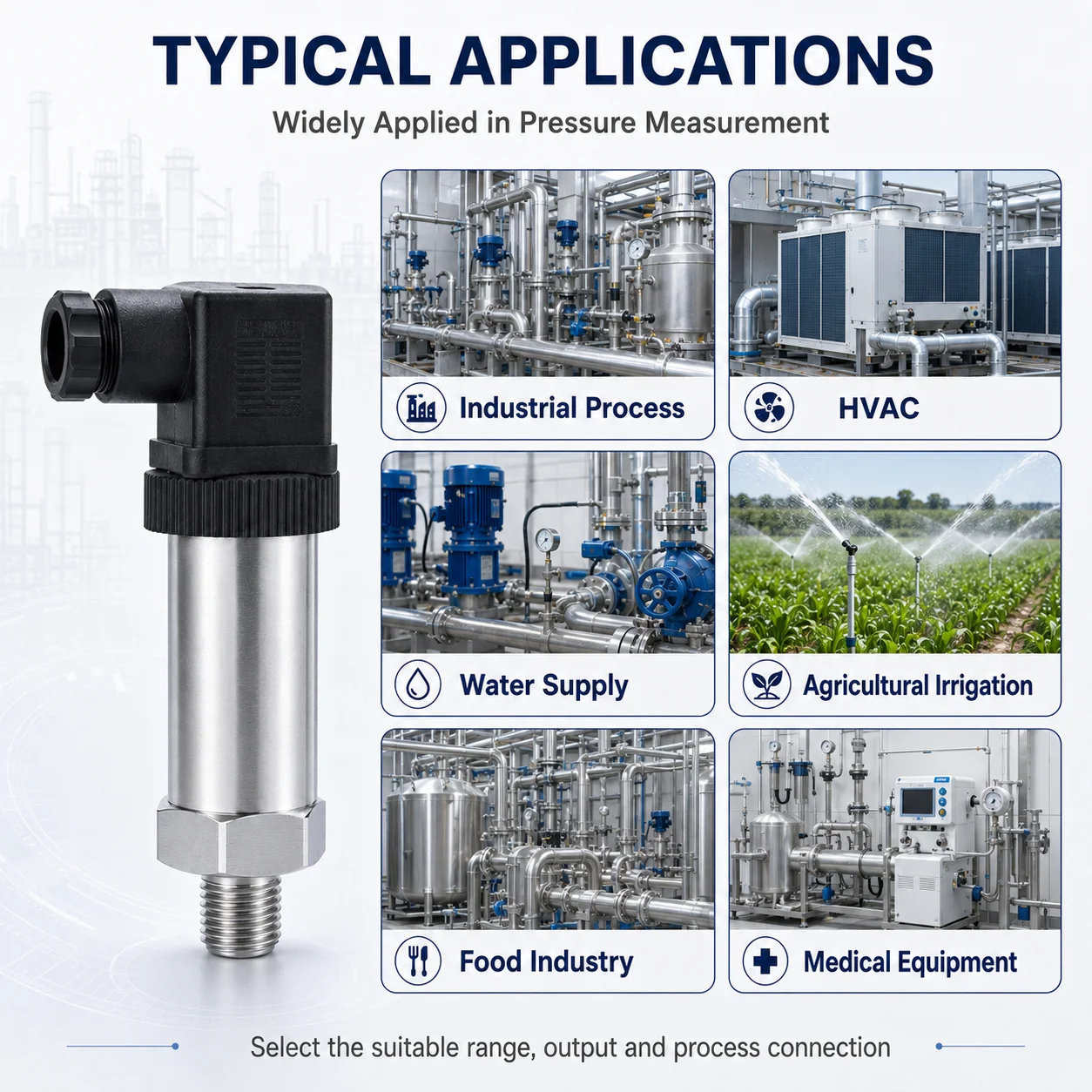

Suitable for compatible water supply, HVAC, irrigation, pump, hydraulic, vacuum, process, and liquid-cooling monitoring applications.
Final selection must match the medium, pressure range and reference type, output, supply, thread, electrical connection, housing material, cable length, temperature, and ingress requirement."
SUP-P300 Stainless Steel Pressure Sensor 4-20mA 0-10V RS485 with DIN M12 or Cable Electrical Connection
Spu:
1601894328660
- Overview
- Recommended Products
About Product
Highlight
About Us
GLGW Nova Materials supplies process automation instruments and monitoring solutions for industrial systems and data-center liquid-cooling applications. Our product portfolio includes pressure and temperature transmitters, flow instruments, and supporting measurement devices. We assist international buyers with model selection, signal and connection matching, pre-shipment inspection, and technical documentation. Products are supplied according to confirmed order specifications and application conditions. Please send the measured medium, range, process connection, output signal, power supply, installation environment, quantity, and destination so that we can confirm the correct configuration and quotation.
FAQs

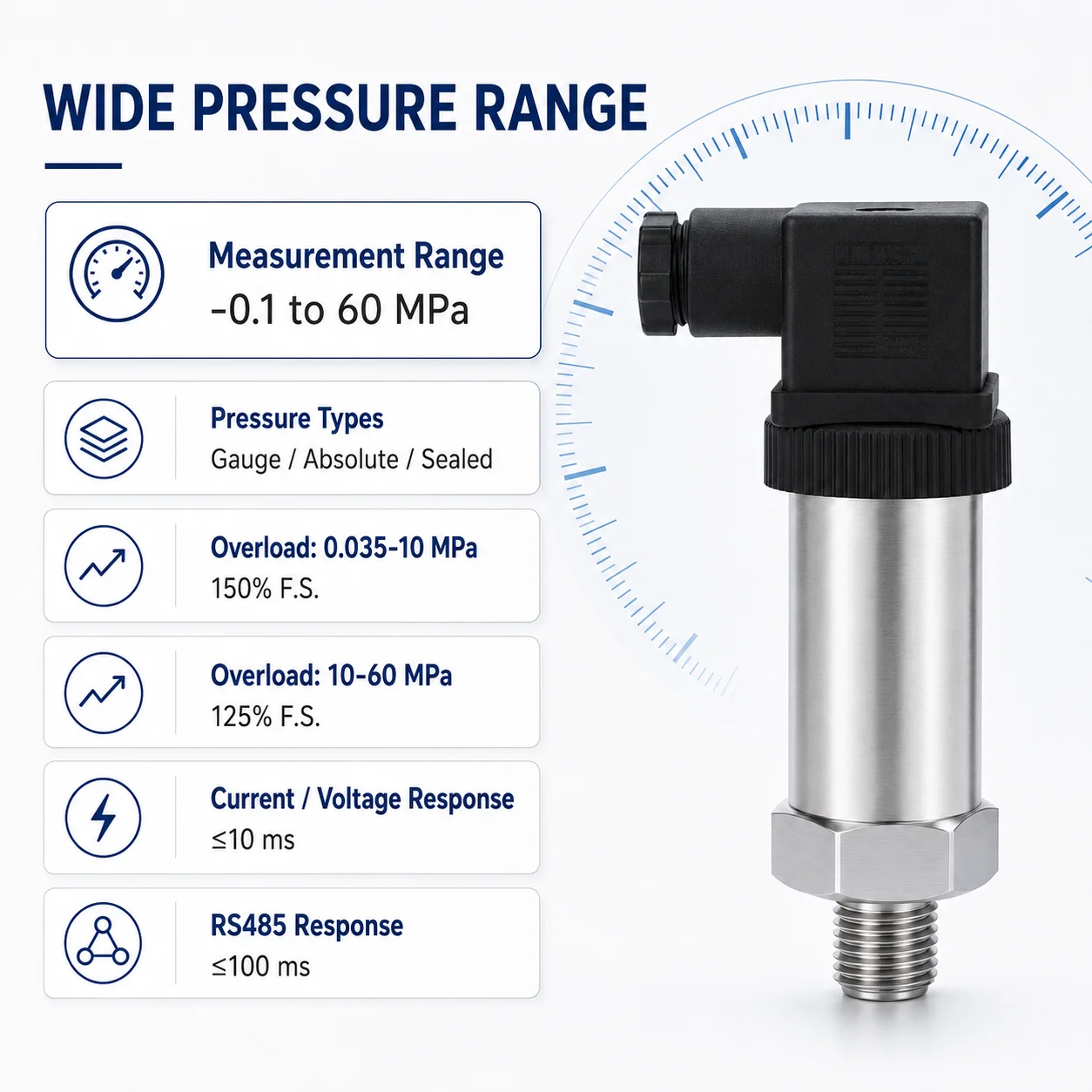

What pressure ranges are available?
Available ranges cover vacuum, low pressure, and high pressure from -0.1 MPa up to 60 MPa. Common order-code ranges are -100 to 0 kPa; -100 to 100 kPa; -100 to 1000 kPa; 0-10/20/30/50/100 kPa; 0-0.6/1/1.6/2.5/4/10/20/25/30/40/60 MPa; other ranges by confirmation. Please confirm the required engineering unit and pressure type.
Which output signals can I choose?

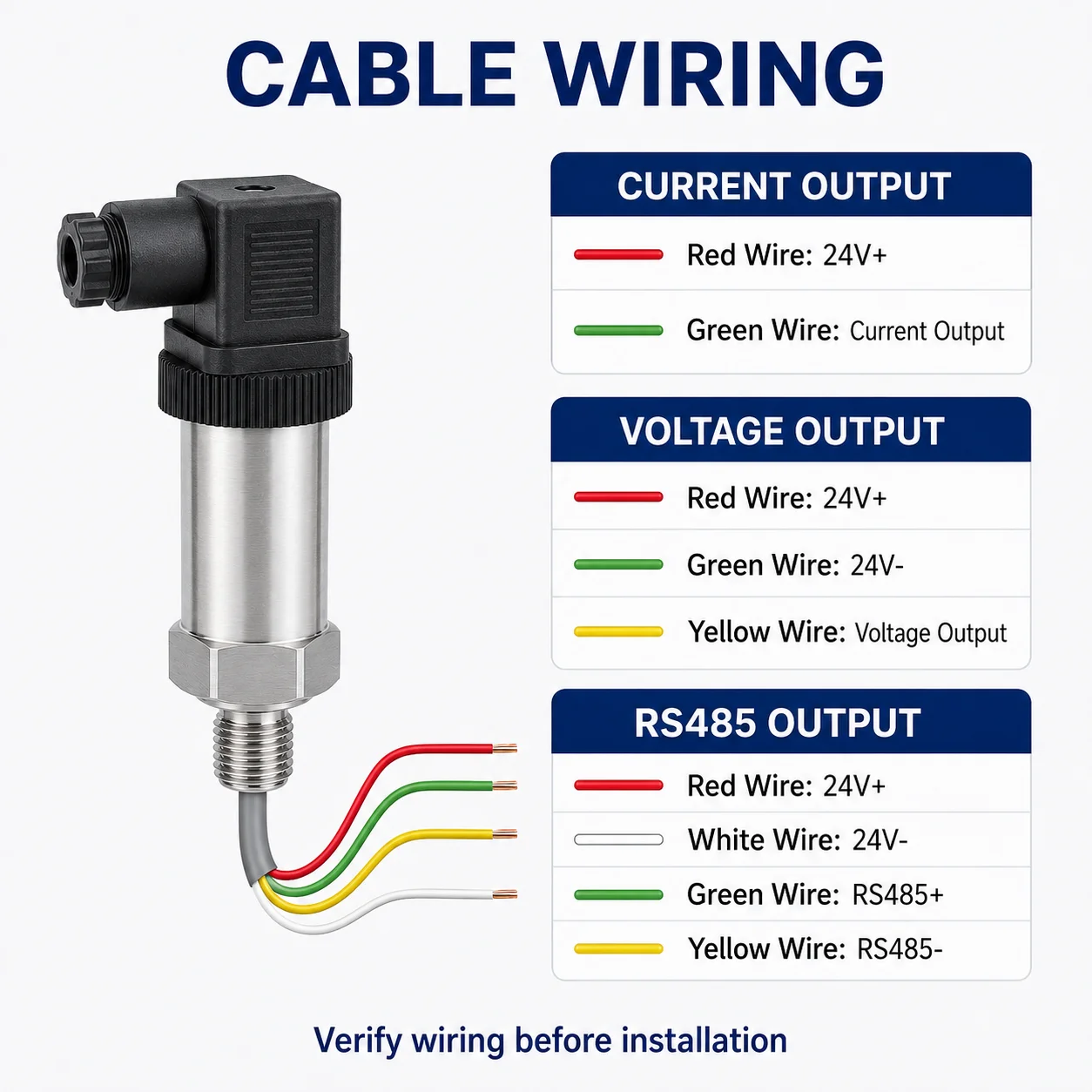

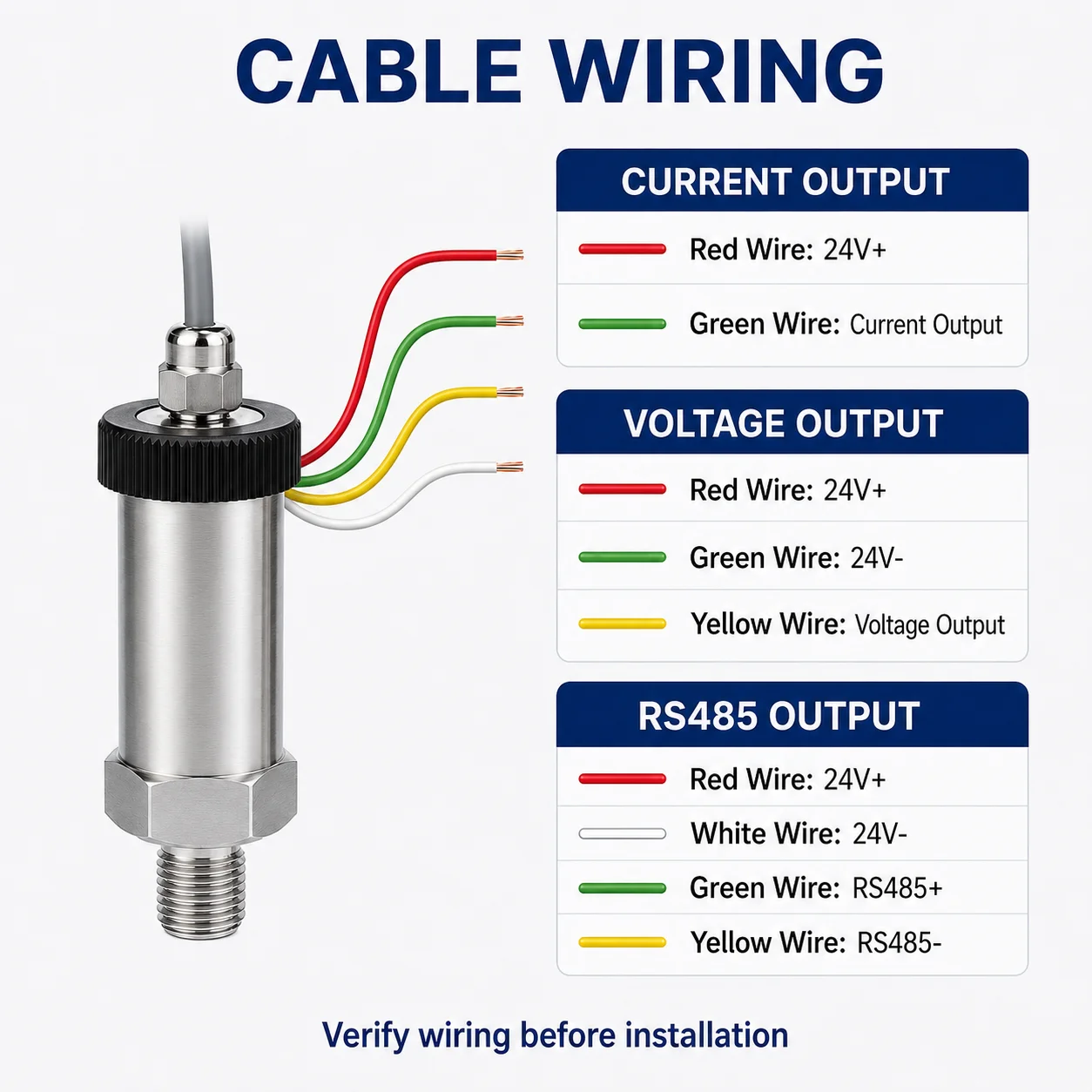

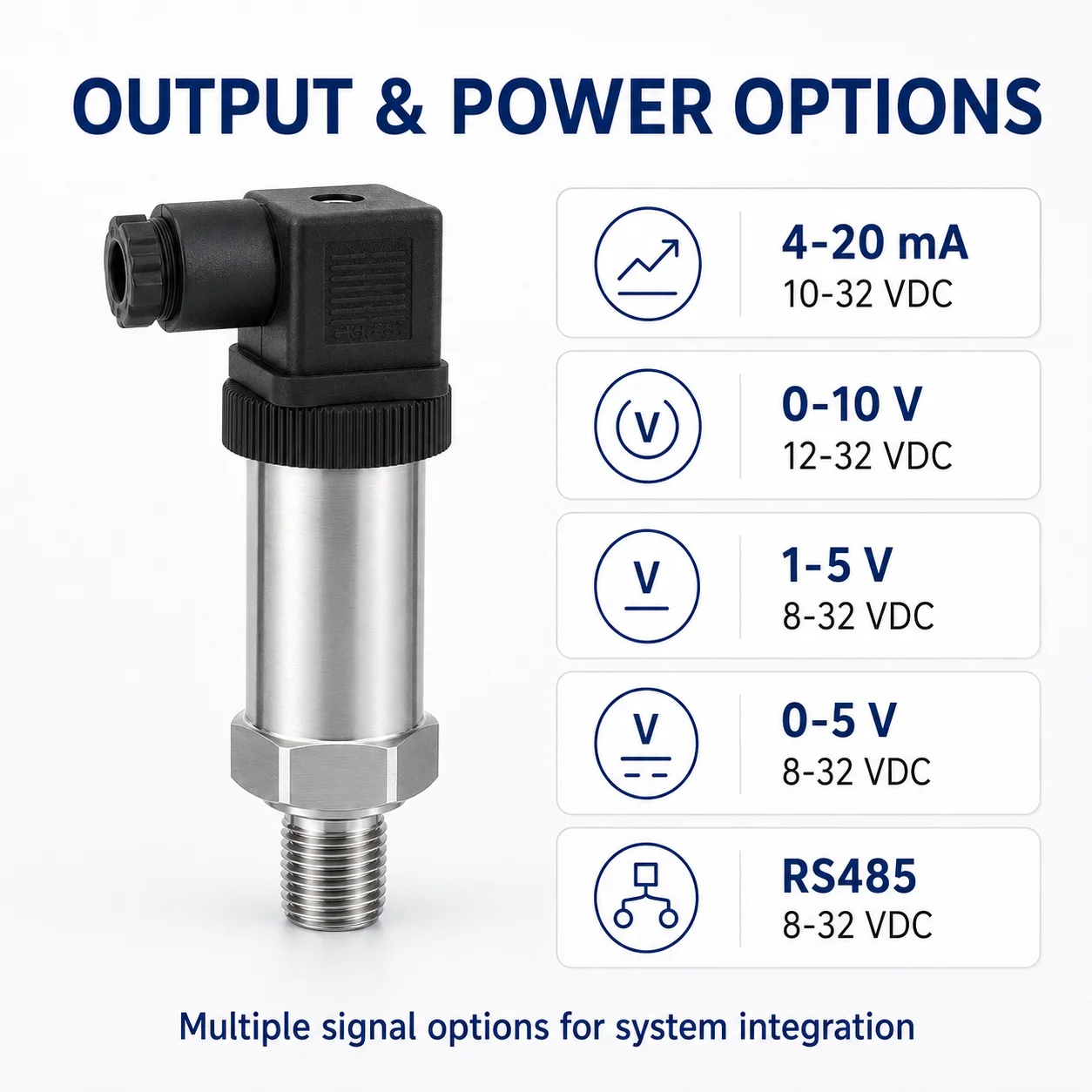

Available configurations include two-wire 4-20 mA, 1-5 V, 0-10 V, 0-5 V, 0.5-4.5 V, and RS485. One output configuration is selected for each ordered SKU; analog transmission and RS485 are not supplied simultaneously unless specifically confirmed.
What media can the transmitter measure?
It is intended for compatible liquids, gases, and oils in industrial systems. Confirm the chemical composition, temperature, pressure peaks, and wetted-material compatibility before ordering.
Can I order gauge or absolute pressure?
Gauge, absolute, and sealed-pressure configurations are available by order code. Absolute-pressure availability is range-dependent, so please identify the required reference type when requesting a quotation.

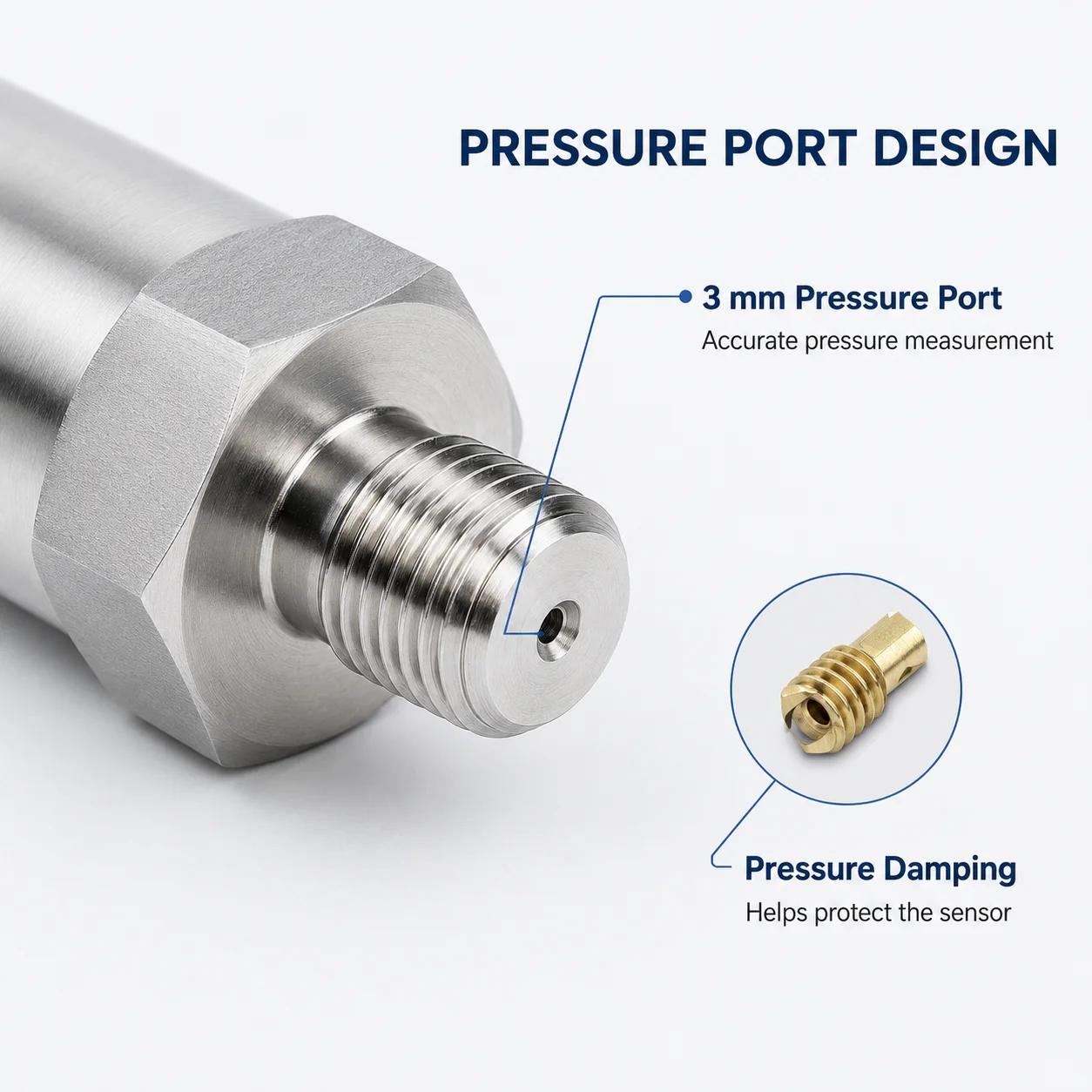

Which process connections are available?

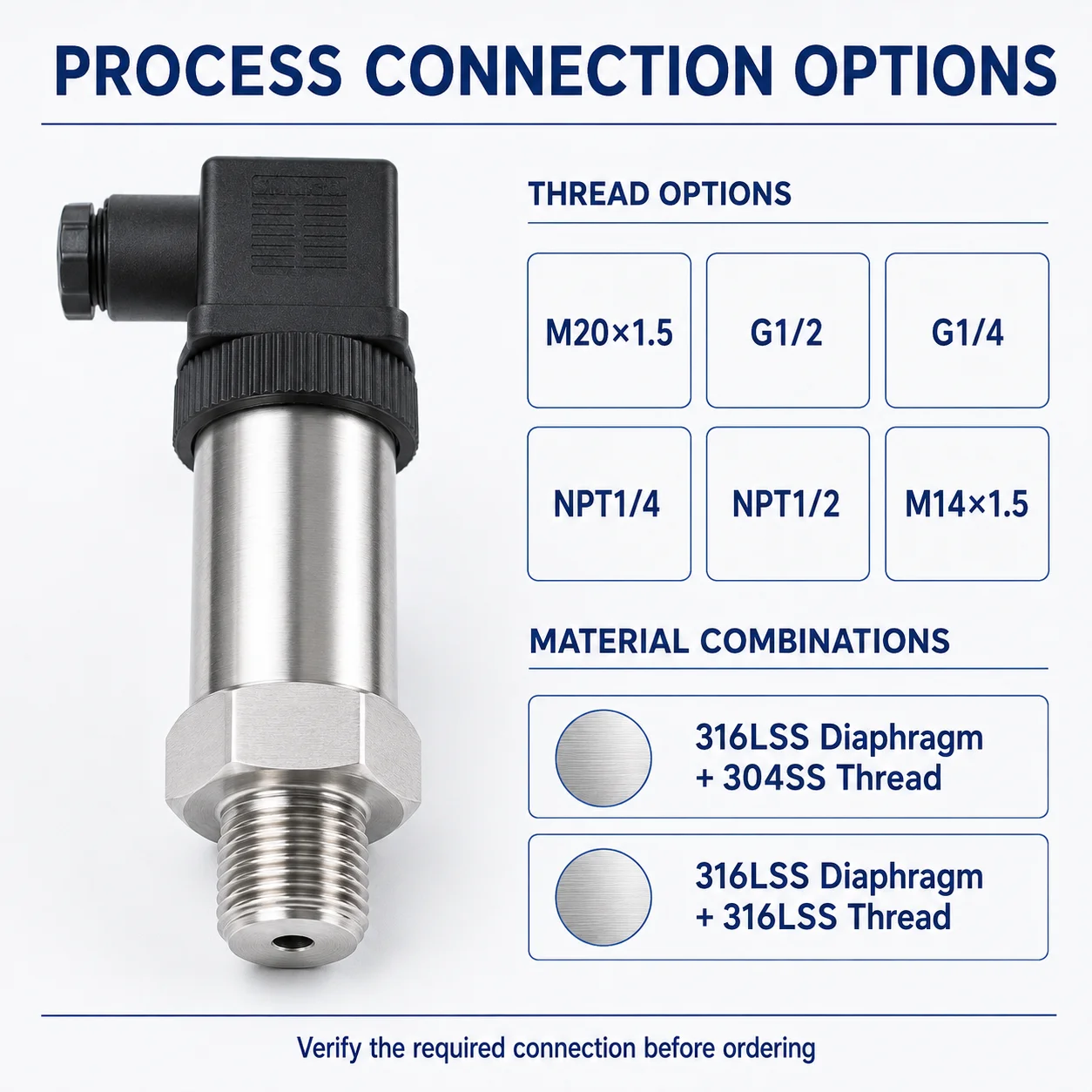

Common threaded connections include M20*1.5; M27*2; M14*1.5; G1/2; G1/4; NPT1/4; NPT1/2; other by confirmation. Availability depends on the selected range, housing, and order code.
What information is required for model selection?
Please provide the measured medium, minimum and maximum pressure, gauge/absolute/sealed reference, output signal, supply voltage, process thread, electrical connection, ambient and medium temperature, ingress requirement, cable length, quantity, and destination.

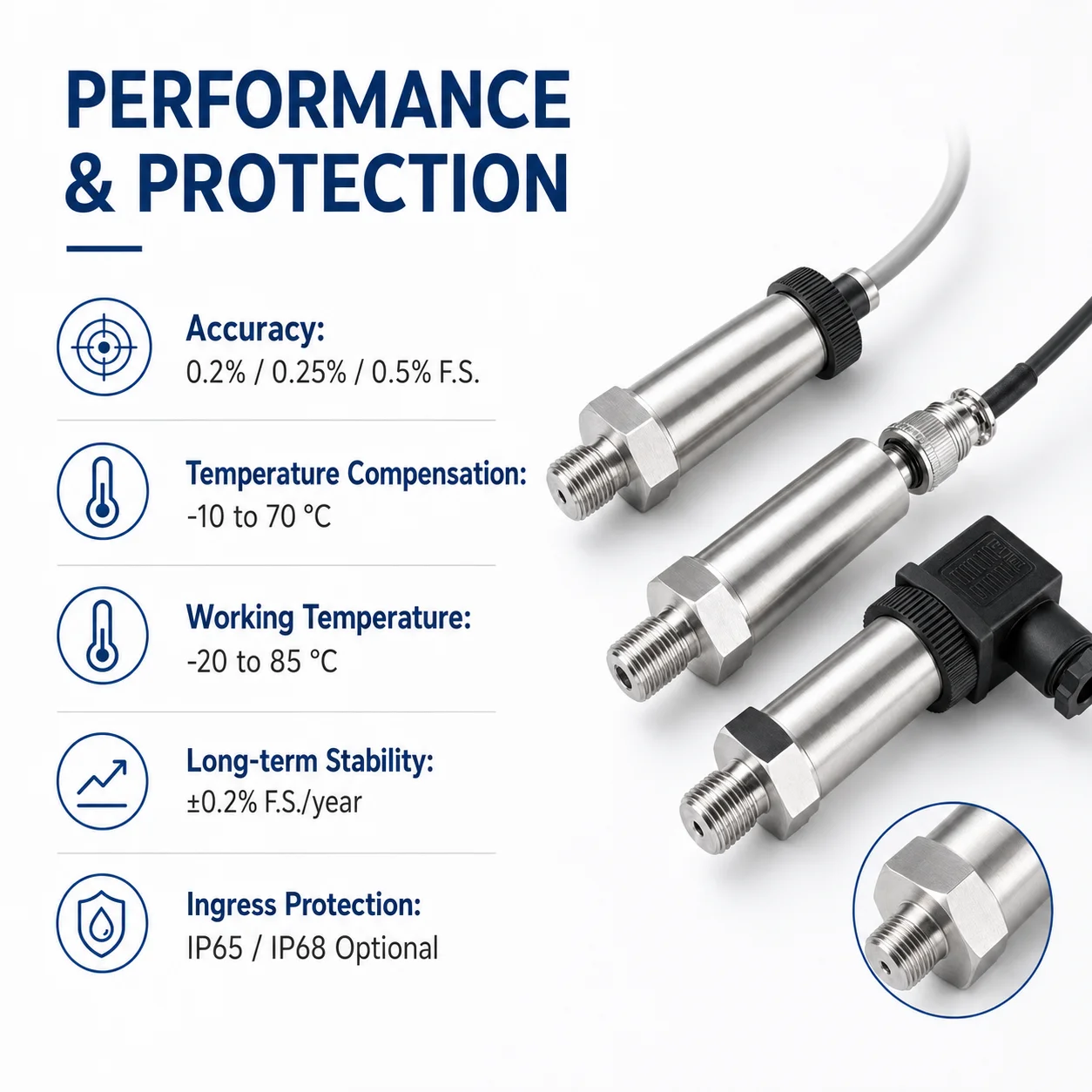

What accuracy grades are available?
The documented options are 0.2%FS, 0.25%FS, and 0.5%FS. The 0.2%FS option is not available for ranges below 100 kPa, so accuracy must be checked against the selected range.
Can SUP-P300 be supplied with IP68 protection?
IP68 is available only for documented cable configurations and ranges of at least 100 kPa. DIN and M12 versions are normally IP65 according to the order code.
