High Precision Measurement: Features ±0.5% high accuracy (Class 0.5) with reliable instantaneous and cumulative flow monitoring across DN6 to DN65 pipelines.
Compact & Liquid Cooling Optimized: Ultra-compact design with low power consumption (<5W), specifically engineered for space-constrained data center liquid cooling systems, CDU units, and HVAC circuits.
Premium & Durable Construction: Rugged 304SS/316LSS stainless steel body with wear-resistant PEEK lining and 316LSS electrodes, offering excellent corrosion resistance and extended service life.
Dual Output & Smart Connectivity: Equipped with standard 4-20mA analog output and RS485 MODBUS-RTU digital communication for easy integration into PLC and industrial automation systems.
Versatile Process Connections: Supports G/NPT threads, ISO2852 sanitary clamps, and standard flanges, backed by IP67 protection, CE certification, and RoHS 2.0 compliance.

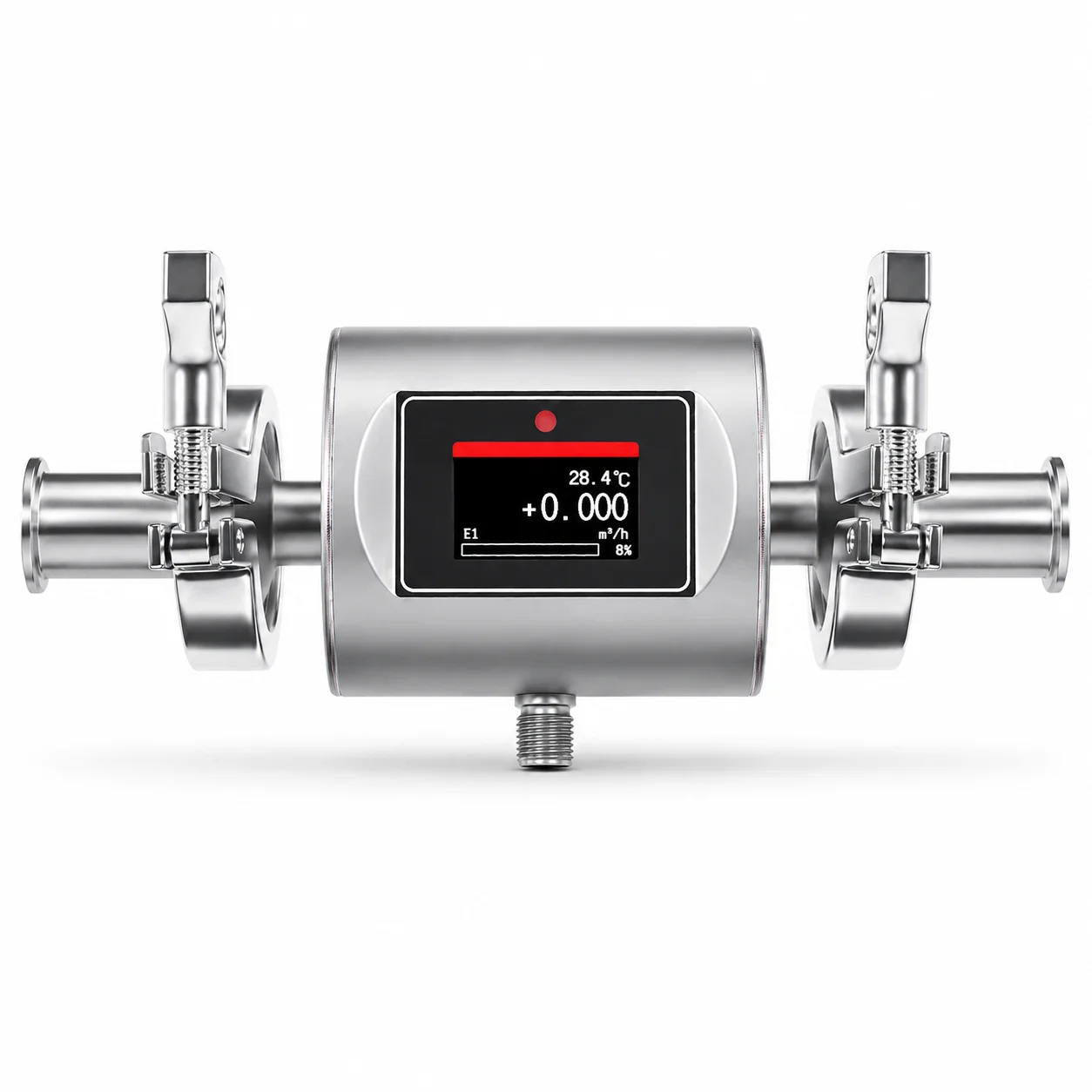

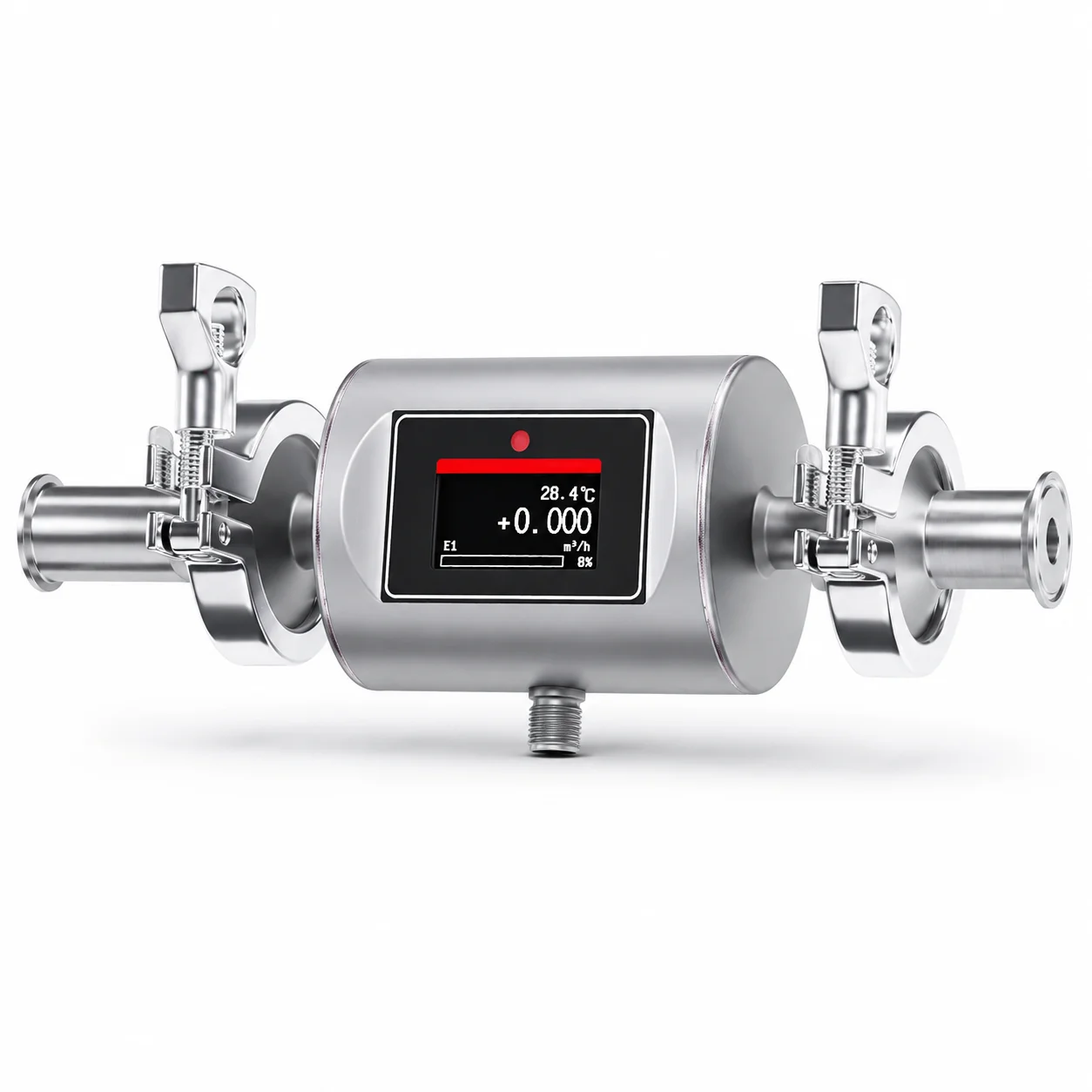

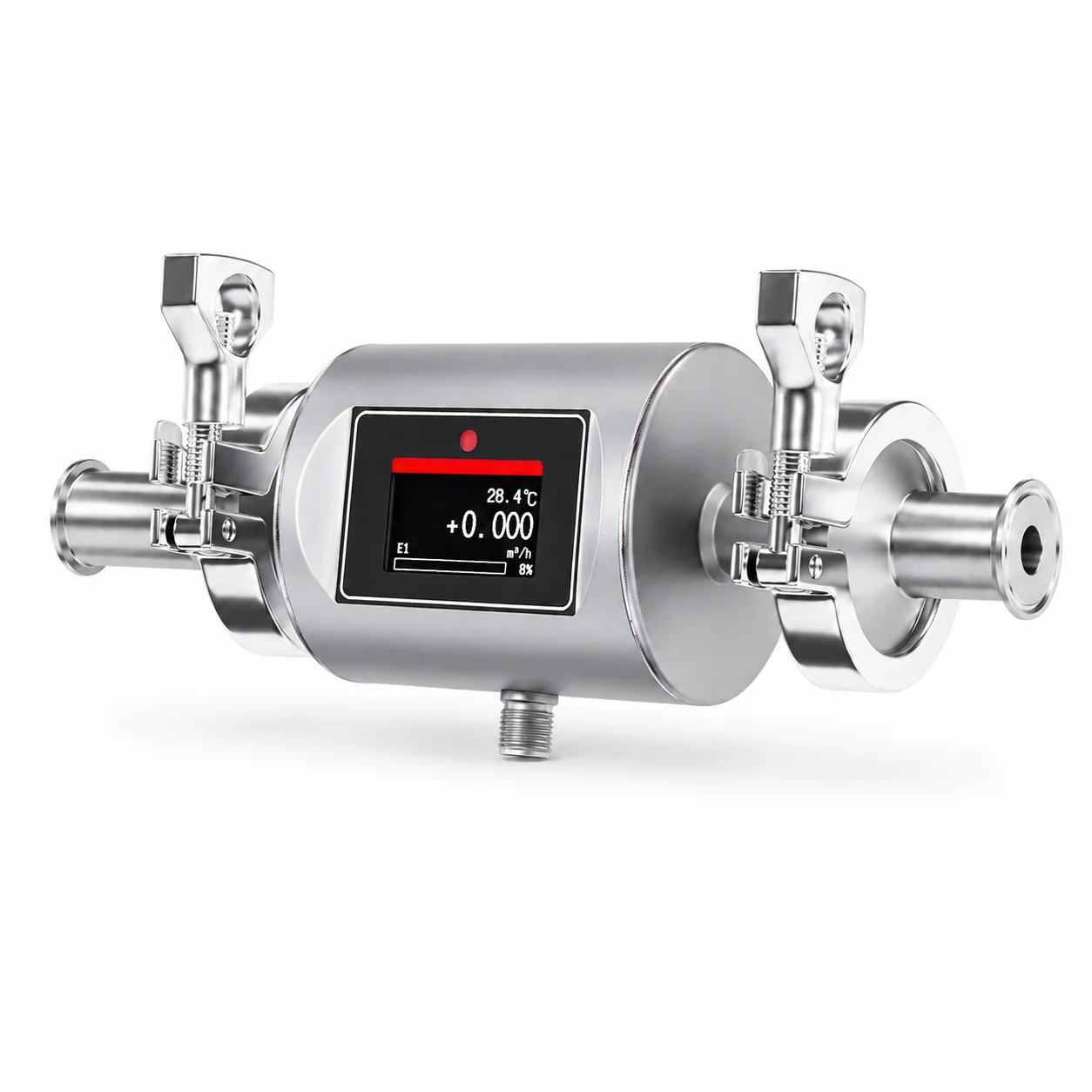

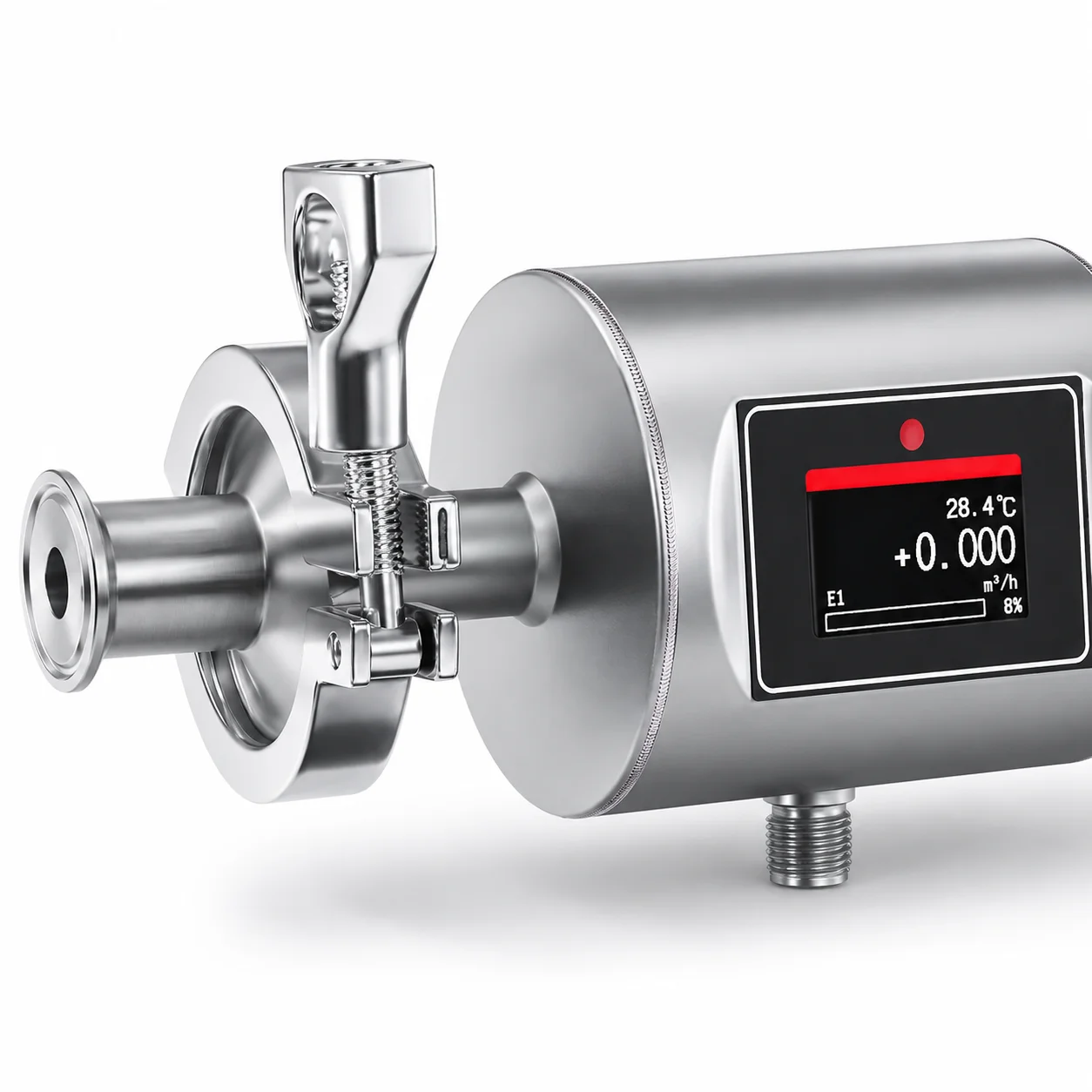

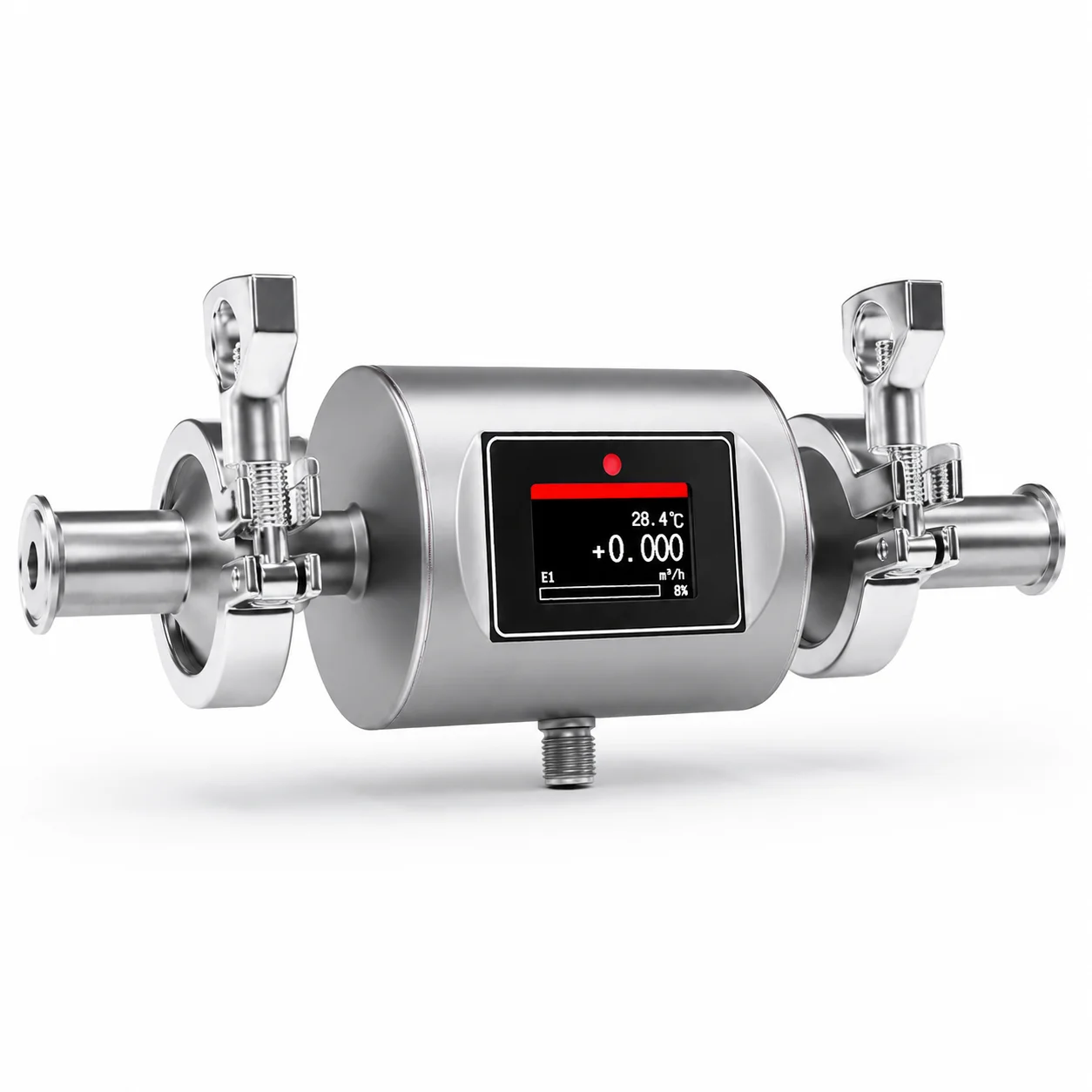

IP67 Waterproof Mini Electromagnetic Water Flow Meter DN15 DN25 Modbus RTU Magnetic Flow Sensor for CDU Cooling Loop FMX240
Spu:
1601937669672
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd. is a precision manufacturing enterprise established in 2025, specializing in high-accuracy electromagnetic flow meters. With 51-100 employees, it serves 50% domestic market and offers OEM/ODM services. Its flow meters feature ±0.5% accuracy, compact design, and IP67 protection, complying with CE and RoHS standards.
FAQs
What types of liquids can the FMX240 flowmeter measure?
The FMX240 is designed for conductive liquids with an electrical conductivity ≥ 2 μS/cm, including industrial circulating water, cooling liquids (such as water-glycol mixtures), and HVAC water. It is not suitable for non-conductive media like gas, steam, or pure oil.
What is the measurement accuracy and available size range?
It features high measurement accuracy of ±0.5% (Class 0.5) with nominal diameter options ranging from DN6 (1/8") to DN65 (2.5"), covering flow ranges from 0.03 m³/h up to 30 m³/h.
What output signals and power supply options are available?
It operates on 24V DC (18~36V DC) with power consumption < 5W. It provides standard 4-20mA analog output and RS485 Modbus-RTU digital communication via an M12 4-pin connector.
What process connections and pressure ratings does it support?
The FMX240 supports ISO2852 sanitary clamp, HG/T20592 flange, and G/NPT male threads, with nominal pressure ratings of PN16 / PN25 (pressure resistance up to 1.6 MPa).
Is this flowmeter suitable for data center liquid cooling systems?
Yes. With its ultra-compact structure, durable 304SS body, PEEK liner, 316LSS electrodes, and IP67 ingress protection, it is ideal for space-constrained data center CDUs, server rack cooling loops, and compact industrial equipment.
Do you support OEM/ODM customization and custom cable lengths?
Yes, we support OEM/ODM services including custom cable lengths (2m, 10m, 20m, or tailored), custom laser marking, and dedicated connection standards to meet your project specifications.
