High-Precision Silicon Core: Employs advanced piezoresistive silicon sensor technology with high accuracy up to 0.2% FS and superior long-term stability (+/-0.2% FS/year).
Ultra-Compact Design: Space-saving mini structure specially optimized for liquid cooling data center CDU units and compact industrial installations.
Multiple Output Options: Compatible with 4-20mA, 0-5V, 1-5V, 0-10V analog signals and RS485 Modbus RTU digital communication.
Rugged & Corrosion Resistant: Features 316L stainless steel isolated diaphragm, 304SS/316LSS housing, and IP65/IP68 high protection rating.
Fast Response & Wide Range: Rapid response time (T90 <= 10ms) with broad pressure measurement capabilities from -100kPa to 20MPa.

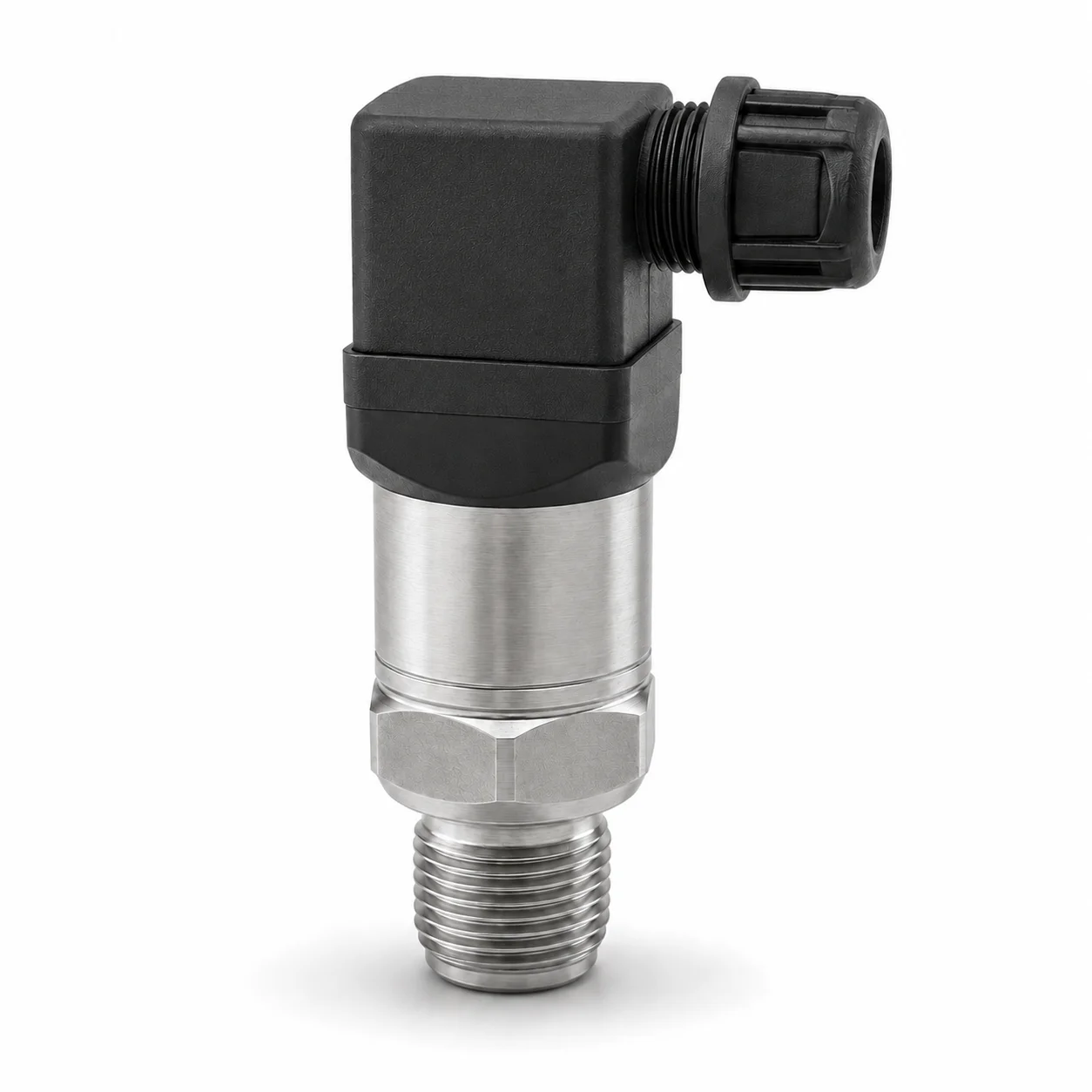

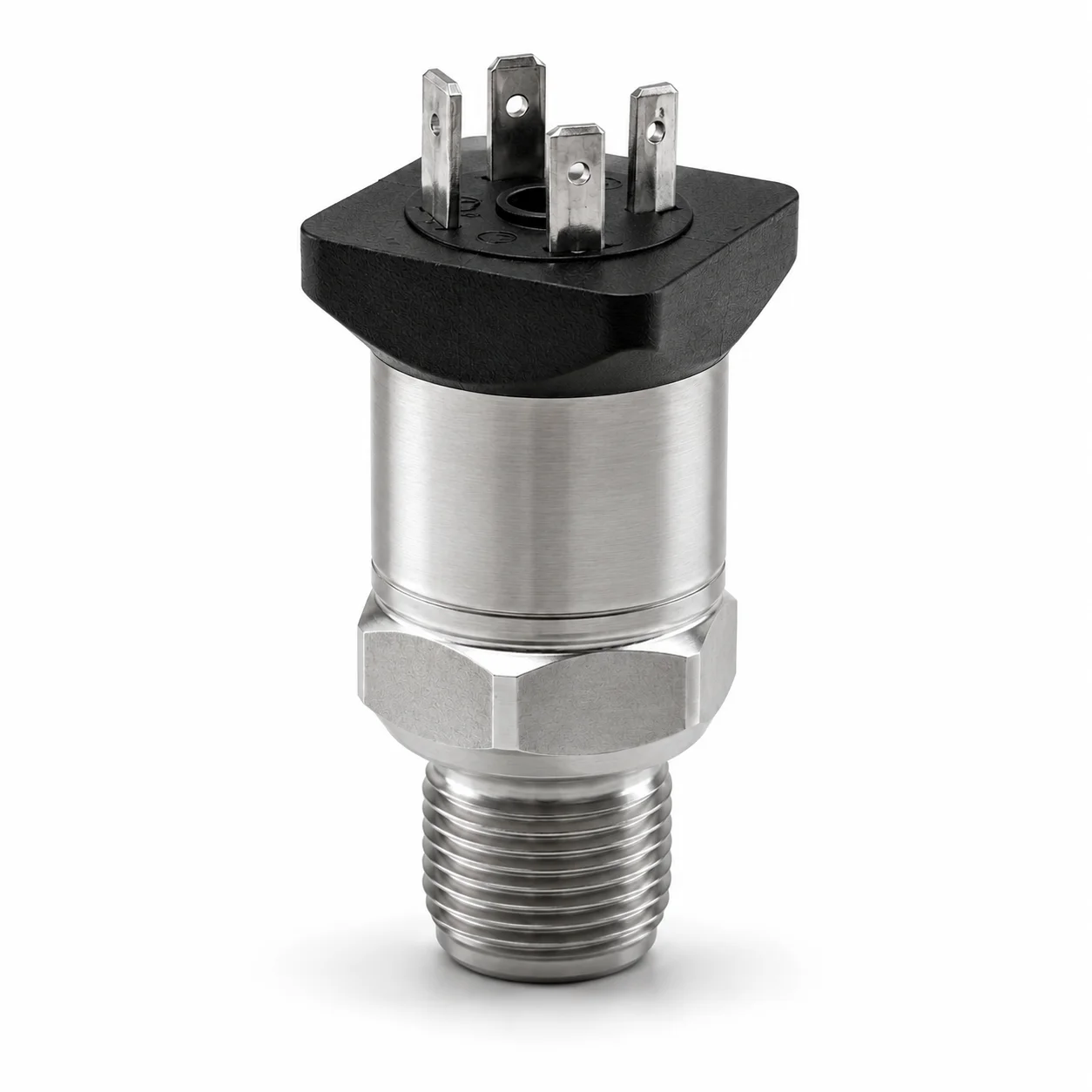

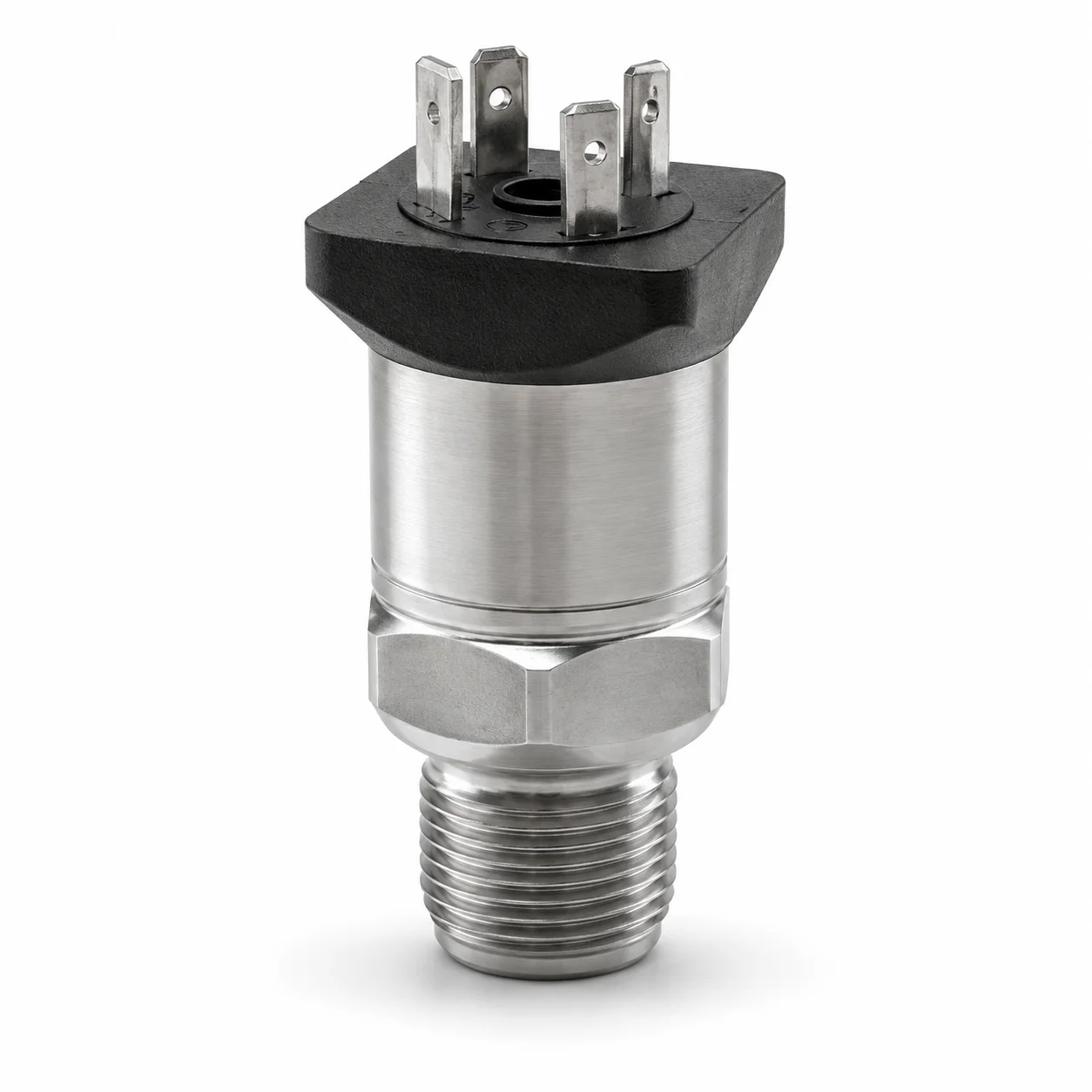

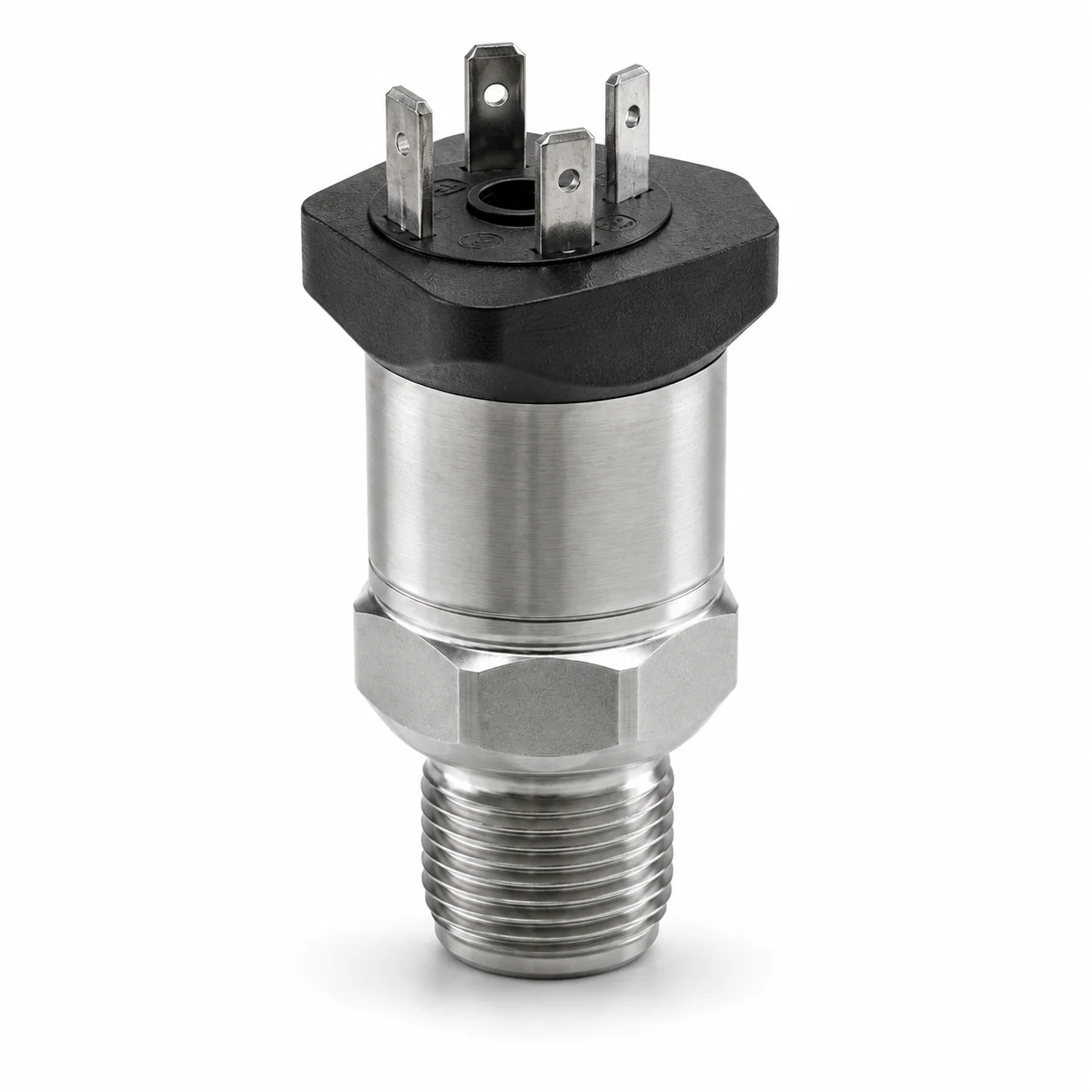

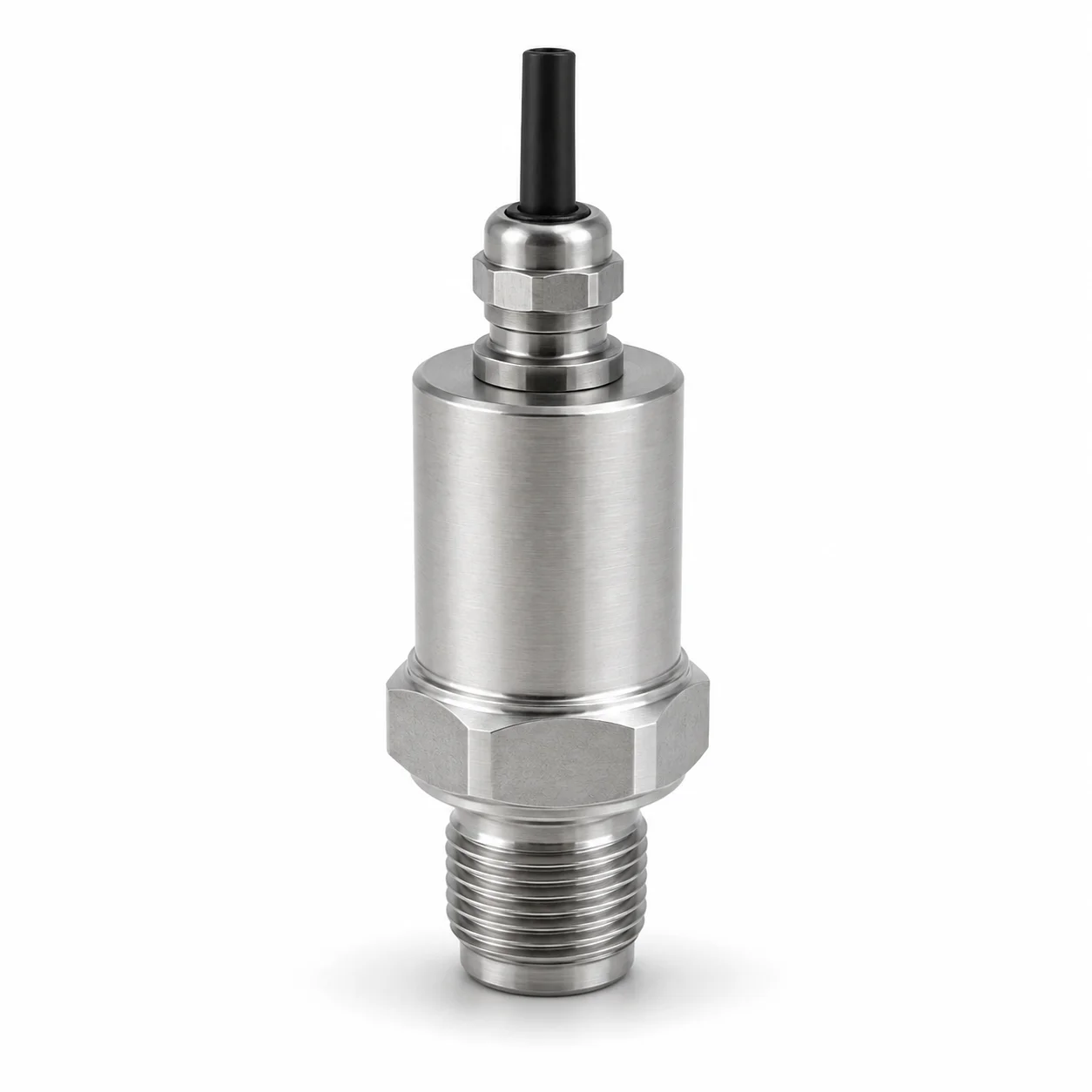

PE100 Stainless Steel 316L Diaphragm Pressure Transducer G1/4 G1/2 M20*1.5 Thread Liquid Gas Water Oil Pressure Transmitter
Spu:
1601937729177
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd. specializes in high-precision pressure sensors, serving 50% domestic market and 14% North America. With 51-100 employees, it offers 0.2%FS accuracy, IP65/IP68 protection, and 4-20mA/RS485 outputs, supporting liquid cooling data centers.
FAQs
What media is this PE100 pressure transmitter suitable for?
It is compatible with various gases, liquids, and cooling fluids. It features a 316L stainless steel isolated diaphragm and is widely used in liquid cooling data center CDU systems, HVAC, and general industrial pipelines.
Do you support customized pressure ranges, threads, and output signals?
Yes, we offer complete OEM/ODM customization. You can customize the measuring range (-100kPa to 20MPa), process connections (M20x1.5, G1/2, G1/4, NPT1/2, UNF), electrical connections (Hirschmann, M12, Cable), and output signals (4-20mA, 0-5V, 0-10V, RS485).
What is the accuracy and stability of the transmitter?
The transmitter uses a high-performance piezoresistive silicon core, providing standard accuracy of 0.5%FS, with 0.25%FS and 0.2%FS options available. Long-term stability is +/-0.2%FS per year.
What is the waterproof and protection rating?
The standard protection grade is IP65, and an IP68 waterproof rating is available with the M12 aviation connector version. It also complies with international EMC anti-interference standards.
What is the MOQ and lead time?
Our MOQ is 1 piece for sample testing. Standard orders are typically shipped within 3 to 7 business days, while customized bulk orders depend on specific quantities.
