Flat-Face Non-Spill & Dry-Break Design: Equipped with a precision flat-face shut-off valve that ensures virtually zero fluid leakage or air inclusion during connection and disconnection, protecting sensitive electronics and server racks from liquid damage.
Premium SUS304 Stainless Steel Construction: Crafted from heavy-duty SUS304 stainless steel with superior anti-corrosion, anti-rust, and wear-resistant properties, ensuring long-term reliability under operating temperatures from -40°C to +125°C.

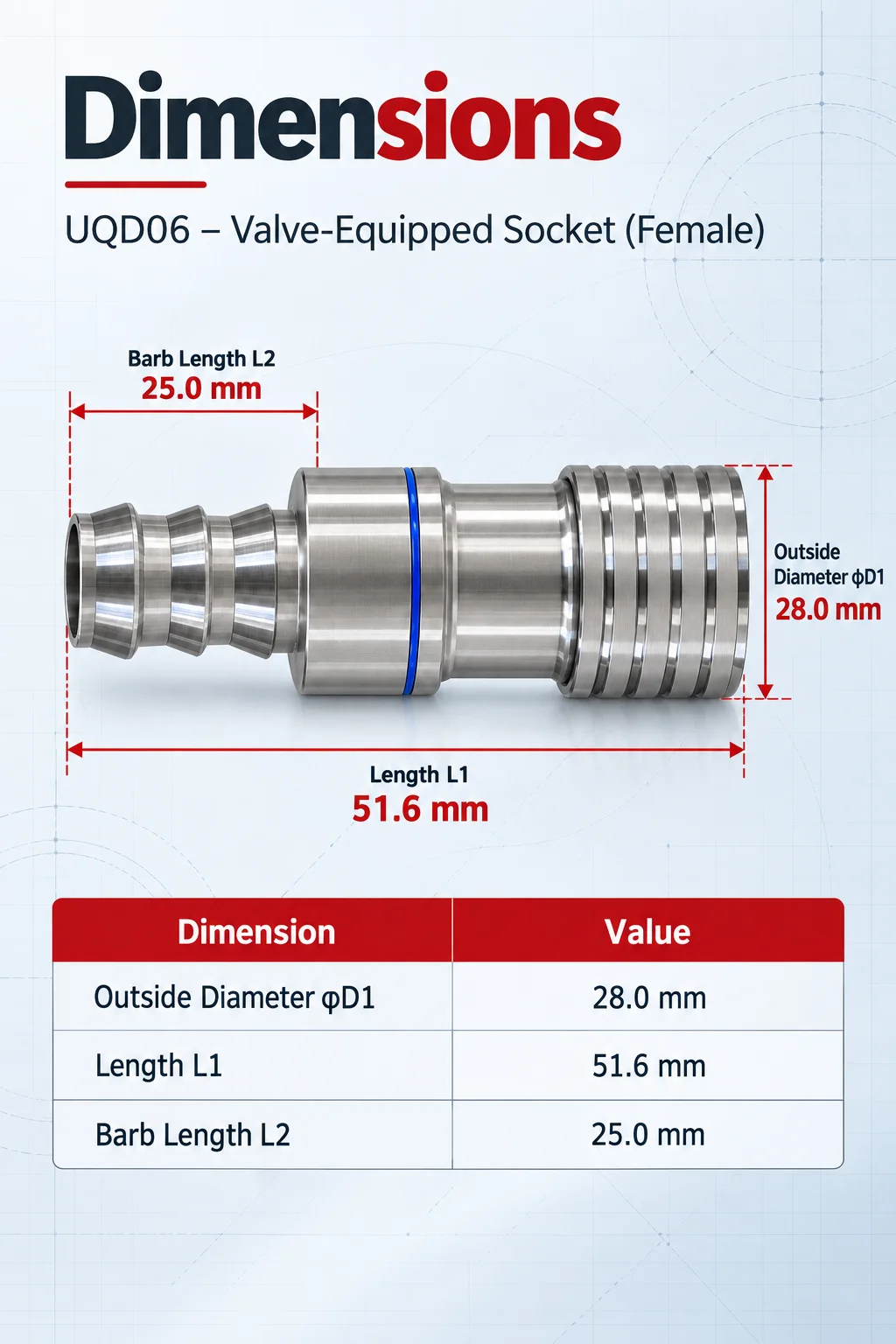

Standard DN12 with 1/2" Hose Barb Interface: Designed to DN12 nominal flow standards with a 1/2-inch clamp-connected rubber hose barb (compatible with ID 12.7mm, OD 19.1mm hoses), ensuring low pressure drop, high flow rate, and firm leak-free sealing.
Push-to-Connect & Reliable Locking Mechanism: Features an intuitive push-to-lock ball-latch mechanism for quick, tool-free single-handed operation, rated for over 5,000 mating cycles for frequent maintenance and hot-swapping.

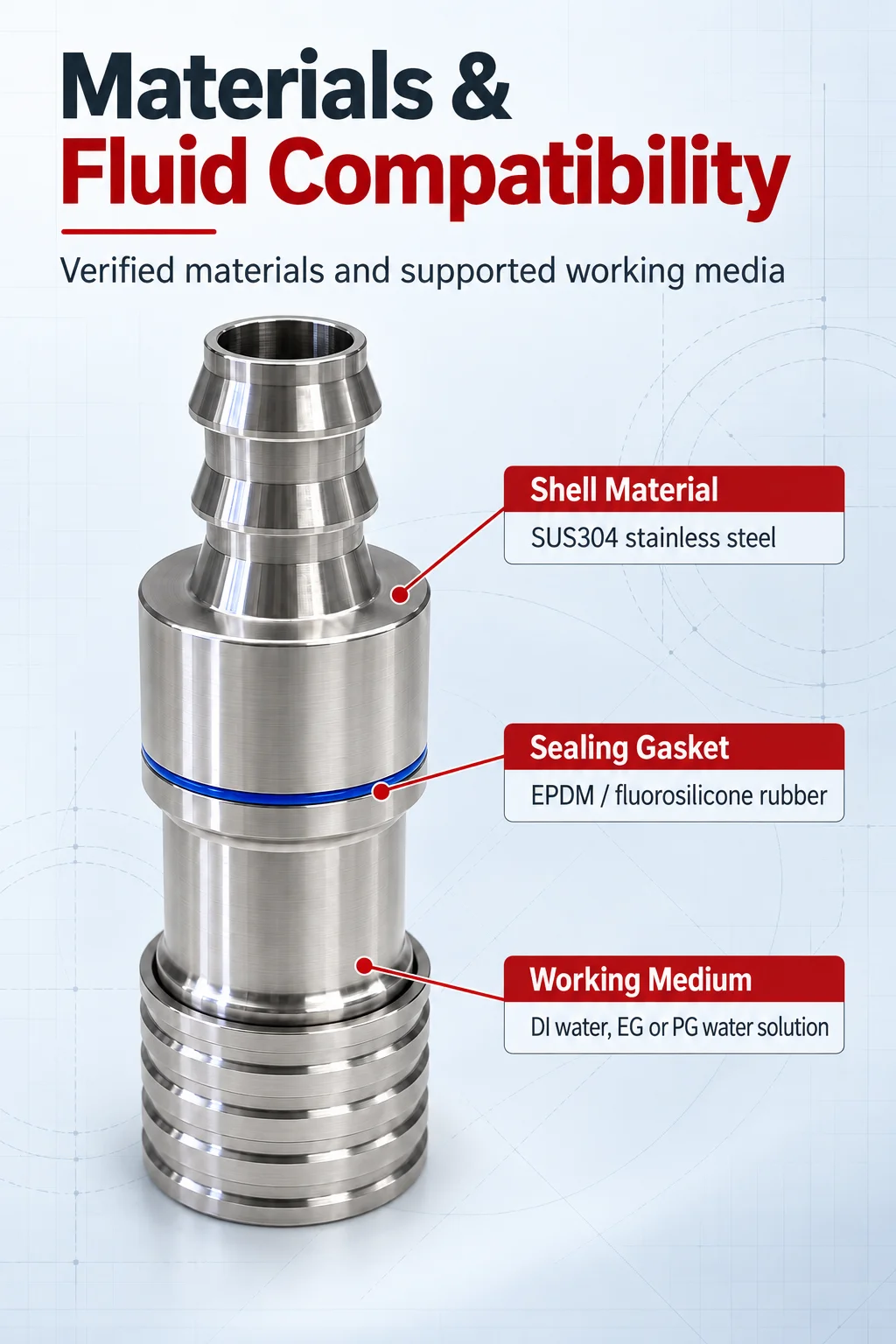

Broad Coolant Compatibility: Features premium EPDM/Fluororubber O-ring seals, fully compatible with deionized water (DI water), ethylene glycol (EG), propylene glycol (PG) solutions, and common dielectric coolants.
Engineered for Data Centers & Supercomputers: The ideal fluid connection solution for server rack liquid cooling systems, cold plates, manifold distributions, CDU units, and high-performance computing (HPC) thermal management.

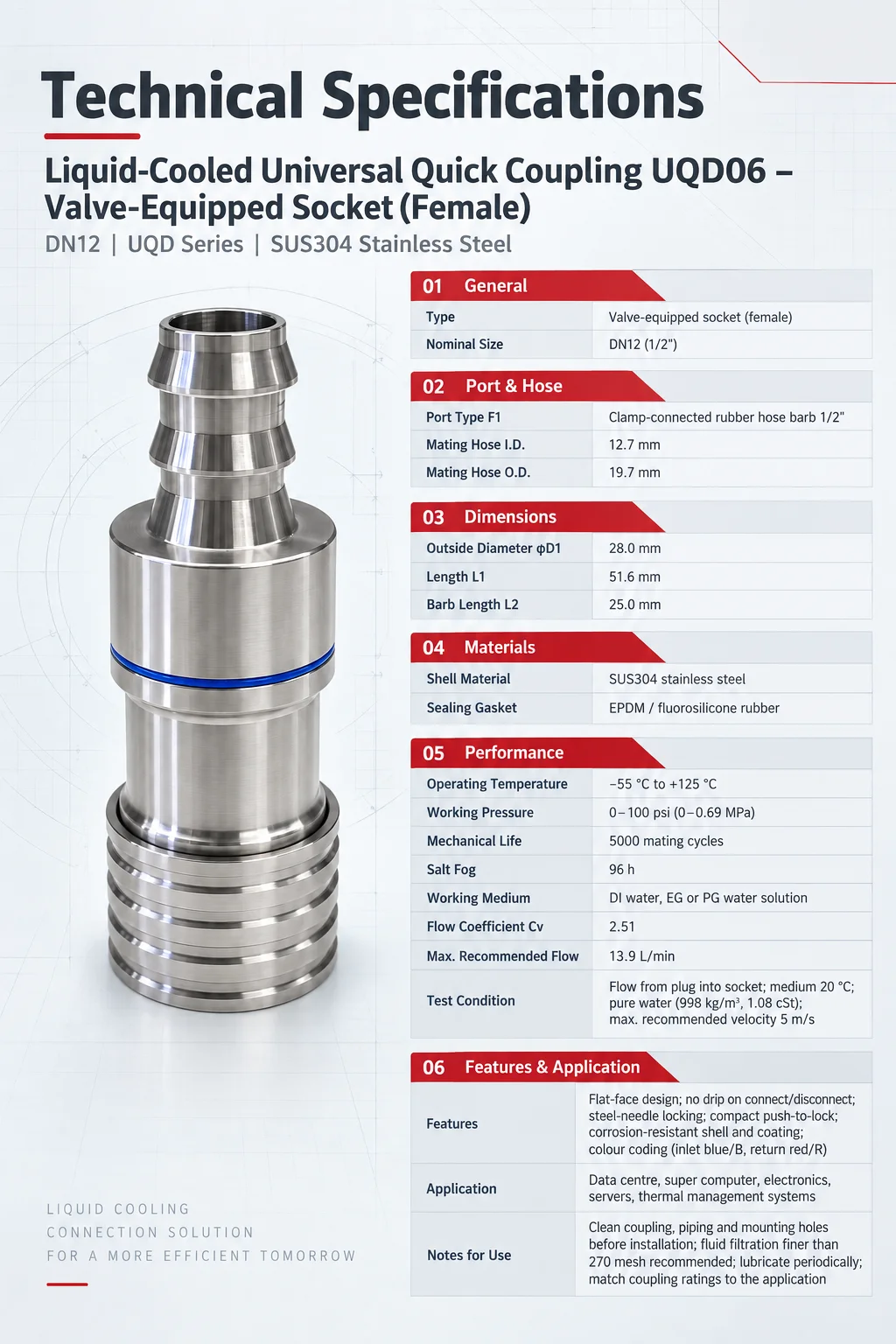

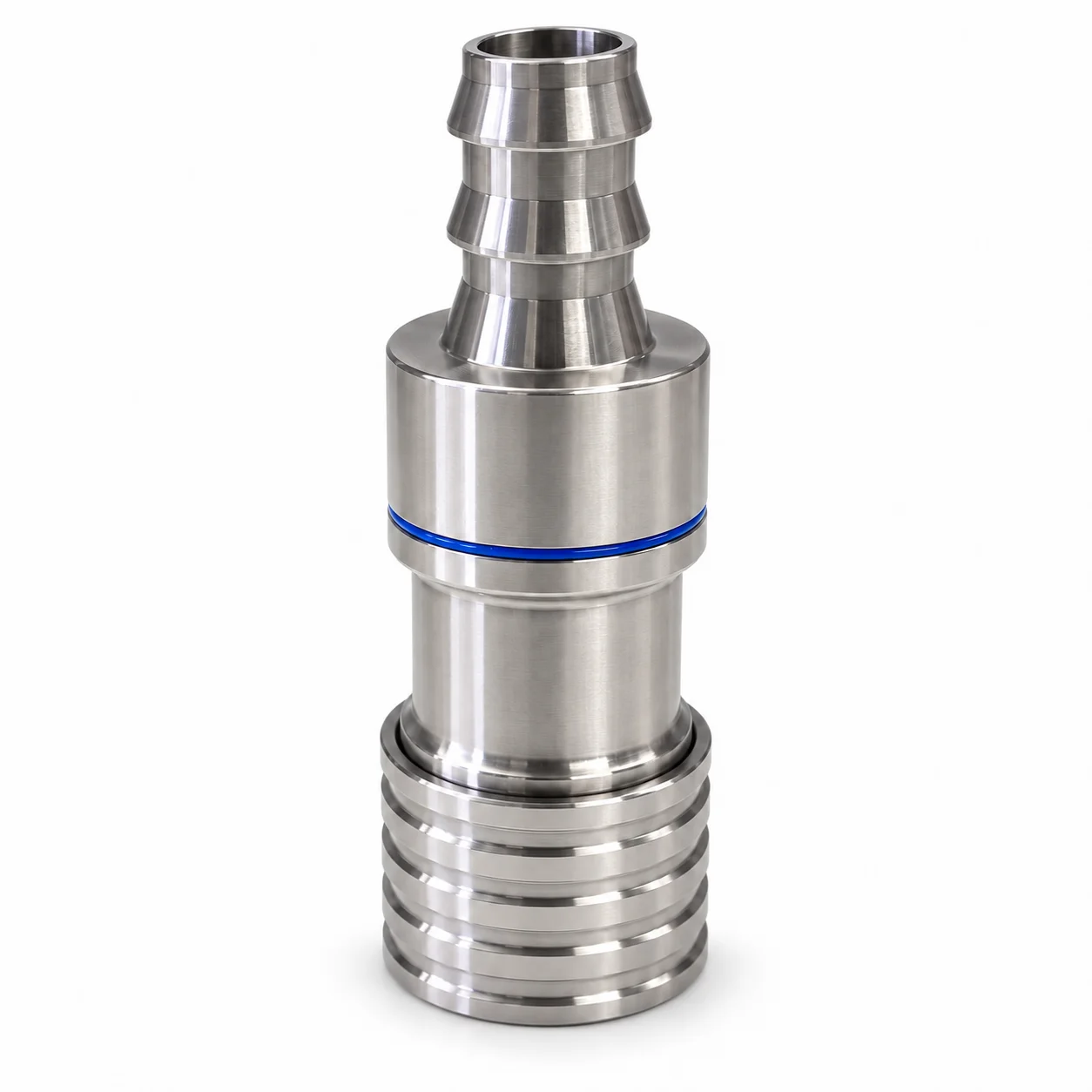

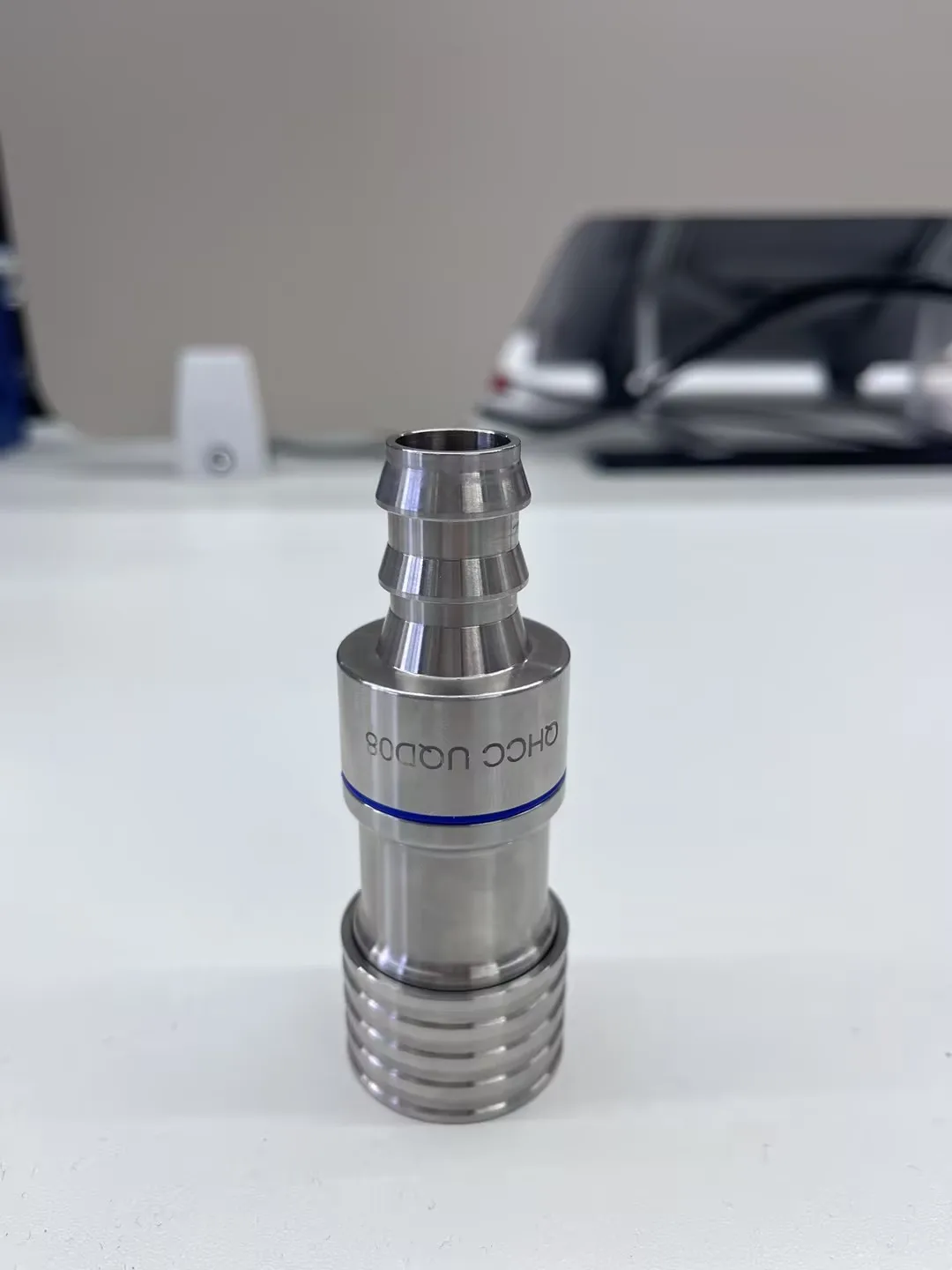

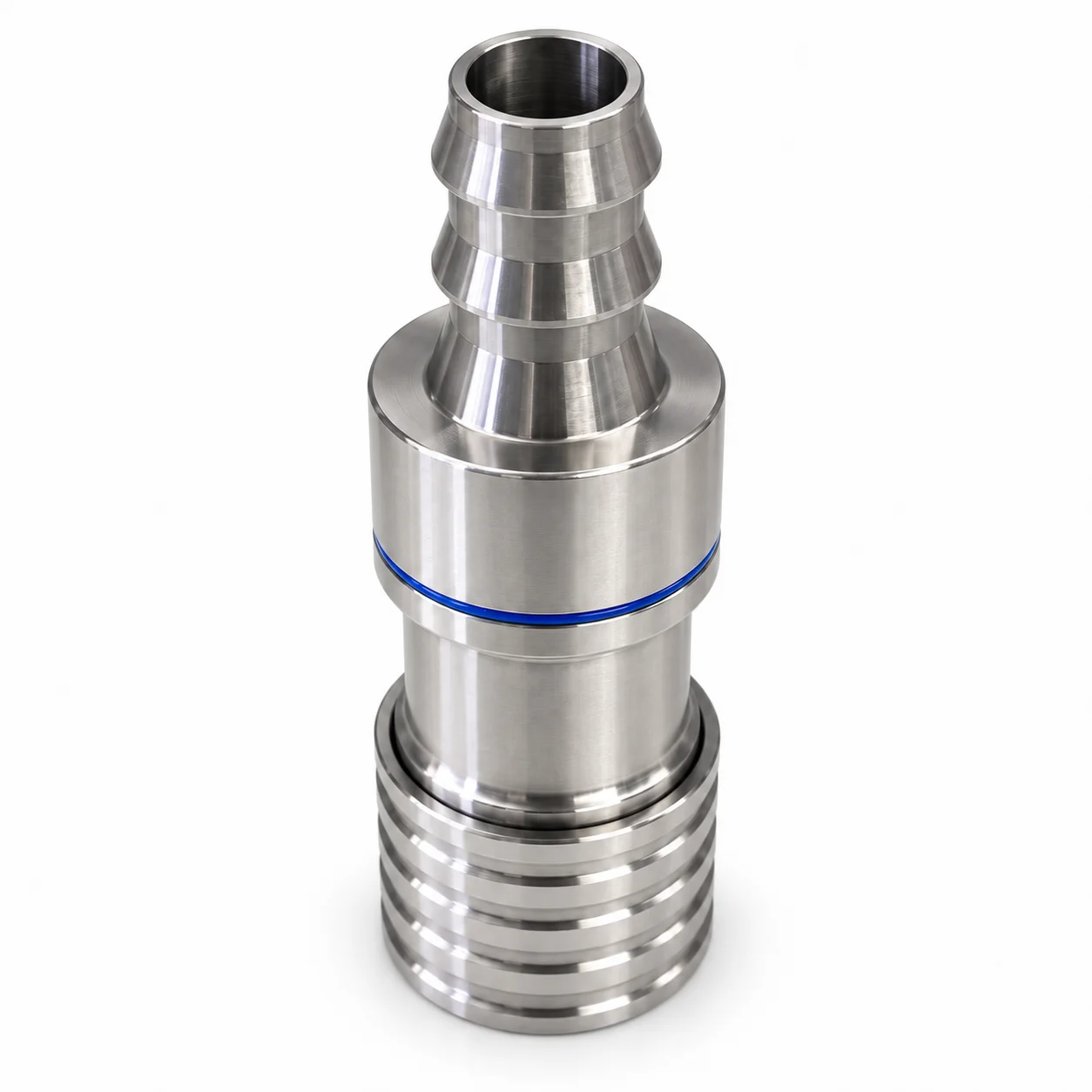

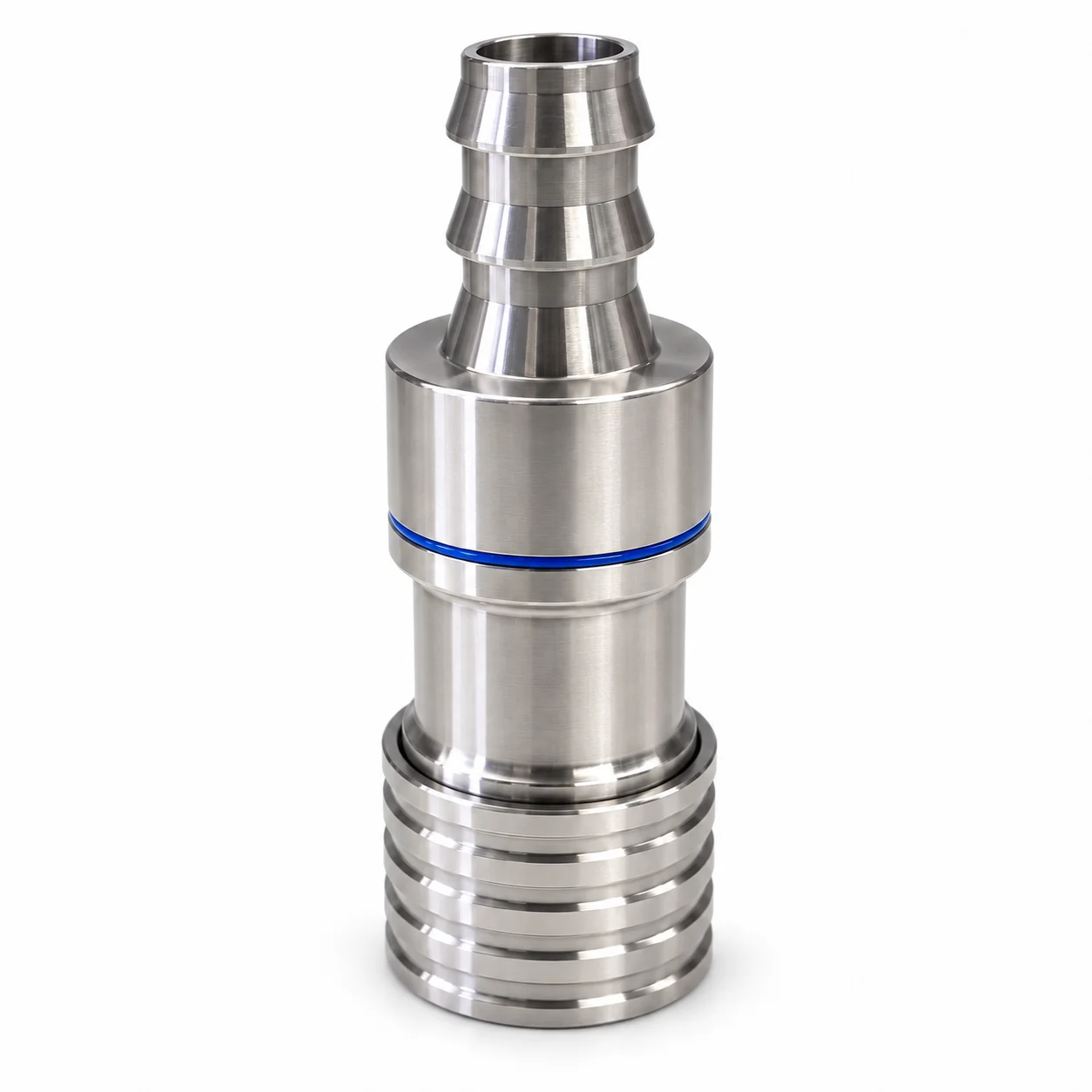

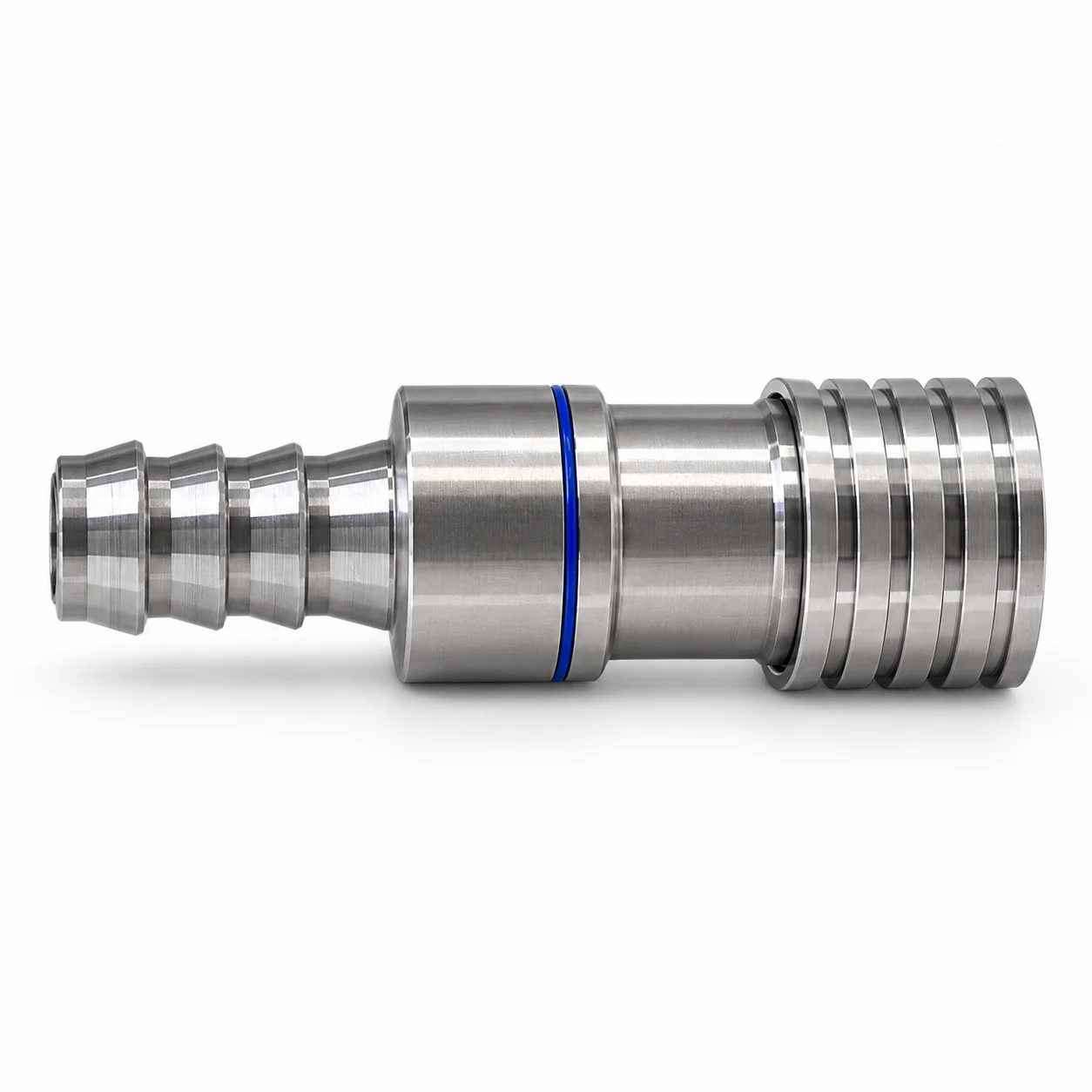

SUS304 DN12 UQD06 Liquid Cooling Quick Disconnect Coupling 1/2" Hose Barb Non-Spill Female Socket for Data Center Server Rack
Spu:
1601948786350
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd., established in 2025, specializes in high-performance liquid cooling components. With 51-100 employees, it serves 50% domestic market, 14% North America, and 12% South America. The company focuses on precision materials and industrial solutions, offering SUS304 stainless steel couplings for data center applications.
FAQs
Is this UQD06 quick coupling truly non-spill and dry-break during disconnection?
Yes. It features a precision flat-face valve design that guarantees virtually zero drip upon disconnection and prevents air inclusion during connection, ensuring maximum safety for server racks and high-voltage electronics.
What working fluids and temperatures is this connector compatible with?
Crafted from SUS304 stainless steel with premium EPDM/FKM seals, it is fully compatible with deionized water (DI water), ethylene glycol (EG), and propylene glycol (PG) solutions across an operating temperature range of -40°C to +125°C.
What size and type of hose is suitable for this 1/2" barb connector?
It is designed for standard 1/2" rubber or silicone coolant hoses with an inner diameter (ID) of 12.7 mm and outer diameter (OD) of approximately 19.1 mm, securely fastened with hose clamps.
What is the MOQ, and can I get a sample for flow rate and pressure testing?
Our standard MOQ is 100 pieces. Samples are available for performance evaluation, flow testing, and leak-tightness verification prior to bulk orders. Please contact our team to request samples.
Do you offer OEM/ODM services or custom interface types?
Yes, we support OEM/ODM customization, including custom laser logos, alternative thread standards (G, NPT, SAE), special seal materials, and other UQD series sizes (such as DN04, DN06, DN08, DN12). Standard lead time is 15-25 business days.
