Dedicated to Immersion Liquid Cooling: Specially engineered for closed piping in data center immersion cooling (primary & secondary loops), water-glycol/alcohol solutions, and deionized water with zero conductivity requirement.

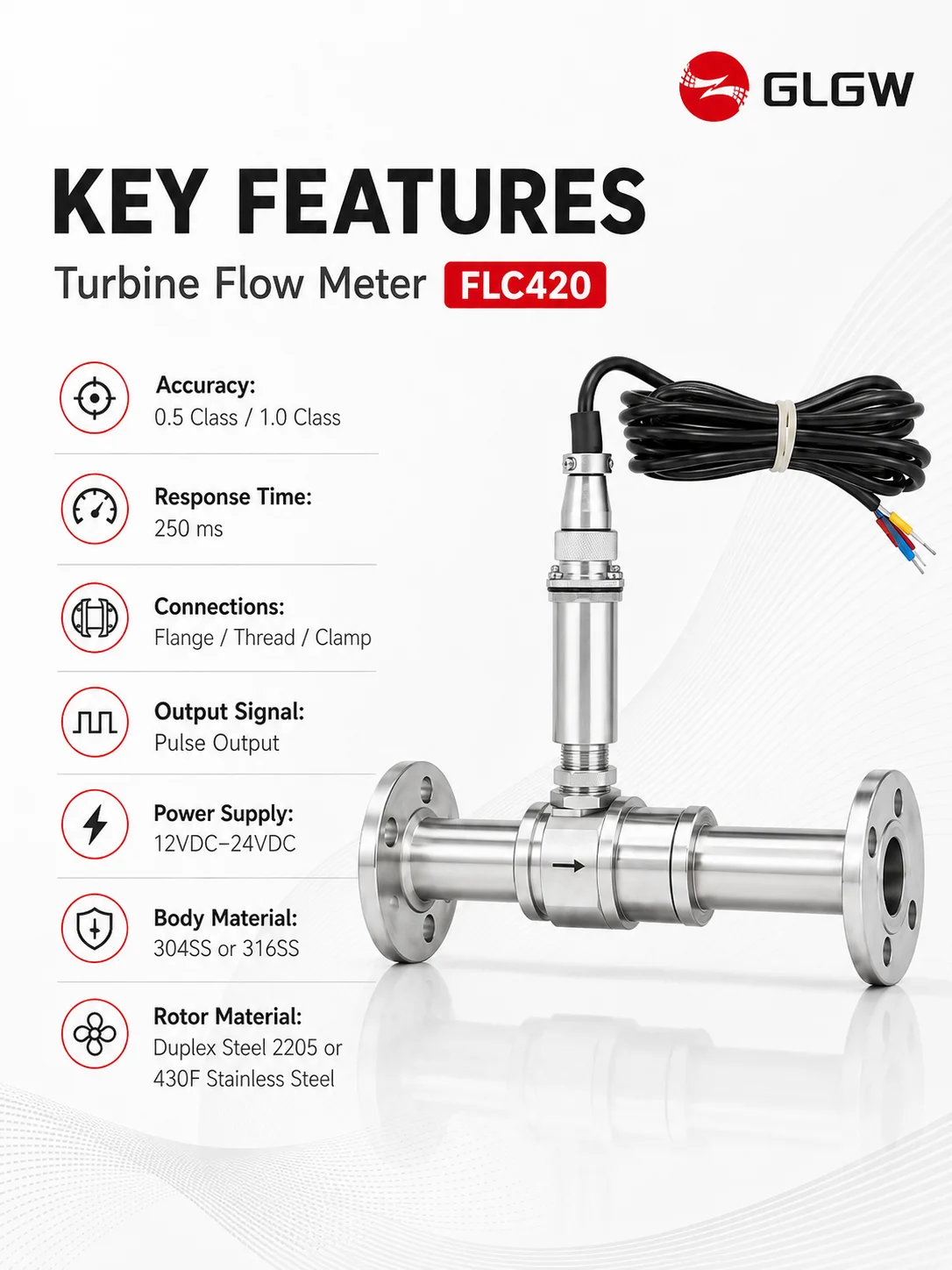

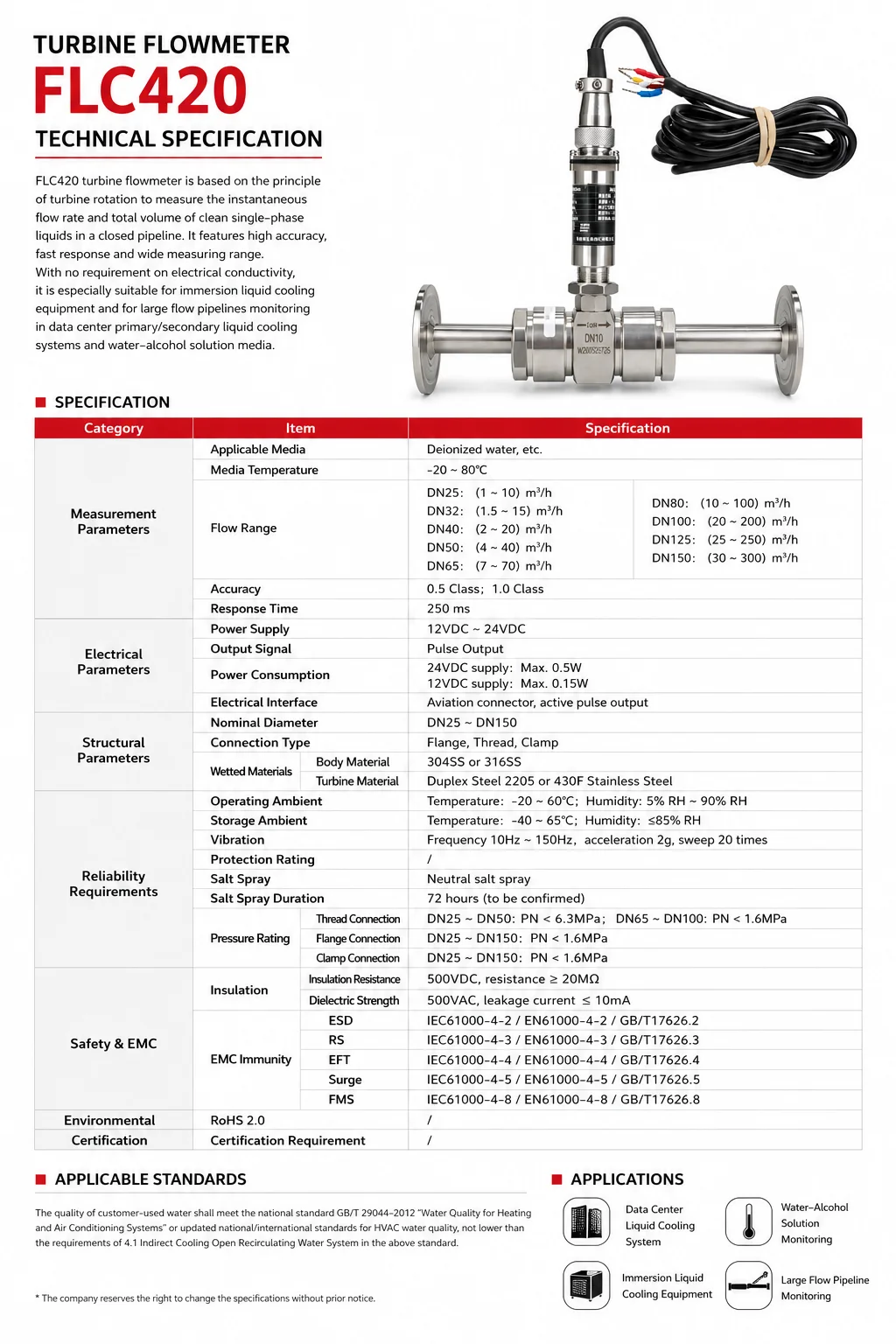

High Precision & Ultra-Fast Response: Delivers Class 0.5 / Class 1.0 measurement accuracy with a rapid response time of ≤ 250 ms for real-time flow monitoring.
Robust Industrial-Grade Materials: Body constructed from 304SS / 316SS paired with a high-durability 2205 Duplex Stainless Steel / 430F impeller, passing 72-hour neutral salt spray tests.

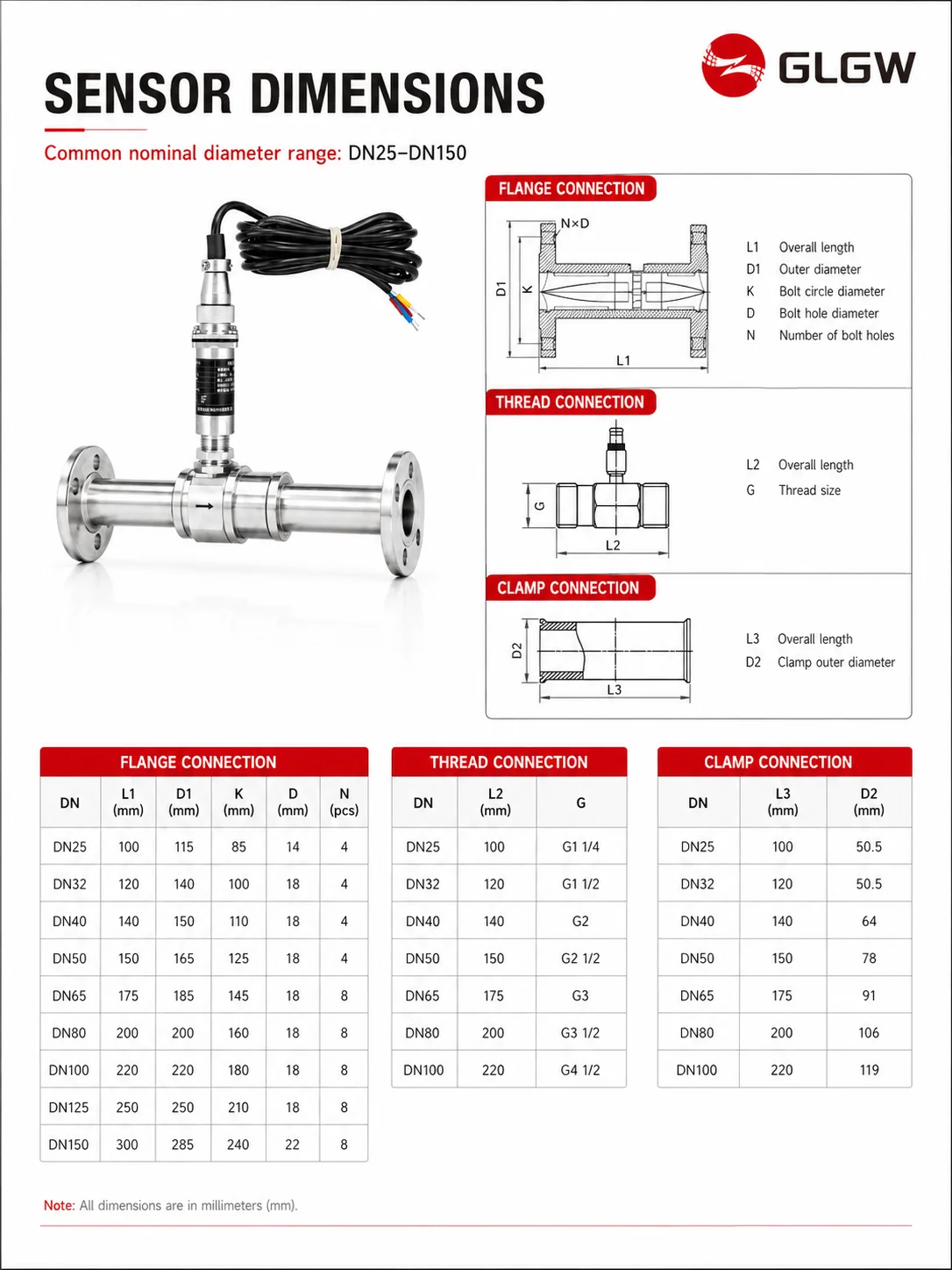

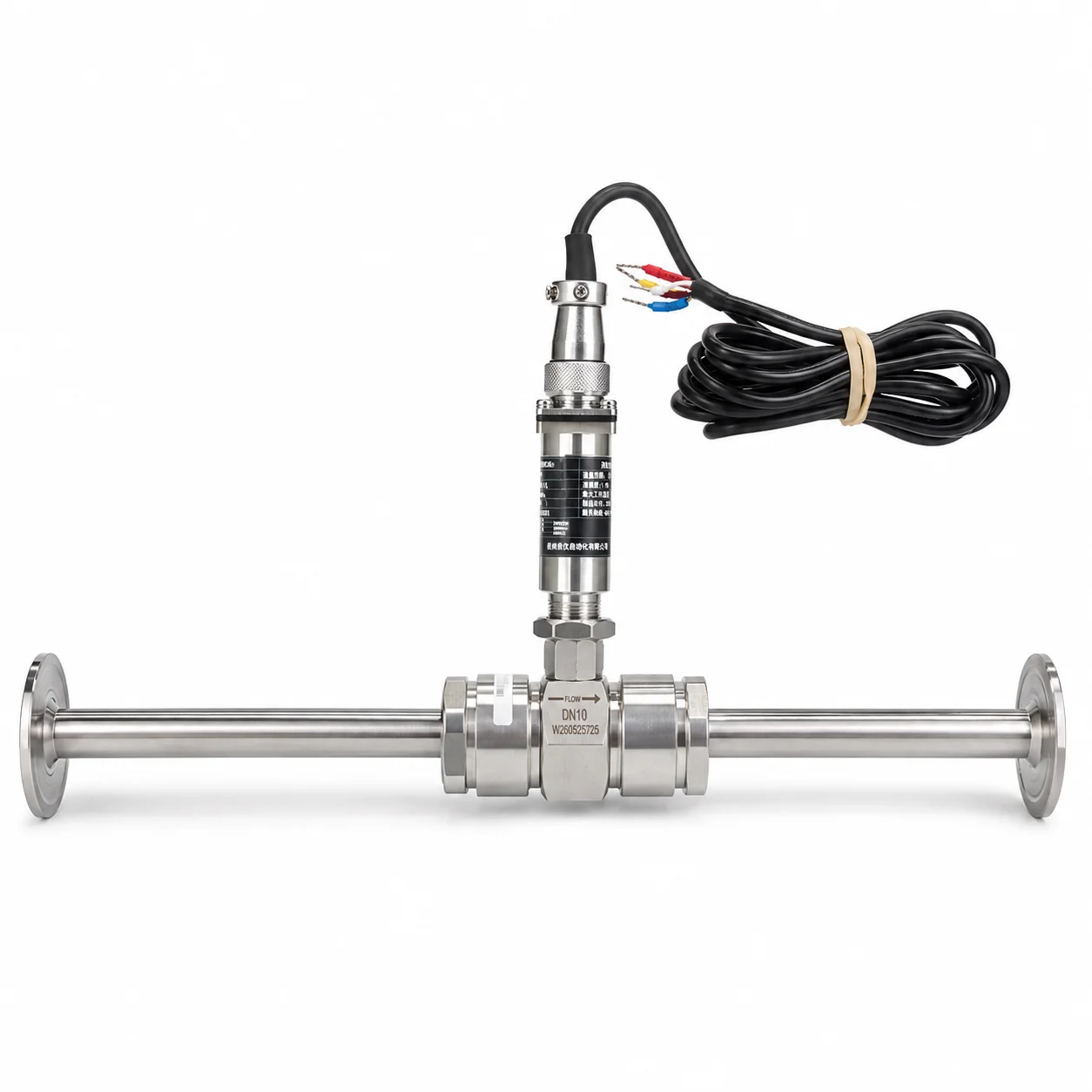

Versatile Process Connections & High Pressure: Available in DN10 to DN150 with Flange (HG/T 20592), BSP/G Thread, and Tri-Clamp options; withstands operating pressures up to 6.3 MPa (Thread) and 1.6 MPa (Flange/Clamp).

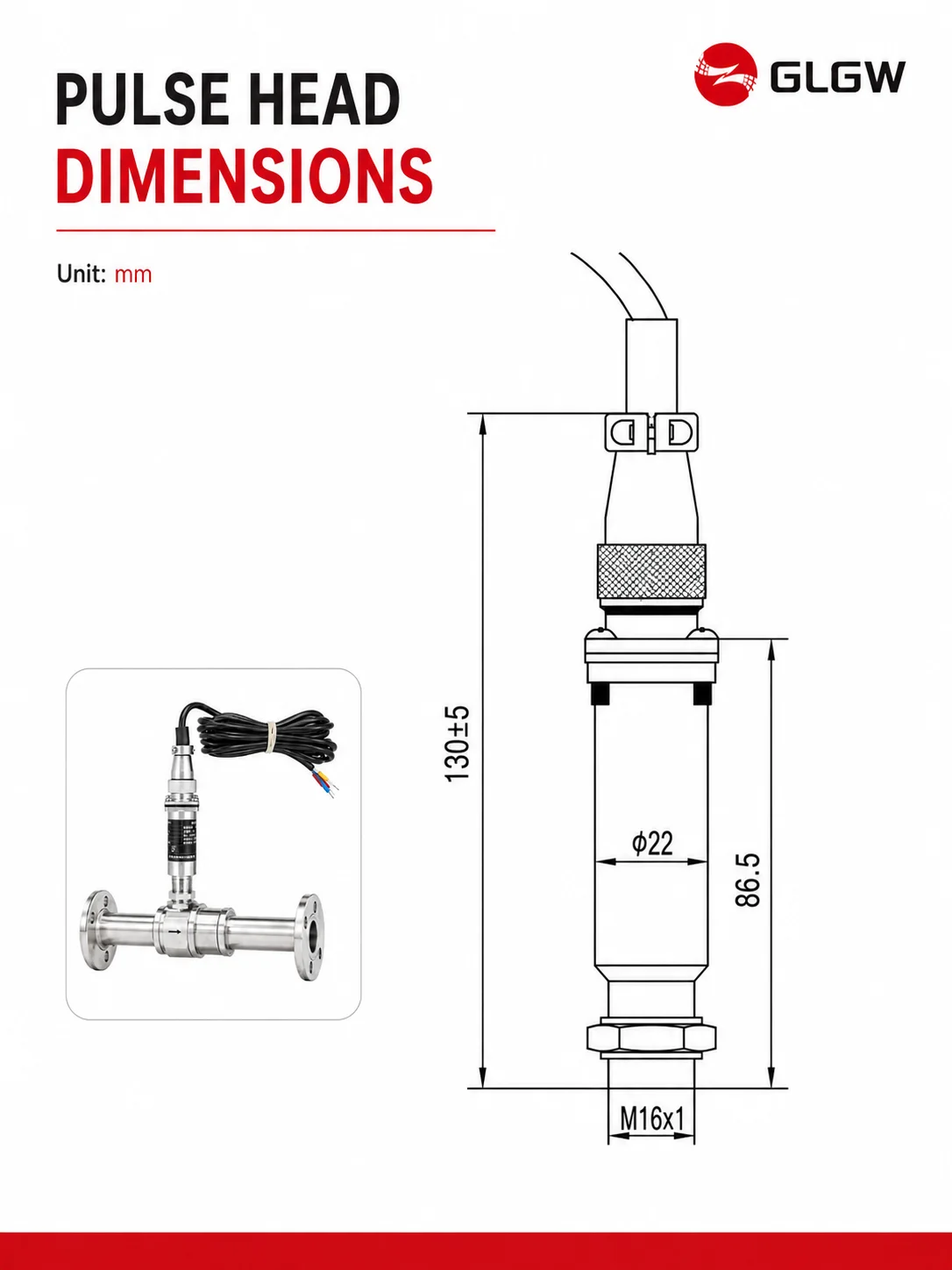

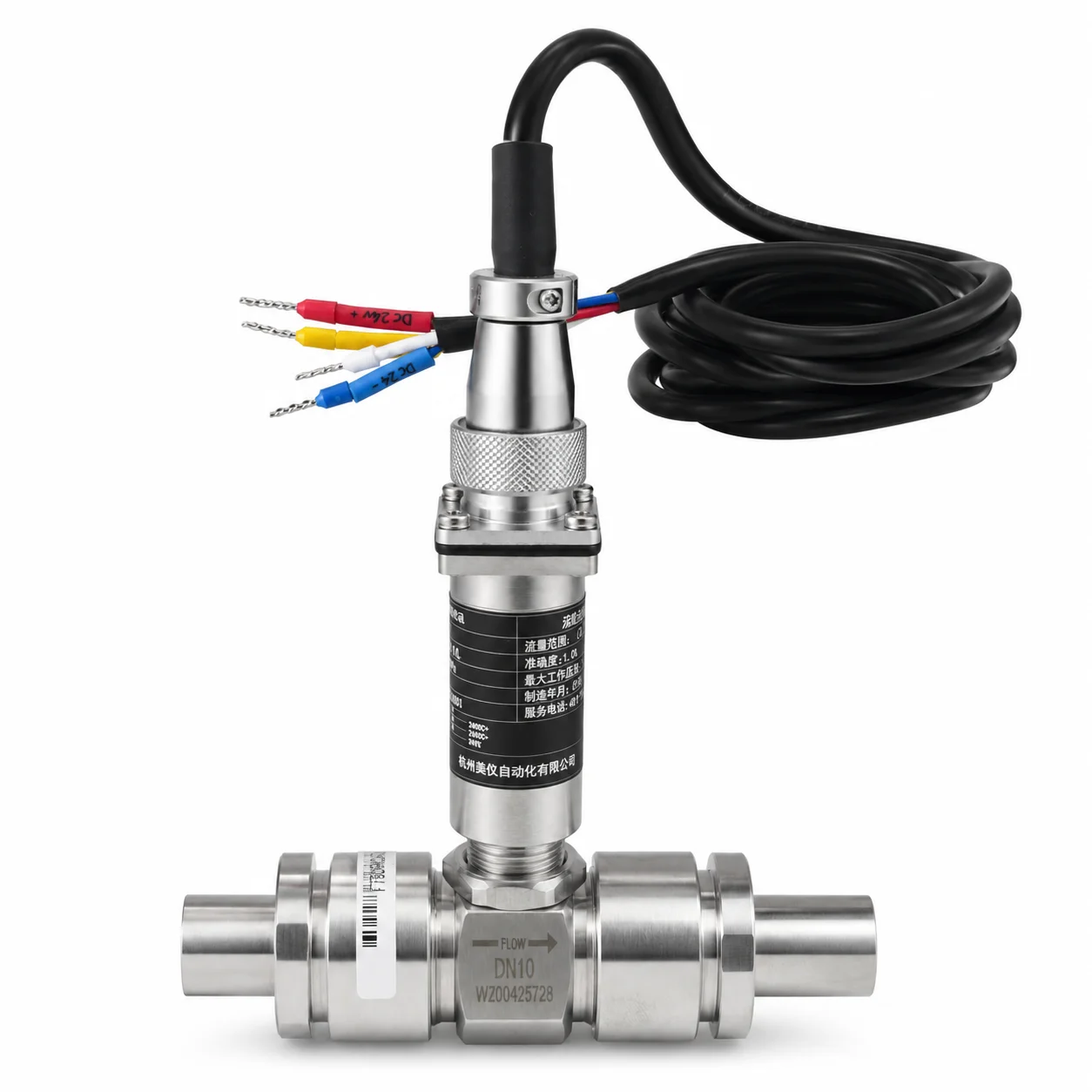

Low Power & Stable Pulse Output: Operates on 12V-24V DC (max power consumption ≤ 0.5W) with active pulse output via an industrial 4-wire aviation plug.

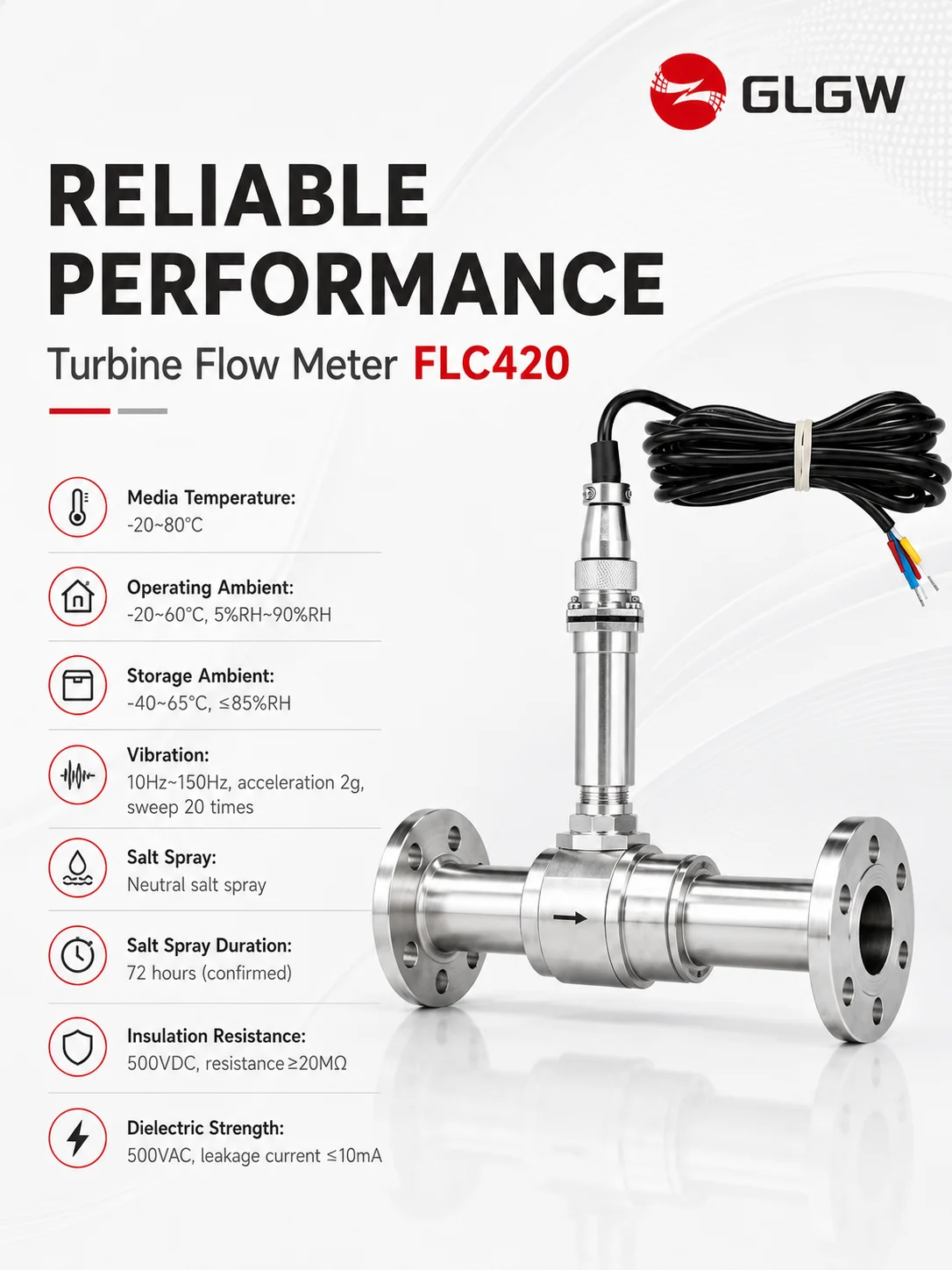

Superior Reliability & EMC Protection: Built to operate from -20°C to +80°C (optional up to 150°C) with comprehensive immunity against ESD, EFT, Surge, and Power Frequency Magnetic Fields (IEC 61000-4 series).

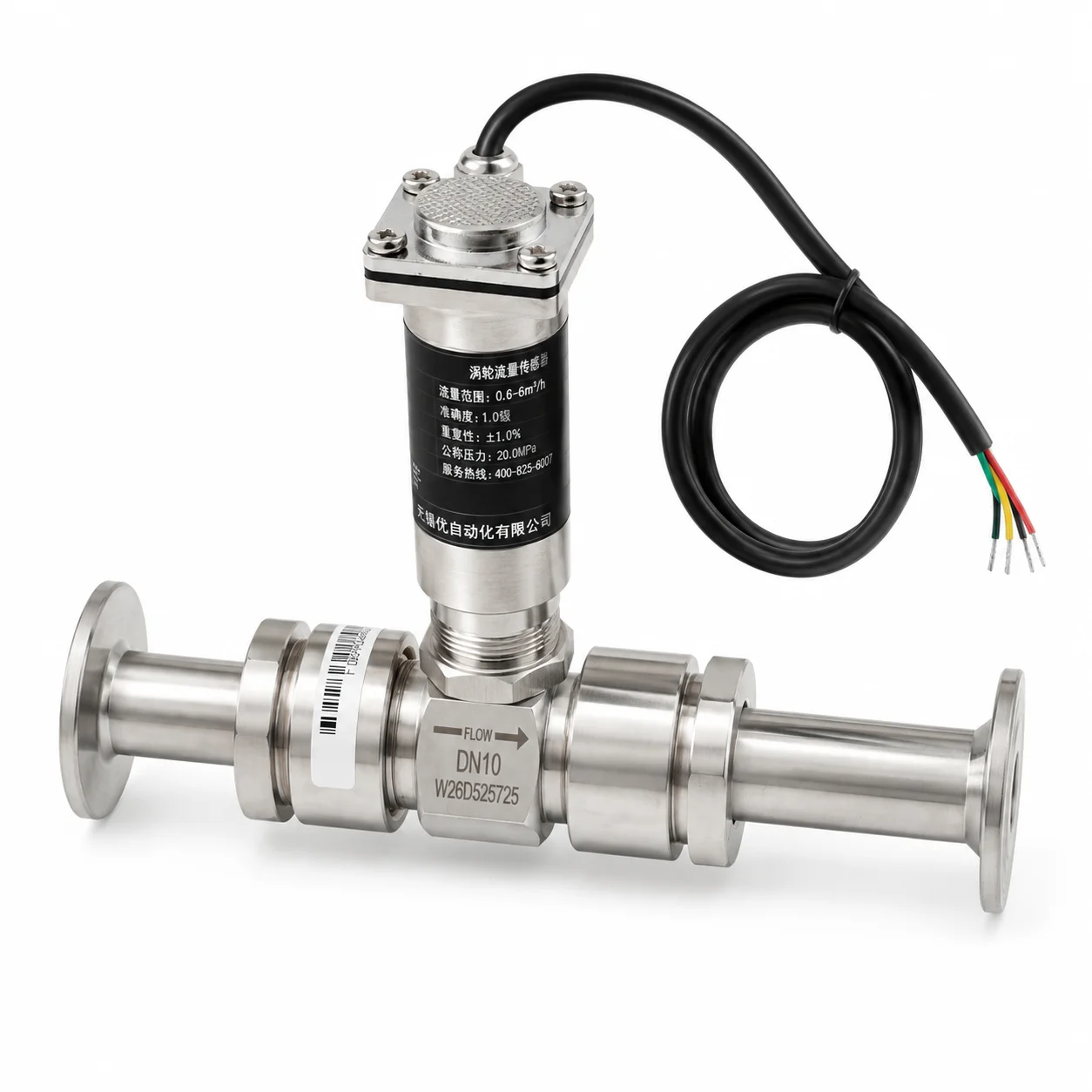

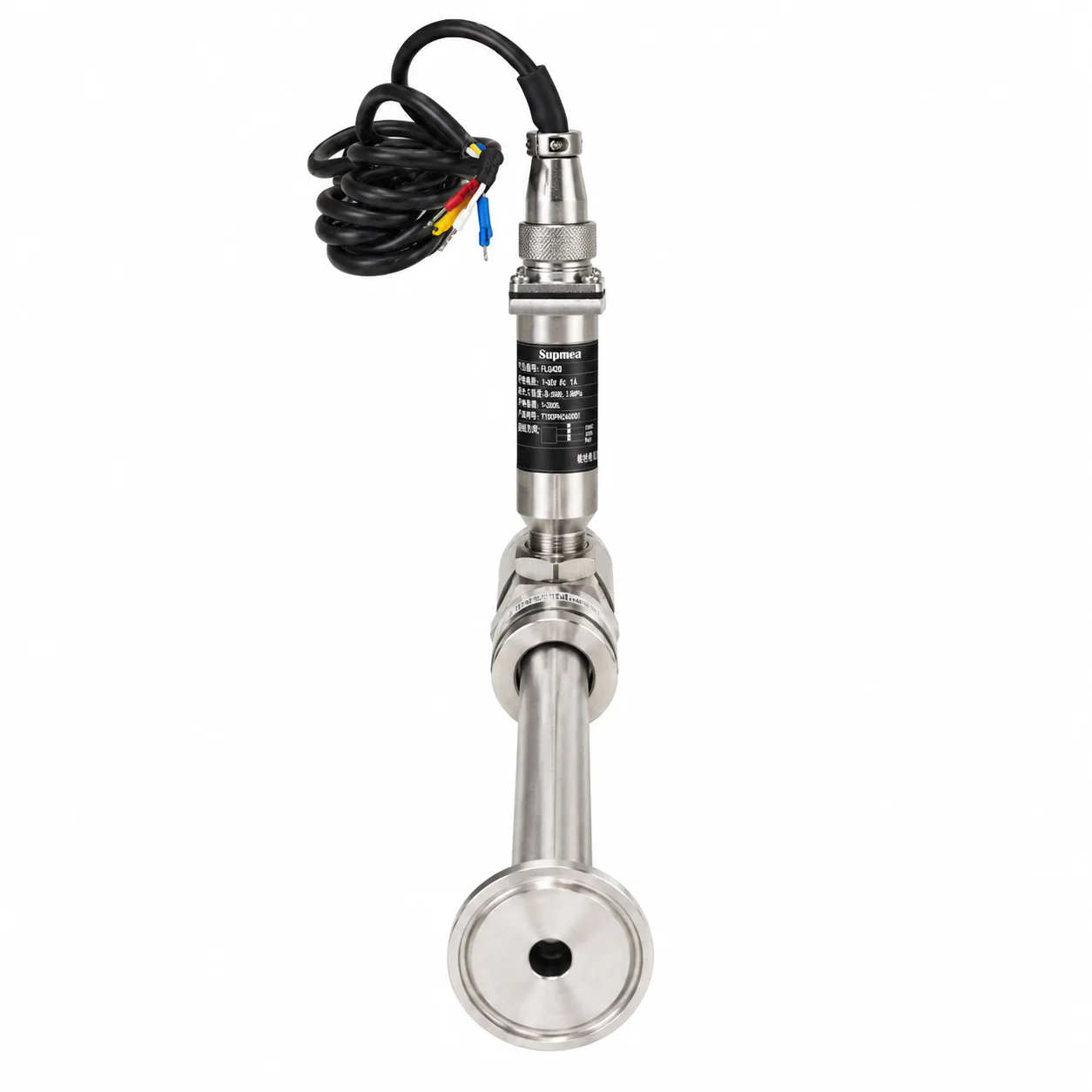

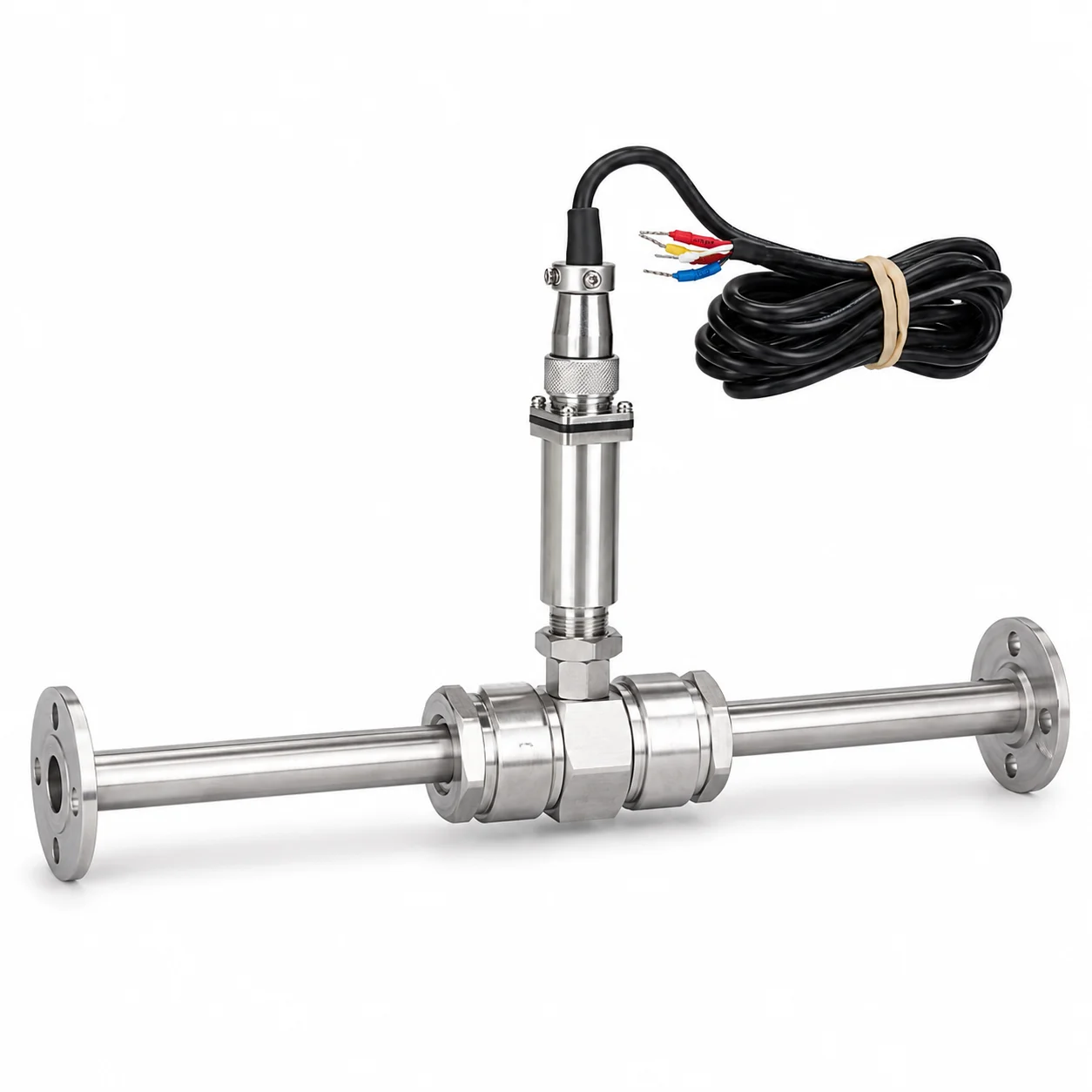

Fast Response 250ms Inline Turbine Flowmeter Sensor 12V 24V DC Active Pulse Mag Turbine Meter FLC420
Spu:
1601937634968
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd., established in 2025, specializes in high-precision flow measurement solutions. With 51-100 employees, the company offers OEM/ODM services, focusing on stainless steel turbine flow meters for aviation and industrial applications. Its products achieve +/-0.05% accuracy, supporting DN25-DN150 pipe diameters and fluid cooling applications.
FAQs

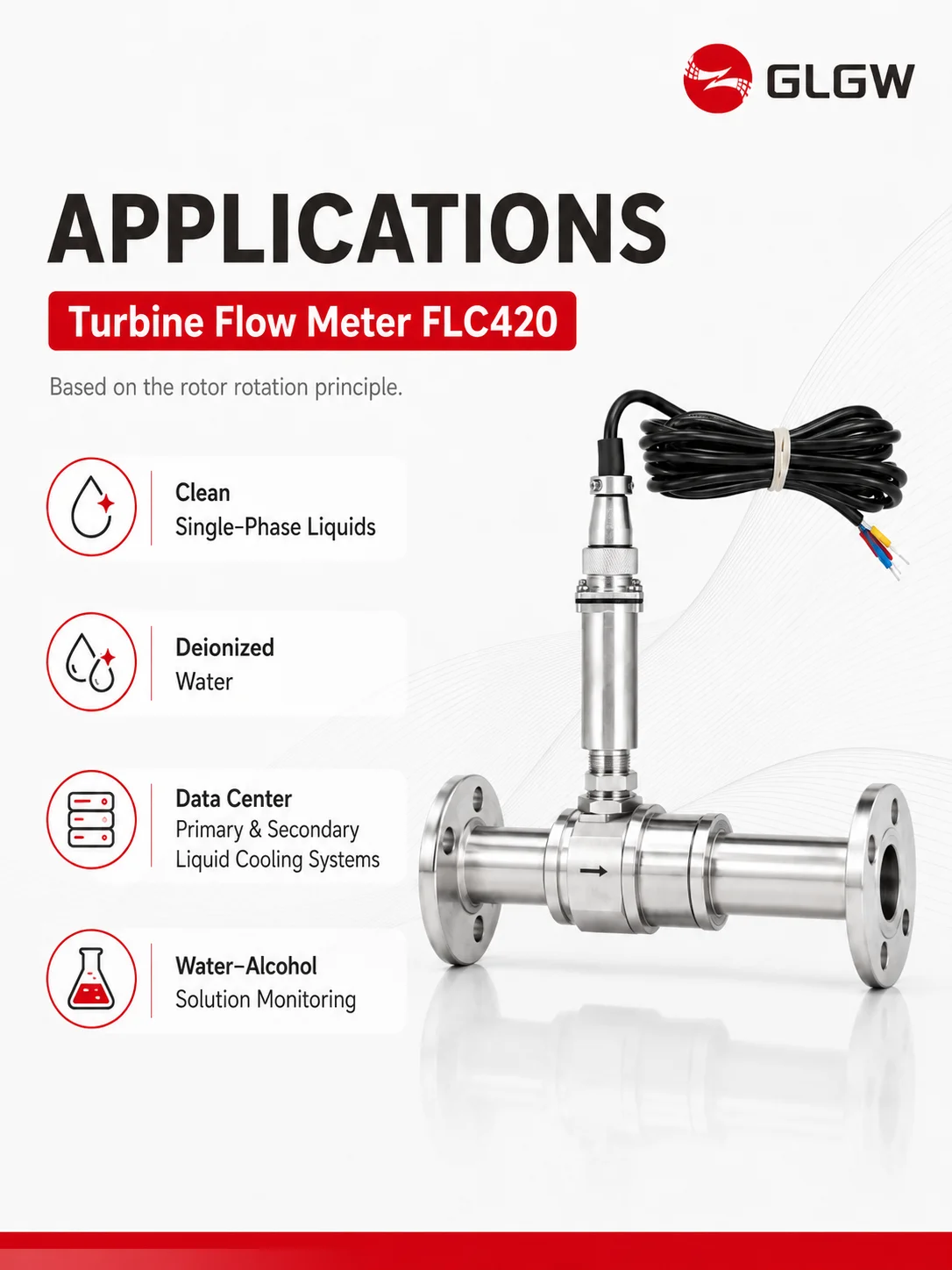

What media and applications is the FLC420 turbine flow meter suitable for?
The FLC420 is designed for clean, single-phase liquids with no conductivity requirements. It is ideal for data center immersion liquid cooling, primary/secondary cooling loops, water-glycol solutions, and deionized water flow monitoring.
What are the measurement accuracy and response speed?
The flow meter offers standard Class 1.0 and high-precision Class 0.5 accuracy with an ultra-fast response time of ≤ 250 ms, ensuring instant and accurate flow rate feedback for liquid cooling management
What process connections and pressure ratings are available?
We offer Flange (HG/T 20592), BSP/G Thread, and Tri-Clamp connections. Pressure ratings reach up to PN6.3 MPa for DN25-DN50 thread connections and PN1.6 MPa for flange, clamp, and larger thread connections
