High Accuracy & Zero Pressure Loss: Offers standard ±0.5% (optional ±0.3%) high accuracy with bidirectional measurement. The obstructionless design features no moving parts, ensuring zero pressure loss and preventing clogging.

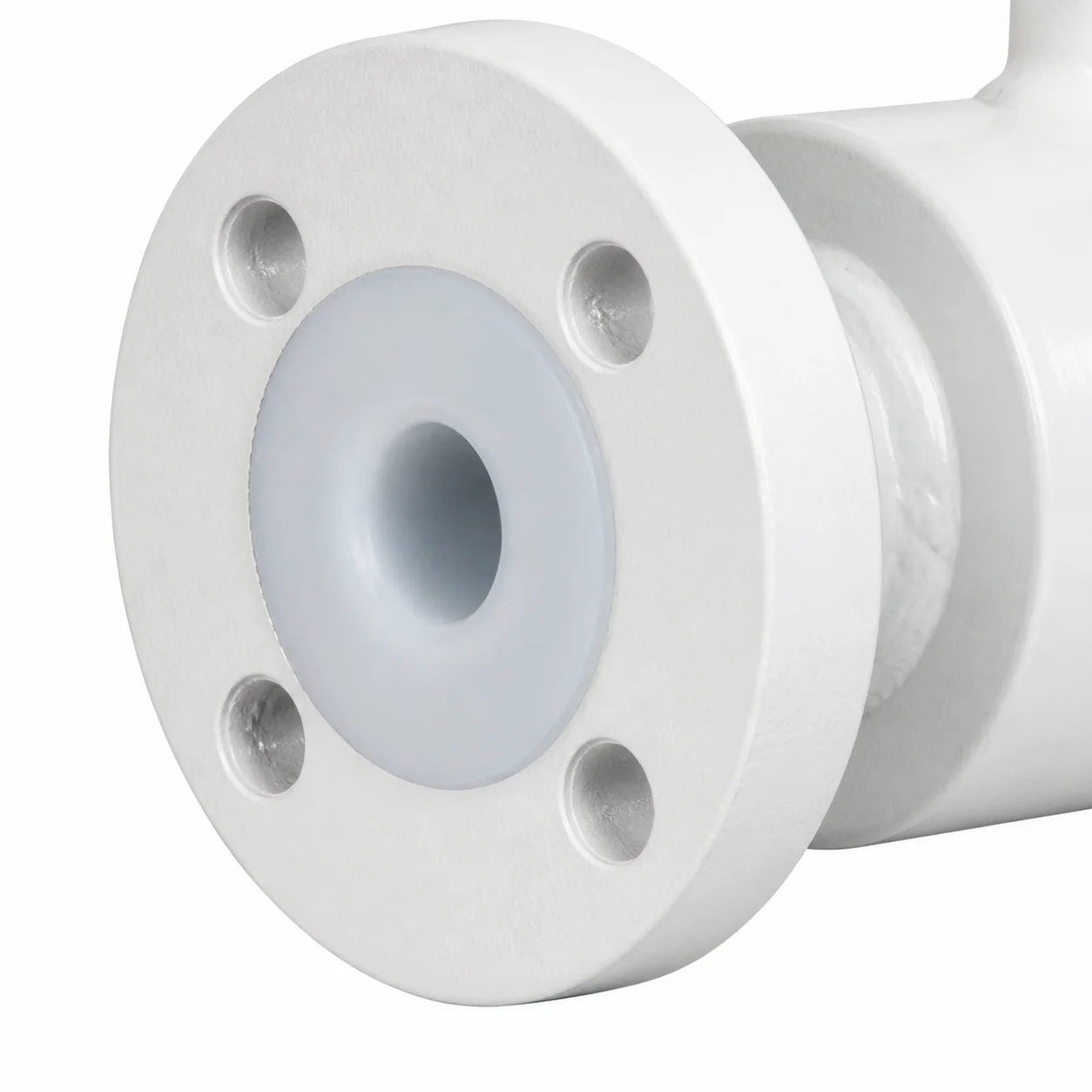

Superior Corrosion & Heat Resistance: Built with a durable PTFE liner (temperature range: -10°C to 120°C), 316L stainless steel electrodes (Hastelloy B/C optional), and a rugged 304SS body for exceptional chemical resistance.
Smart Integration & Flexible Outputs: Standard 4-20mA, RS-485 Modbus, and pulse outputs compatible with 24V DC / 220V AC power supplies, enabling seamless connection to PLCs, SCADA, and DCS systems.
Industrial-Grade Ingress & Anti-Interference: Features IP65 (compact type) / IP68 (remote type) protection, strong EMC electromagnetic immunity, and CE/RoHS compliance for stable performance in harsh environments.
Versatile Applications: Specially optimized for conductive liquids (>30 μS/cm), making it ideal for data center liquid cooling (CDU systems), HVAC chillers, water treatment, and chemical processing pipelines.

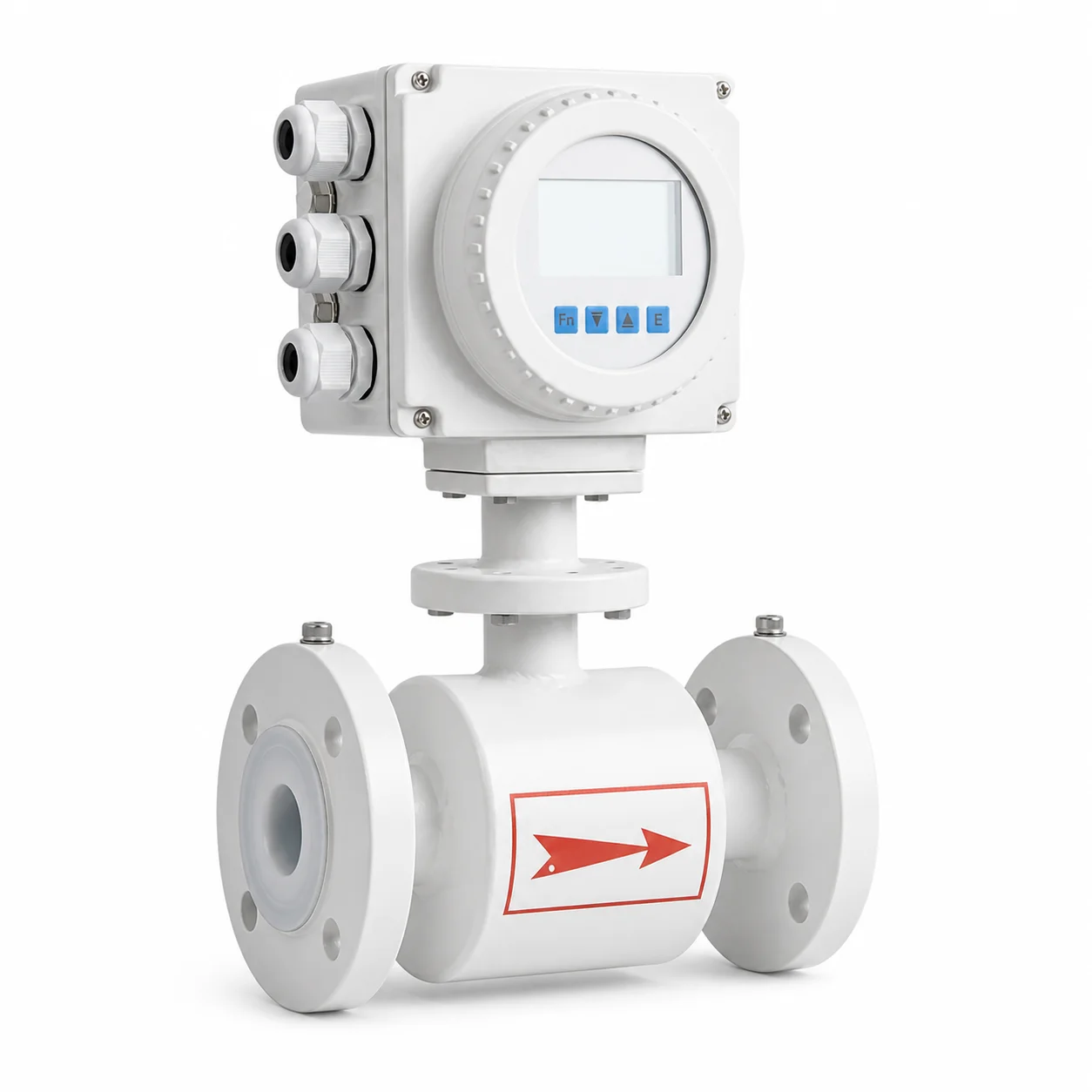

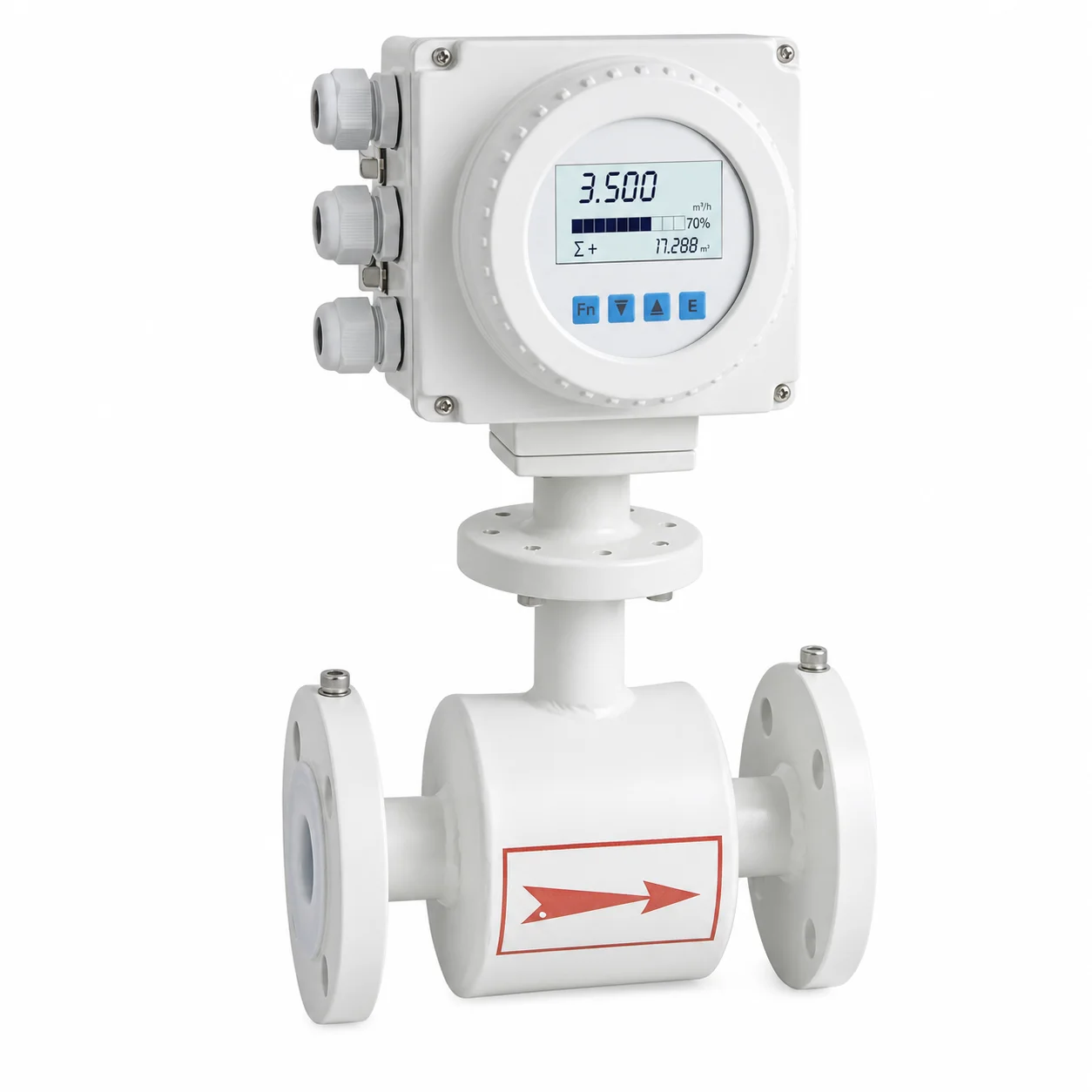

IP65 IP68 Integrated Remote Type Electromagnetic Water Flow Sensor with LCD Display RS485 Modbus Mag Meter FMC240
Spu:
1601937690514
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd. is a precision manufacturing enterprise established in 2025, specializing in industrial flow meters. With 51-100 employees, it serves a domestic market of 50.0% and exports to North America, South America, and Eastern Europe. Its products include high-accuracy electromagnetic flow meters with ±0.5% precision and IP65/IP68 protection, compliant with CE/RoHS standards.
FAQs
What kind of medium can the FMC240 flowmeter measure?
It is designed for conductive liquids with electrical conductivity > 30 μS/cm, including cooling water, tap water, industrial wastewater, acids, and alkalis. It is widely used in data center liquid cooling (CDU systems), HVAC, and water treatment pipelines.
What is the measurement accuracy and pressure loss?
The FMC240 offers ±0.5% standard accuracy (±0.3% optional) with bidirectional flow measurement. Because it has no internal moving parts or flow obstructions, it creates zero pressure loss and prevents clogging.
What are the straight pipe length requirements for installation?
To ensure rated accuracy, install the sensor with at least 10D (10 * pipe diameter) of straight pipe upstream and 5D downstream. Make sure the pipe remains fully filled with liquid during operation.
What power supply and output signals are supported?
It supports 24V DC, 220V AC, and low-power 12V DC power inputs. Output options include 4-20mA current, RS-485 Modbus RTU, and pulse/frequency output for direct connection to PLC and SCADA systems.
What is the difference between compact and remote type?
The compact type features IP65 ingress protection. The remote (split) type provides an IP68 waterproof rating for the flow sensor, making it ideal for underground, high-vibration, or submerged pipeline environments.
