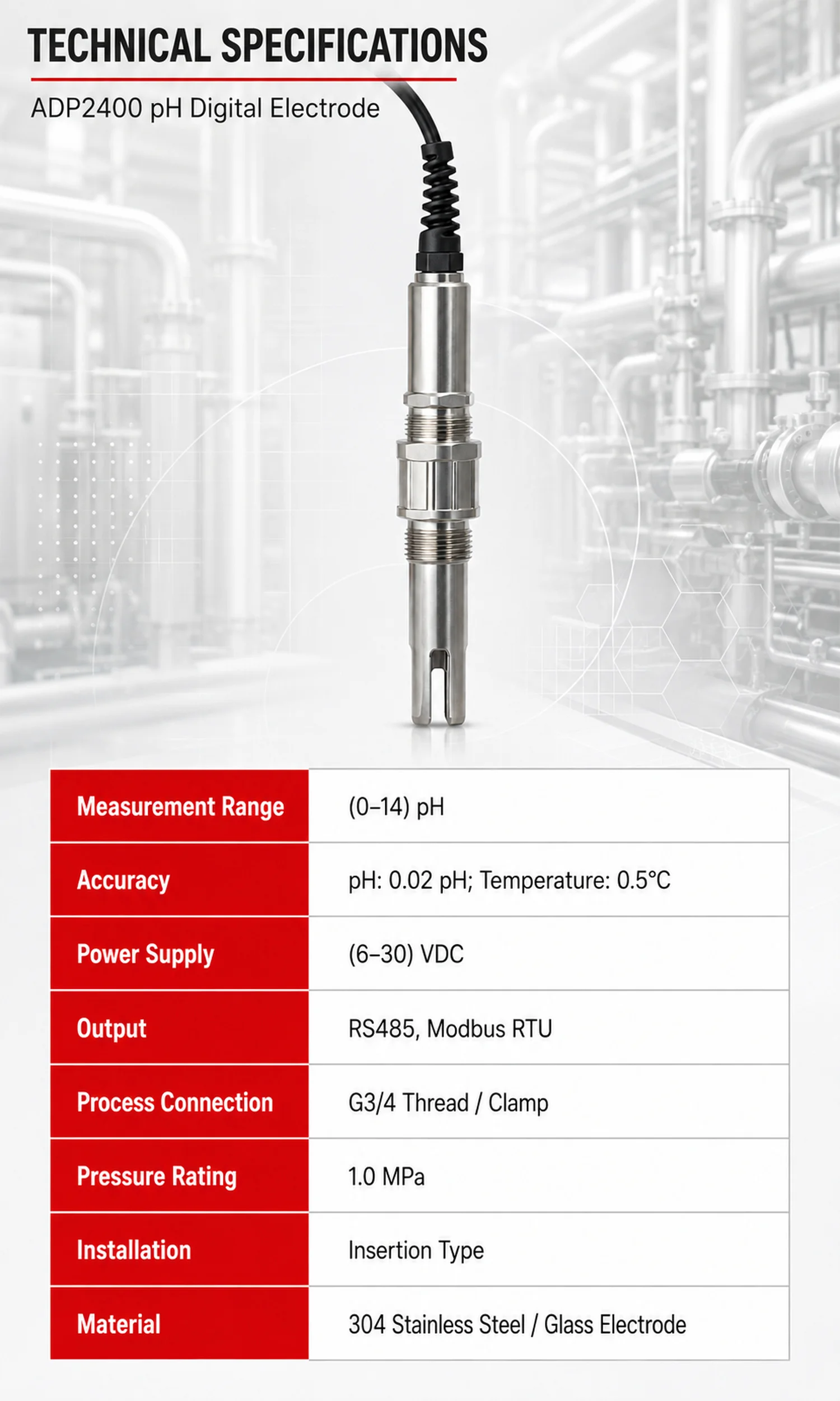

- High-Precision Measurement: Features accurate ±0.02 pH precision across a full 0.00-14.00 pH range, equipped with -10°C to 130°C automatic/manual temperature compensation and rapid 2/3-point calibration.
- RS485 Modbus RTU Output: Digital signal output provides superior anti-interference performance and seamless integration with PLCs, SCADA, and IoT monitoring systems.
- Heavy-Duty 304 Stainless Steel: Robust 304SS housing with IP65 ingress protection, 1.0 MPa pressure resistance, and 72-hour neutral salt spray corrosion resistance.
- Dedicated Liquid Cooling & HVAC Design: Specially engineered for data center liquid cooling loops and industrial circulating cooling water systems to prevent pipeline scaling and corrosion.
- Flexible Process Connection: Supports standard G3/4" thread and 50.5mm tri-clamp insertion mounting with DC 6-30V (12V DC standard) wide voltage operation.
IP65 Insertion Type Digital Glass pH Electrode RS485 Output Direct Immersion pH Sensor for CDU Cooling Water Monitoring ADP2400
Spu:
1601937693552
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd. is a materials technology enterprise established in 2025, specializing in industrial sensors and measurement solutions. With 51-100 employees, the company serves a domestic market of 50.0%, alongside significant presence in North America, South America, and Eastern Europe. Its products include high-precision pH sensors with ±0.02 pH accuracy and RS485 Modbus RTU output, tailored for industrial applications.
FAQs
What communication protocol and output does the ADP2400 pH sensor support?
The ADP2400 features a standard RS485 digital interface supporting the Modbus RTU protocol. It enables reliable, long-distance data transmission and can directly integrate with PLCs, DCS, SCADA systems, and IoT environmental monitoring platforms without requiring a secondary transmitter.
What applications is this digital pH electrode designed for?

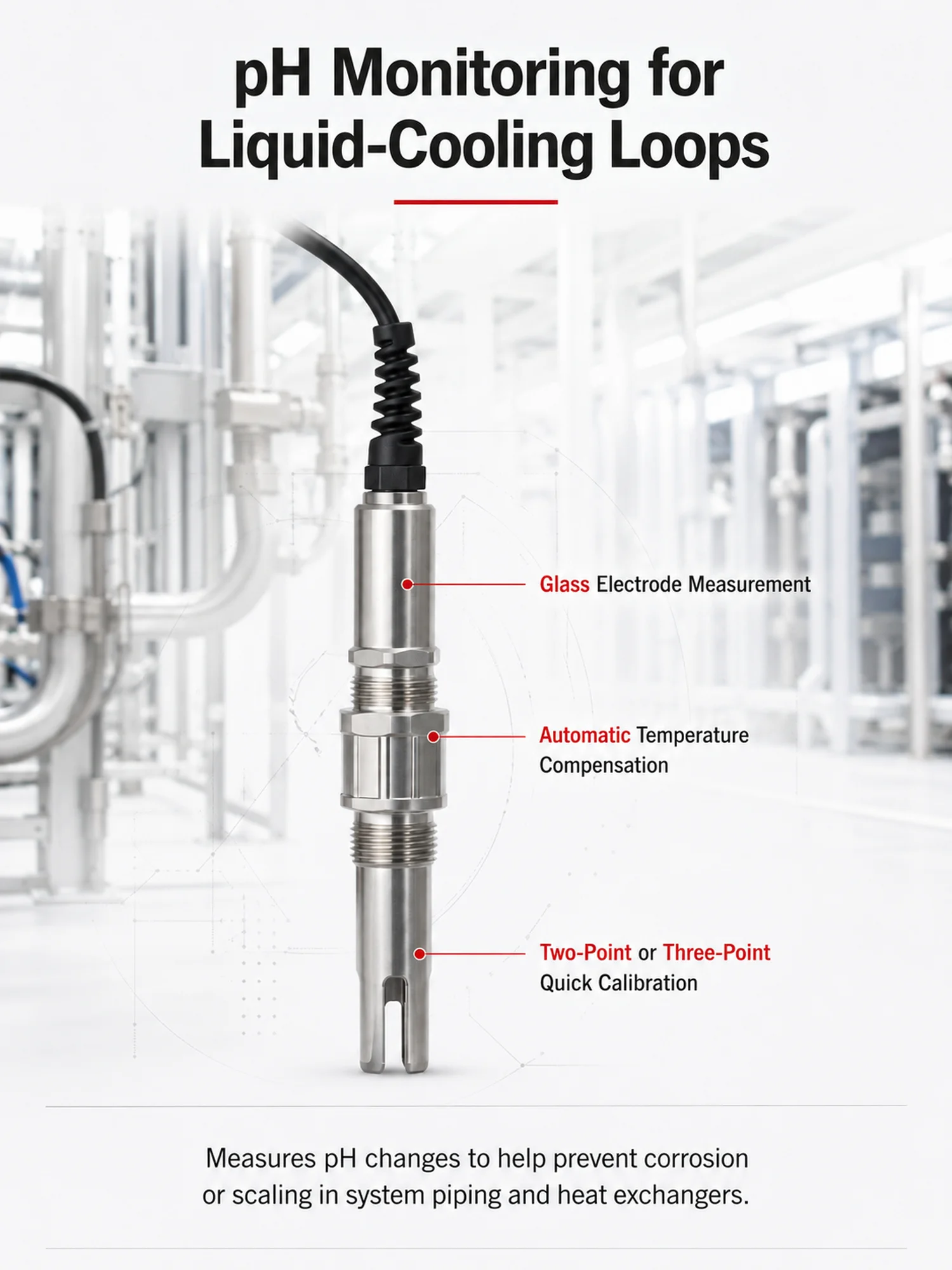

It is specially engineered for data center liquid cooling circuits, HVAC circulating cooling water, and industrial water treatment systems. It provides continuous in-line monitoring to prevent acid/alkaline corrosion and scaling in pipelines and heat exchangers.
How is the sensor calibrated and does it support temperature compensation?
Yes. The electrode supports fast 2-point or 3-point calibration and features automatic/manual temperature compensation across a wide range of -10°C to 130°C, ensuring high measurement precision of ±0.02 pH throughout its operational lifecycle.
What process connections and pressure ratings does the sensor have?

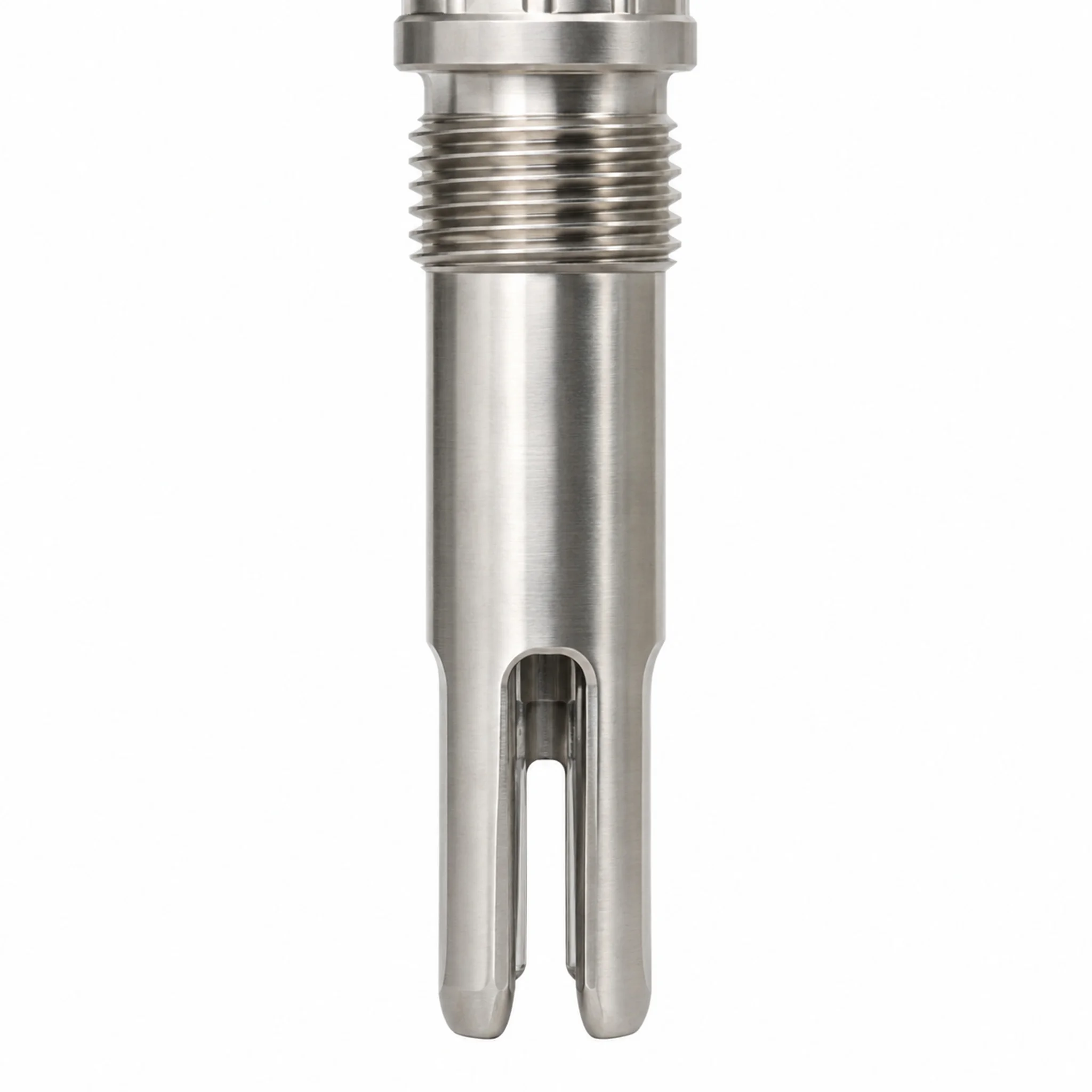

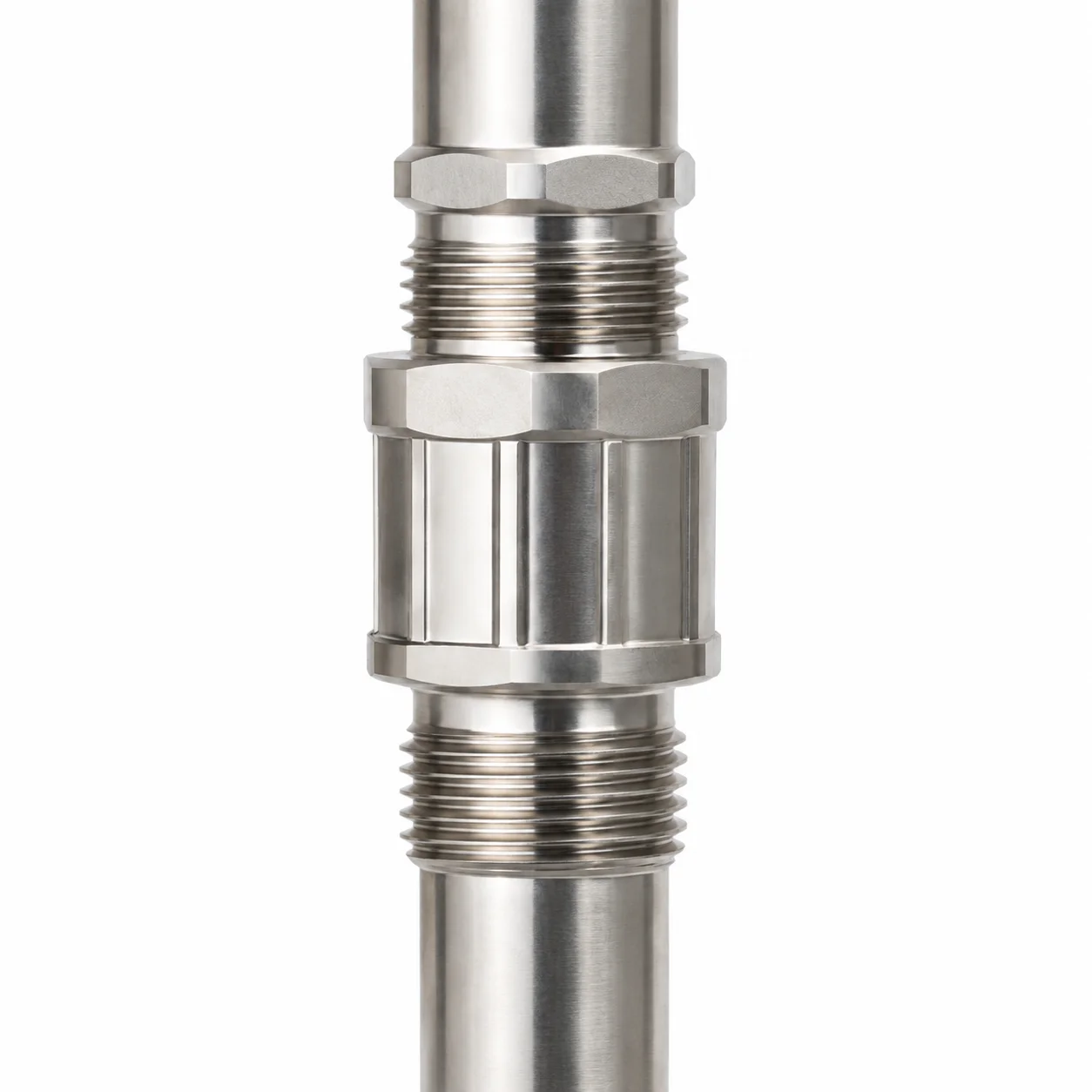

The sensor adopts an in-line insertion design with either G3/4" thread or 50.5mm tri-clamp connections. Constructed with a robust 304 stainless steel body, it withstands operating pressures up to 1.0 MPa and carries an IP65 protection rating.

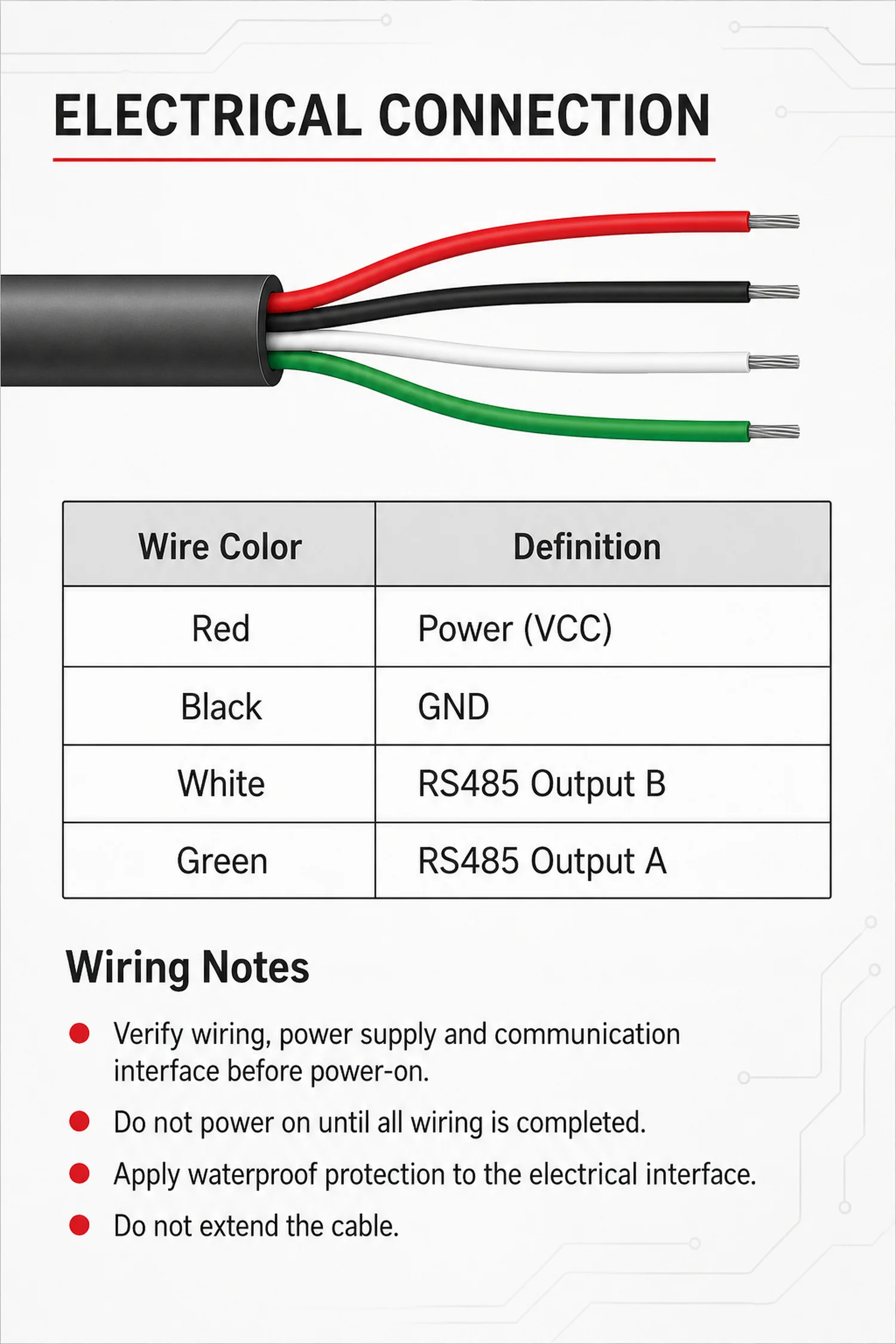

What is the operating voltage and cable wiring configuration?

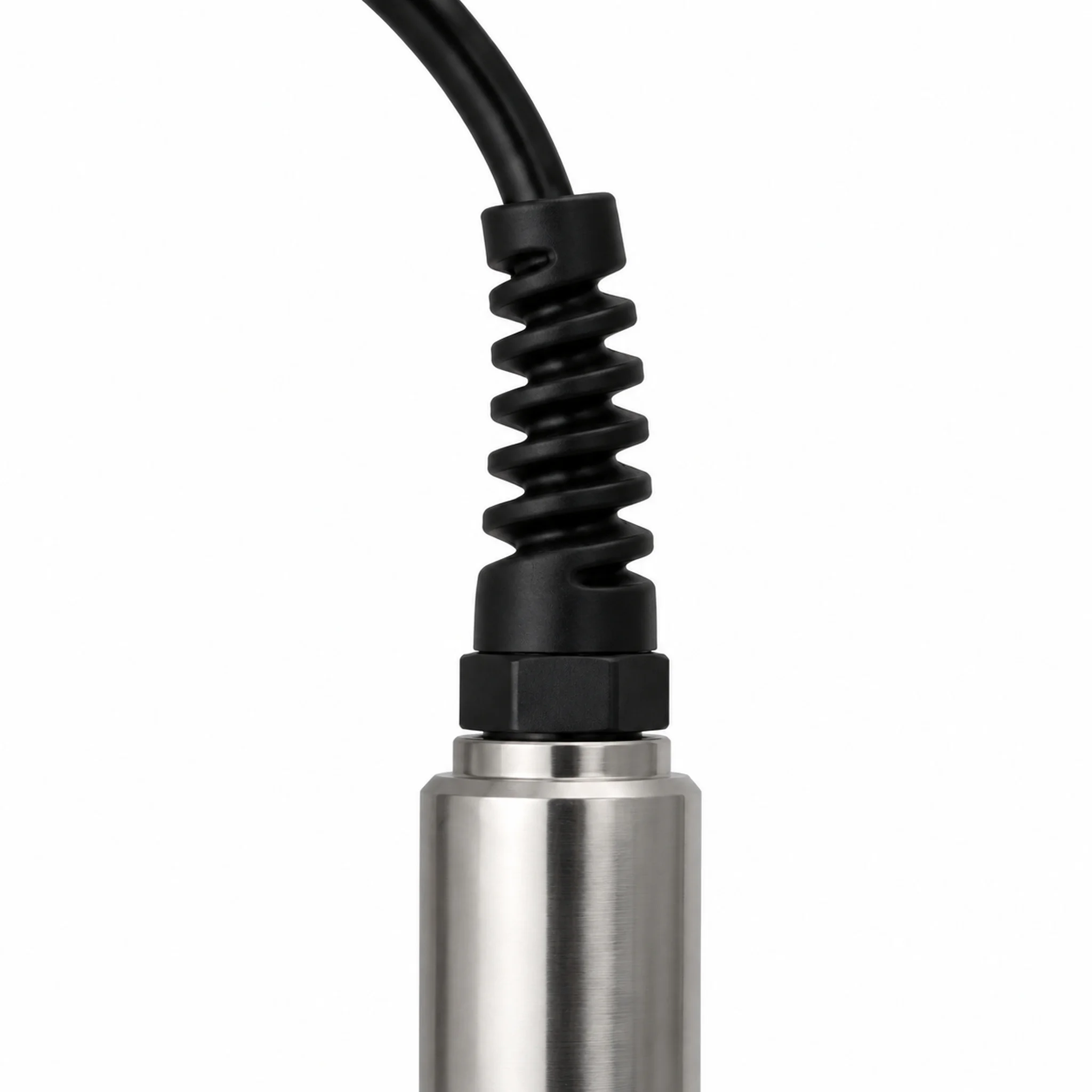

The sensor operates on a wide DC supply of 6-30V (standard 12V DC). The direct-lead cable wiring is: Red (Power VCC), Black (GND), Green (RS485 A), and White (RS485 B).
