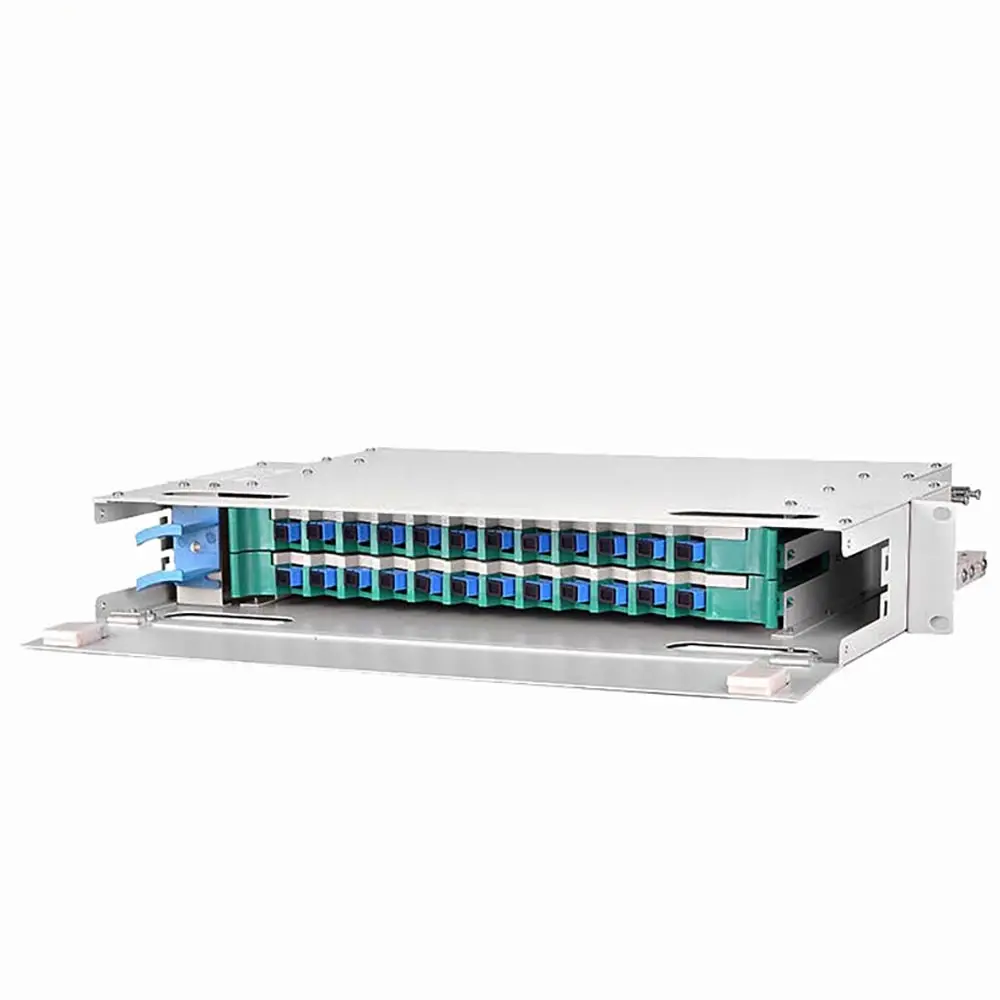

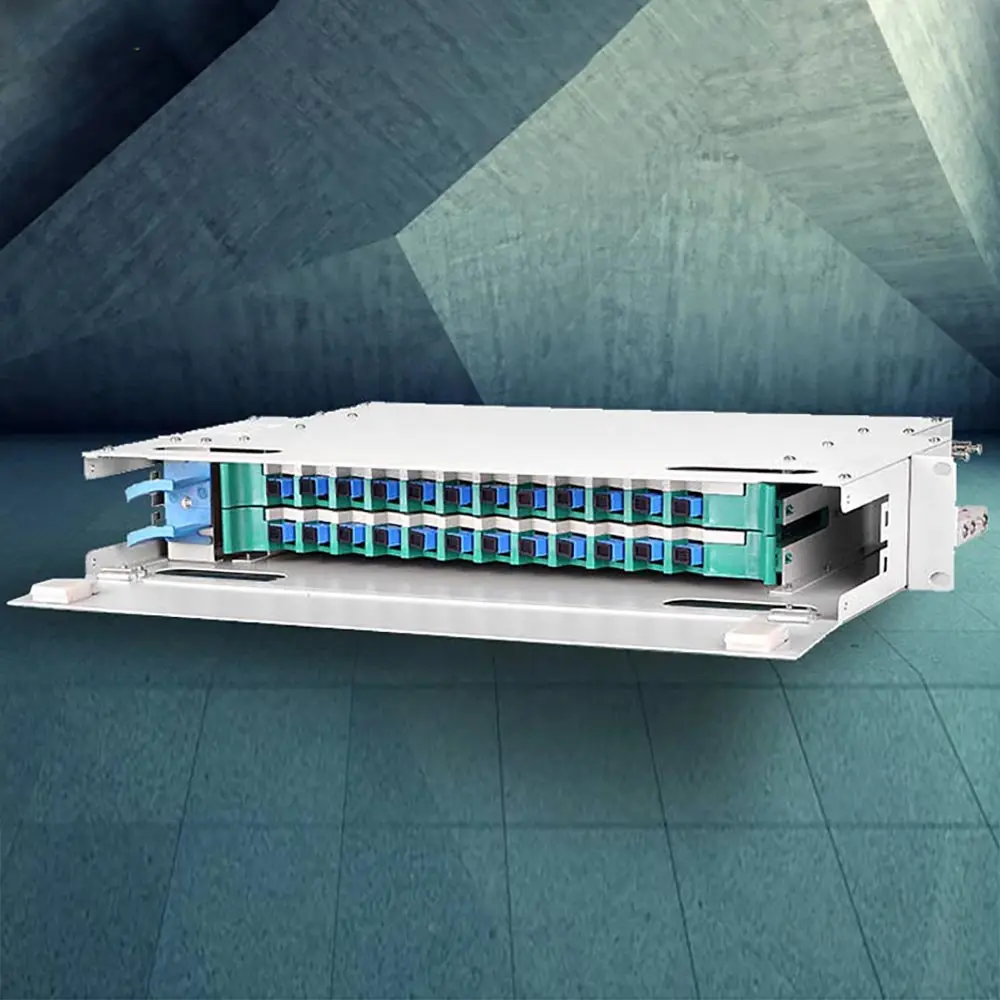

Rack Mount ODF Fiber Distribution Frame 24 Port SC Modular Steel Panel Easy Splicing Tray Compact Patch Cabinet Design
Fiber Capacity:12 ~288 Cores
Connector Type:SC/FC/LC/ST
Material:Thickened Cold Rolled Steel
Structure:Sliding Modular Rack Mount
Spu:
1601623240923
- Overview
- Recommended Products
Company Profile
Ningbo GLGW Nova Material Co., Ltd. (GLGW), the overseas service center of Zhejiang Shiteng Technology Group Co., Ltd., brings over 16 years of expertise in structured cabling, wireless communication, data center connection solutions, and data application systems. As part of a national high-tech enterprise founded in 2009 and headquartered in Ningbo—home to the world’s largest port—GLGW operates a highly data-driven and intelligent closed-loop workflow. This ensures fully visualized and traceable processes that enhance accuracy, efficiency, and flexibility. Our integrated ecosystem supports over 5,000 manufacturing partners and nearly 200,000 corporate clients globally, backed by 15 supply chain companies, 80+ subsidiaries, and a 1,000+ member service team. With three consecutive years of annual revenue exceeding USD 400 million and an average growth rate above 30%, GLGW delivers professional, high-quality services across the entire commercial loop—from R&D and technical support to logistics and after-sales service.
Among our fiber optic infrastructure solutions, the Rack Mount ODF Fiber Distribution Frame delivers a 24-port SC modular steel panel designed for easy splicing tray access with a compact patch cabinet architecture. This rack mount ODF (Optical Distribution Frame) functions as a centralized fiber termination, patching, and splicing enclosure, providing organized, protected housing for up to 24 SC fiber optic connections within a space-efficient rack mount footprint. The modular steel panel construction allows for flexible configuration with interchangeable SC adapter panels, splice trays, and cable management accessories, accommodating diverse fiber deployment requirements. The easy splicing tray design provides convenient access to fusion splice protection without removing adjacent fibers or complex disassembly, significantly reducing installation time and simplifying maintenance in space-constrained environments. The compact patch cabinet design maximizes fiber termination density per rack unit while maintaining proper cable bend radius, fiber routing, and airflow for reliable operation in smaller data centers, telecom closets, and building distribution frames. Manufactured under GLGW's fully traceable closed-loop workflow, each rack mount ODF undergoes dimensional verification, adapter alignment testing, and cable routing validation before shipment, reflecting our commitment to consistent quality. This fiber distribution frame includes front cable entry ports with bend radius protection, integrated easy-access splice tray mounting positions, removable front doors, and complete grounding provisions for safety.
Fiber Capacity |
12 ~288 Cores |
||||||
Connector Type |
SC/FC/LC/ST |
||||||
Material |
Thickened Cold Rolled Steel |
||||||
Structure |
Sliding Modular Rack Mount |
||||||
Installation |
19 Inch Standard |
||||||
Cable Management |
Built in Splice Tray |
||||||
Application |
Data Center Building Cabling Room |
||||||
Customization |
Interface or Capacity Optional |
||||||
Products Description
Key Advantages
24-Port SC Compact Configuration – This rack mount ODF provides 24 SC ports in a compact rack mount footprint, ideal for smaller data centers, telecom closets, and building distribution frames. The 24-port fiber distribution frame balances capacity with space efficiency.
Modular Steel Panel Construction – The ODF features modular steel panels that accept interchangeable adapter panels for SC, LC, MPO, and other connector types. This modular rack mount design adapts to diverse fiber infrastructure requirements and simplifies future upgrades.
Easy Splicing Tray Access – The easy splicing tray design provides convenient access to fusion splice protection without removing adjacent fibers or complex disassembly. This feature significantly simplifies field splicing and reduces installation time.
Compact Patch Cabinet Design – Engineered as a compact patch cabinet, this ODF maximizes fiber terminations per rack unit while maintaining proper cable bend radius, fiber routing, and airflow for reliable operation in space-constrained environments.
SC Connector Compatibility – Pre-configured for SC connectors, this fiber distribution frame accepts standard SC adapters and patch cords, ensuring compatibility with existing SC-based fiber infrastructure. The SC ports provide secure, low-loss connectivity.
Integrated Easy-Access Splice Tray Mounting – The ODF includes internal mounting positions for easy-access splice trays, accommodating fusion splice protection for field-terminated backbone cables. This rack mount frame supports both factory-terminated and field-spliced fiber installations.
Front Cable Entry with Bend Radius Protection – Front cable entry ports with integrated bend radius protection provide organized fiber routing while preventing signal loss from sharp bends. The fiber distribution frame maintains proper fiber performance.
Removable Front Doors – Removable front doors provide protection for SC fiber connectors while allowing full front access during patching and maintenance. This compact patch cabinet secures fiber connections while enabling technician access.
Complete Grounding and Bonding – The ODF includes pre-installed grounding studs and bonding points for cables, splice trays, and the frame itself, meeting telecom and data center safety requirements for proper grounding and static dissipation.
Fully Traceable GLGW Quality Assurance – Produced under GLGW's closed-loop workflow, each rack mount ODF undergoes dimensional verification, adapter alignment testing, and cable routing validation before shipment. This fiber distribution frame reflects our dedication to traceable, consistent manufacturing.
Applications
Small Data Center Main Distribution Area – Deploy this rack mount ODF in small to medium data center main distribution areas to terminate backbone cables and provide 24 SC ports for patching to equipment rows. The compact design fits space-constrained facilities.
Telecom Closet Fiber Termination – Building telecom closets use this 24-port fiber distribution frame to terminate riser cables and provide patching to floor-level network equipment. The easy splicing tray simplifies field termination.
Building Distribution Frame (BDF) – Small to medium enterprise building distribution frames use this rack mount ODF to terminate incoming fiber cables and distribute to office floors. The compact patch cabinet design maximizes limited rack space.
Remote Office and Branch Office (ROBO) Fiber Hub – Remote office locations use this SC connector ODF to terminate fiber service from providers and distribute to local network equipment. The easy splicing tray accommodates field installation.
Security Room Fiber Patching – Security operations centers use this fiber distribution frame to terminate fiber optic cables from surveillance cameras and access control systems, providing organized patching to recording equipment.
Healthcare Clinic Fiber Termination – Medical clinics use this 24-port rack mount ODF to terminate fiber backbone cables and provide patching for electronic health record systems, imaging equipment, and administrative networks.
School and Classroom Building Distribution – Educational institutions use this compact patch cabinet in school building telecom rooms to terminate campus backbone fiber and distribute to classroom network equipment.
Retail Store Fiber Service Termination – Large retail stores use this fiber distribution frame to terminate fiber service from providers and distribute to POS systems, inventory management, and security cameras throughout the store.
Government Local Office Fiber Hub – Government field offices use this rack mount ODF to terminate secure fiber networks and provide organized patching for administrative systems. The modular steel panel supports mixed connector types.
Laboratory Fiber Distribution – Research laboratories use this 24-port SC ODF to terminate fiber cables from scientific instruments and provide patching to data acquisition systems. The easy splicing tray simplifies reconfiguration.
Temporary Event Network Infrastructure – Event network technicians use this compact fiber distribution frame for temporary fiber termination in broadcast compounds and event venues, where space is limited and rapid deployment is required.
At GLGW, we are committed to building long-term partnerships and delivering exceptional value. The Rack Mount ODF Fiber Distribution Frame exemplifies our dedication to quality, reliability, and customer success—from structured cabling to fiber infrastructure solutions with 24-port SC connector capacity, modular steel panel construction, easy splicing tray access, and compact patch cabinet design for space-constrained environments. Contact us today to explore how this rack mount ODF or our broader product portfolio can support your fiber distribution, patching, and splicing needs in smaller deployments. It's not only about you, but about creating value for your market.
FAQ
Q1: Compared with your peers, what are your competitive advantages?
A1: Our main focus is on cost-effectiveness. The prices very competitive and we ensure that the product quality meets thestandards. Besides our own produced items, we have over 500 stable partners who provide OEM supplies or customized products based on customer requirements.
A1: Our main focus is on cost-effectiveness. The prices very competitive and we ensure that the product quality meets thestandards. Besides our own produced items, we have over 500 stable partners who provide OEM supplies or customized products based on customer requirements.
Q2: What is your minimum order quantity?
A2: depending on whether there is inventory or in stock,if no customization requirements. alternatively with OEM product have MOQ
Q3: What payment methods do you accept?
A3: We accept T/T(Bank Transfer), L/C (Letter of Credit), and Alibaba Trade Assurance for secure and protected transactions.
Q4: What is your pricing term? (FOB, CIF, EXW, etc.) ,can you accept DDP?
A4: We usually quote EXW,FOB ningbo/shanghai Port], which is the most common term for our international buyers. We can also offer CIF or other terms based on your request. Regarding DDP:we could consider this after trial order cooperation.
