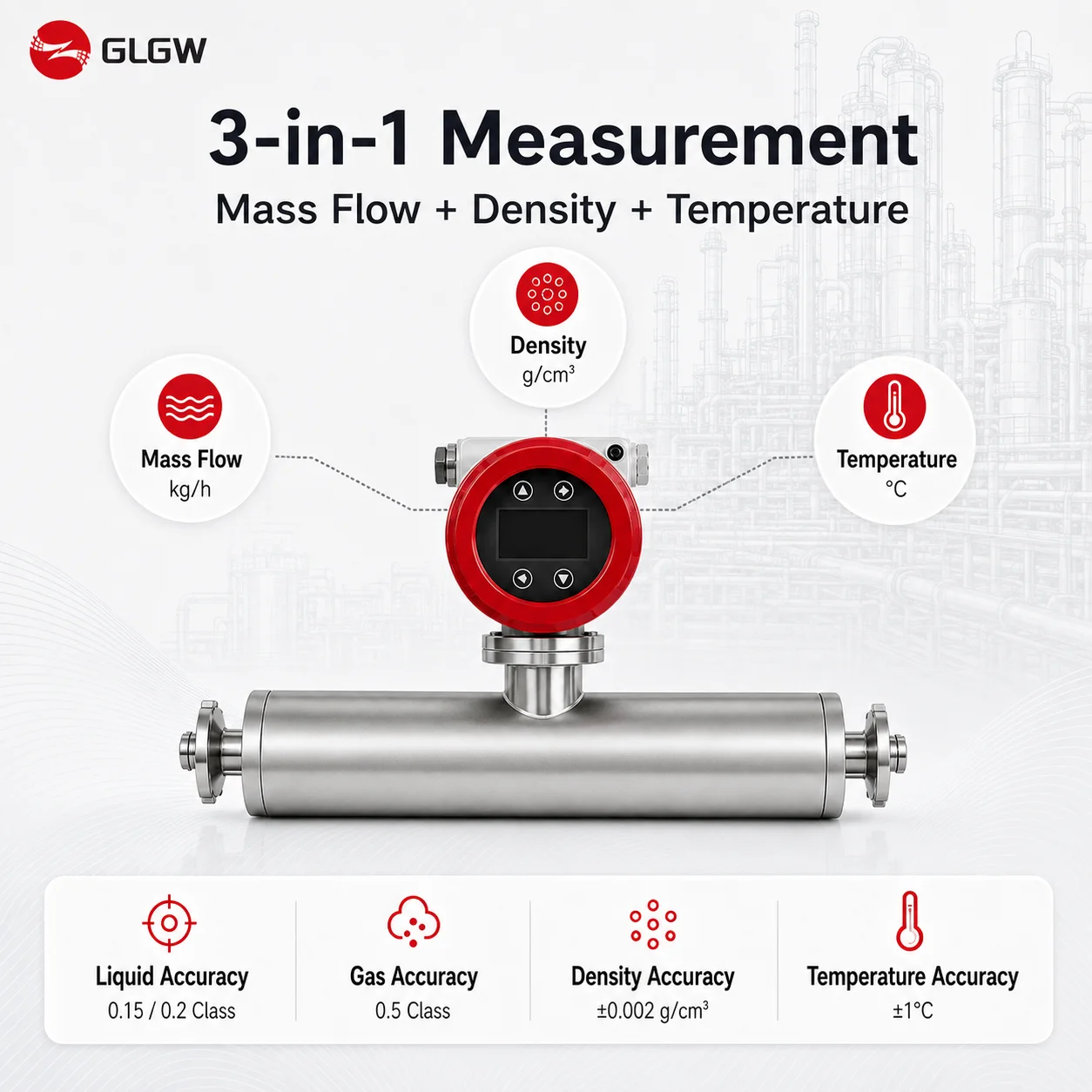

[High-Precision Direct Mass Measurement] Directly measures mass flow, fluid density (±0.002 g/cm³), and temperature (±1°C) in real-time with superior accuracy up to ±0.2% (liquid) and ±0.5% (gas), eliminating errors caused by pressure/temperature variations.

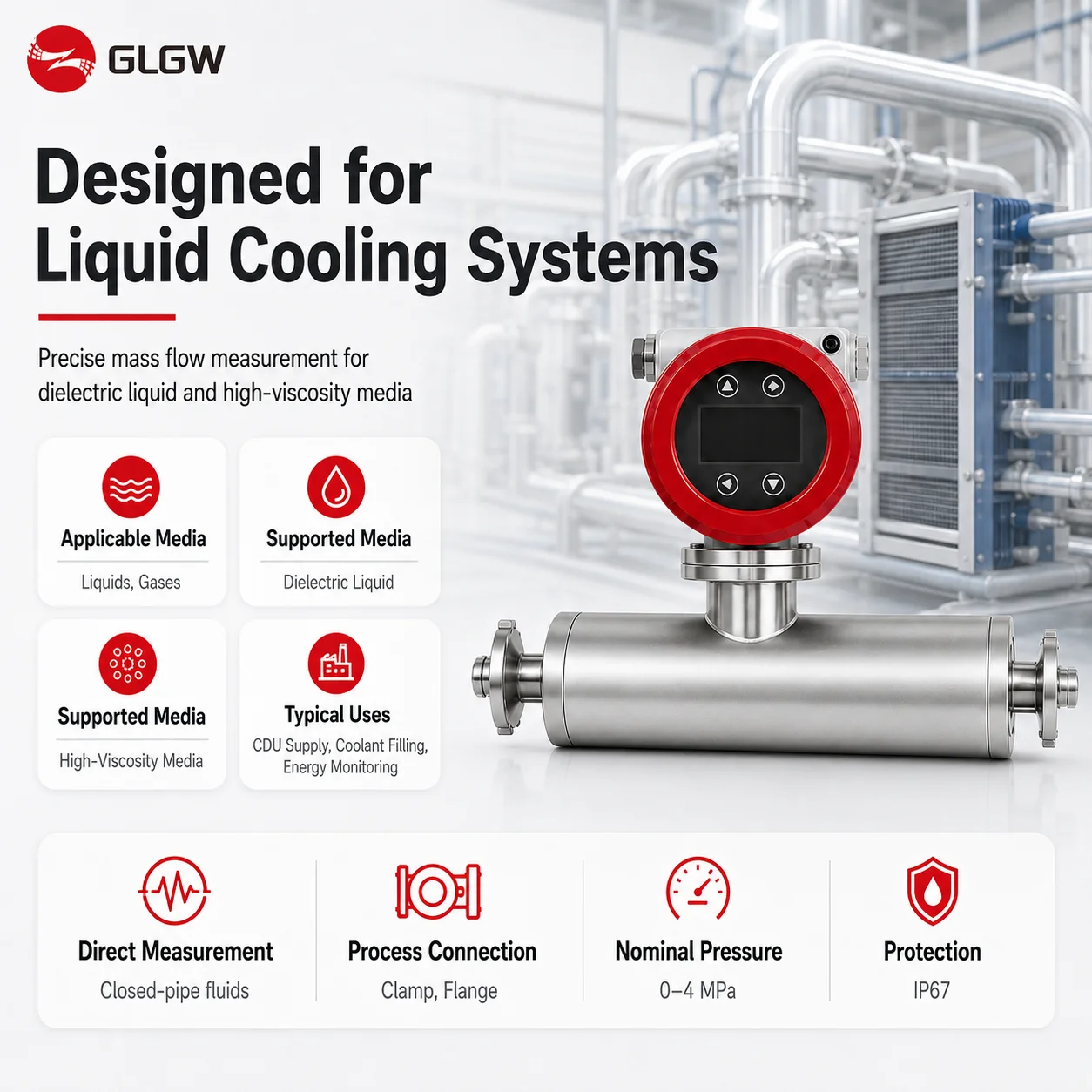

[Optimized for Data Center Liquid Cooling & CDU] Specially engineered triangle micro-flow design (DN3-DN15) ideal for coolant charging, immersion dielectric fluids, CDU supply loops, and server rack energy consumption monitoring.

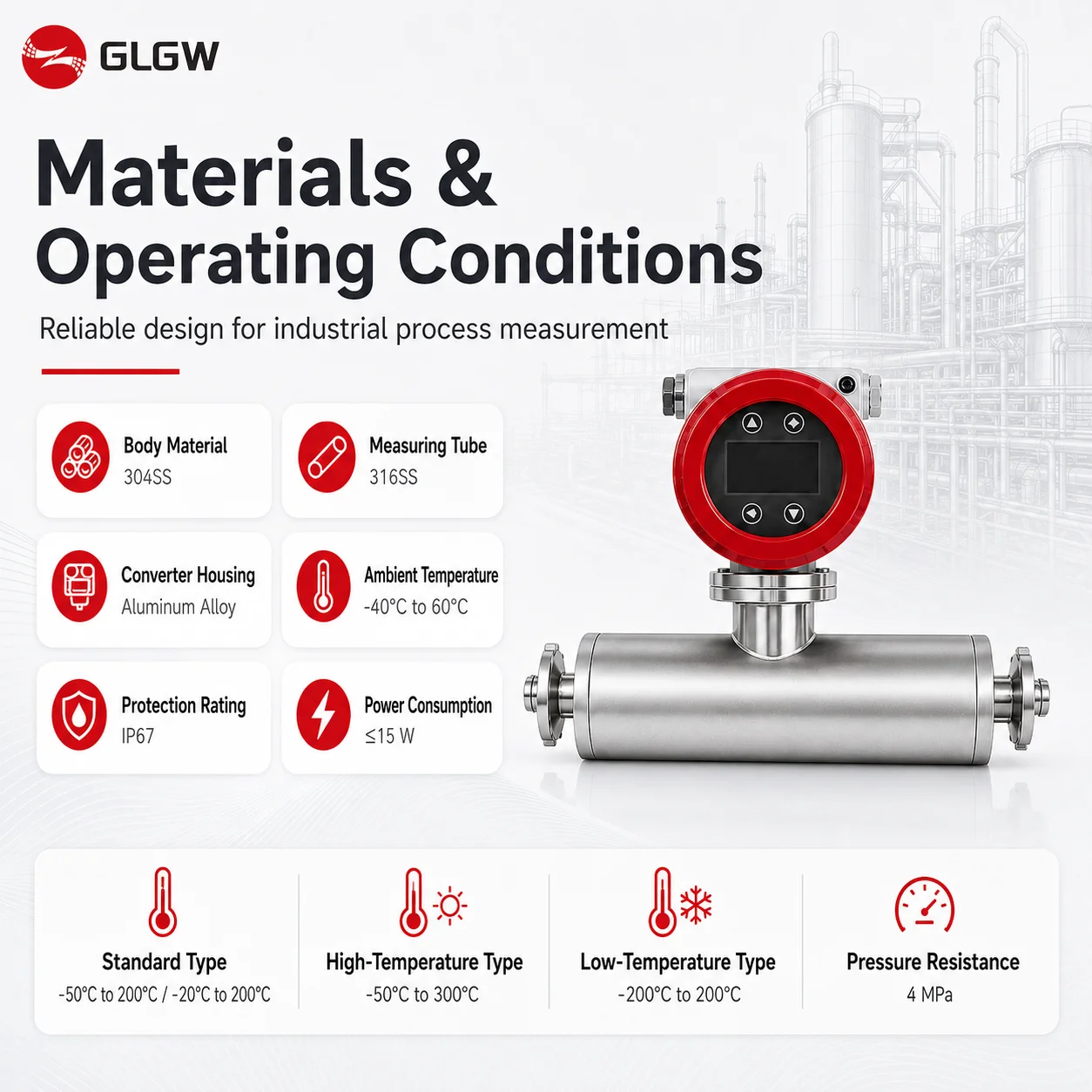

[Premium 316SS Industrial Durability] Equipped with high-grade 316 stainless steel measuring tubes and a robust 304SS housing, delivering excellent corrosion resistance, up to 4.0 MPa (PN40) pressure rating, and IP67 waterproof/dustproof protection.
[Wide Temperature Adaptability] Standard medium operating range of -50°C to +200°C (customizable from -200°C cryogenic to +300°C high-temperature environments) with 72h neutral salt spray resistance.

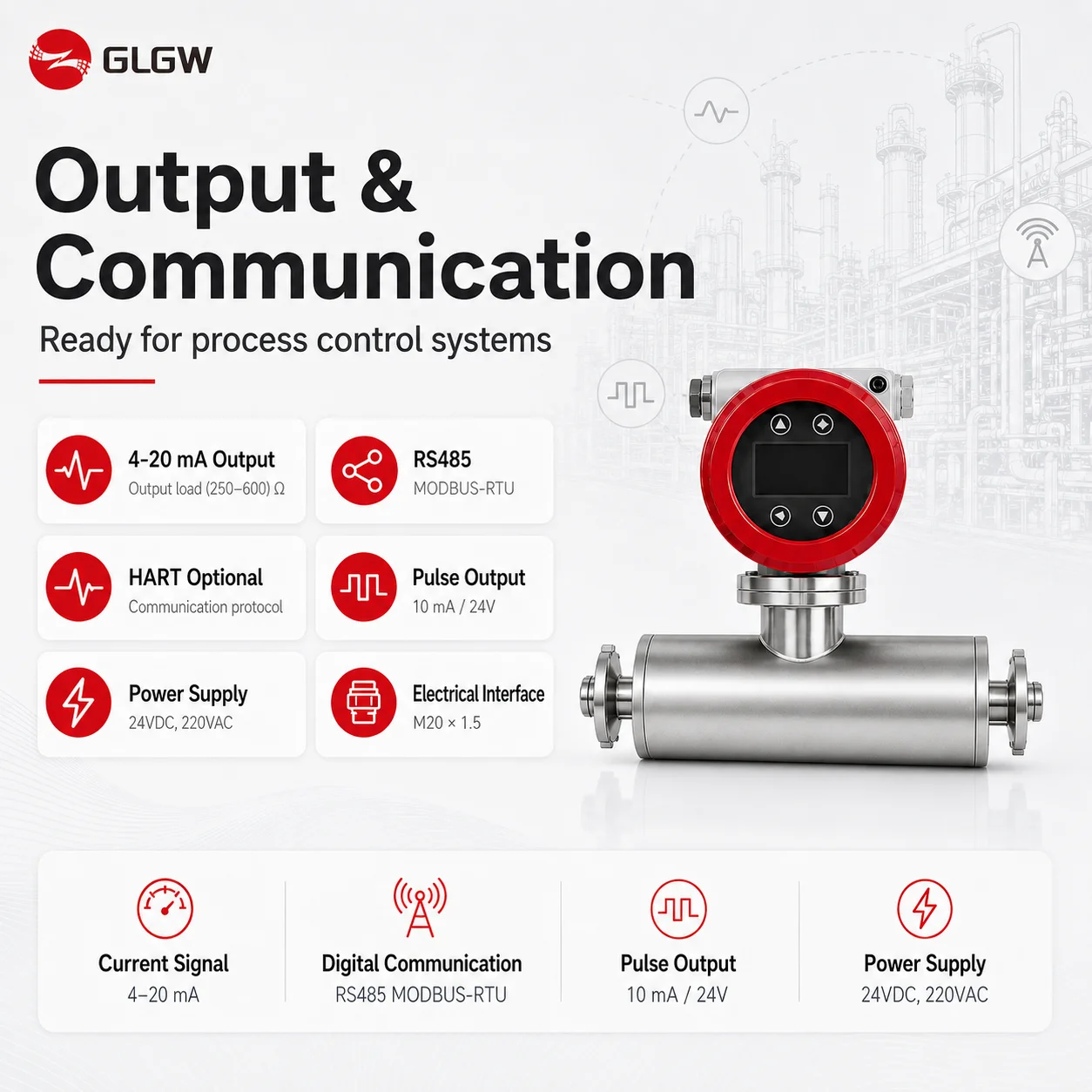

[Versatile Signals & Smart Connectivity] Supports 4-20mA active analog output, high-speed pulse/frequency output, RS485 (standard Modbus-RTU protocol), and optional HART communication for seamless DCS/PLC integration.
[Flexible Installation & Process Connections] Available in both Compact (integrated) and Remote (split-type with up to 50m cable) configurations; compatible with ISO2852 sanitary clamp-on and HG/T 20592 / ANSI / JIS standard flanges.

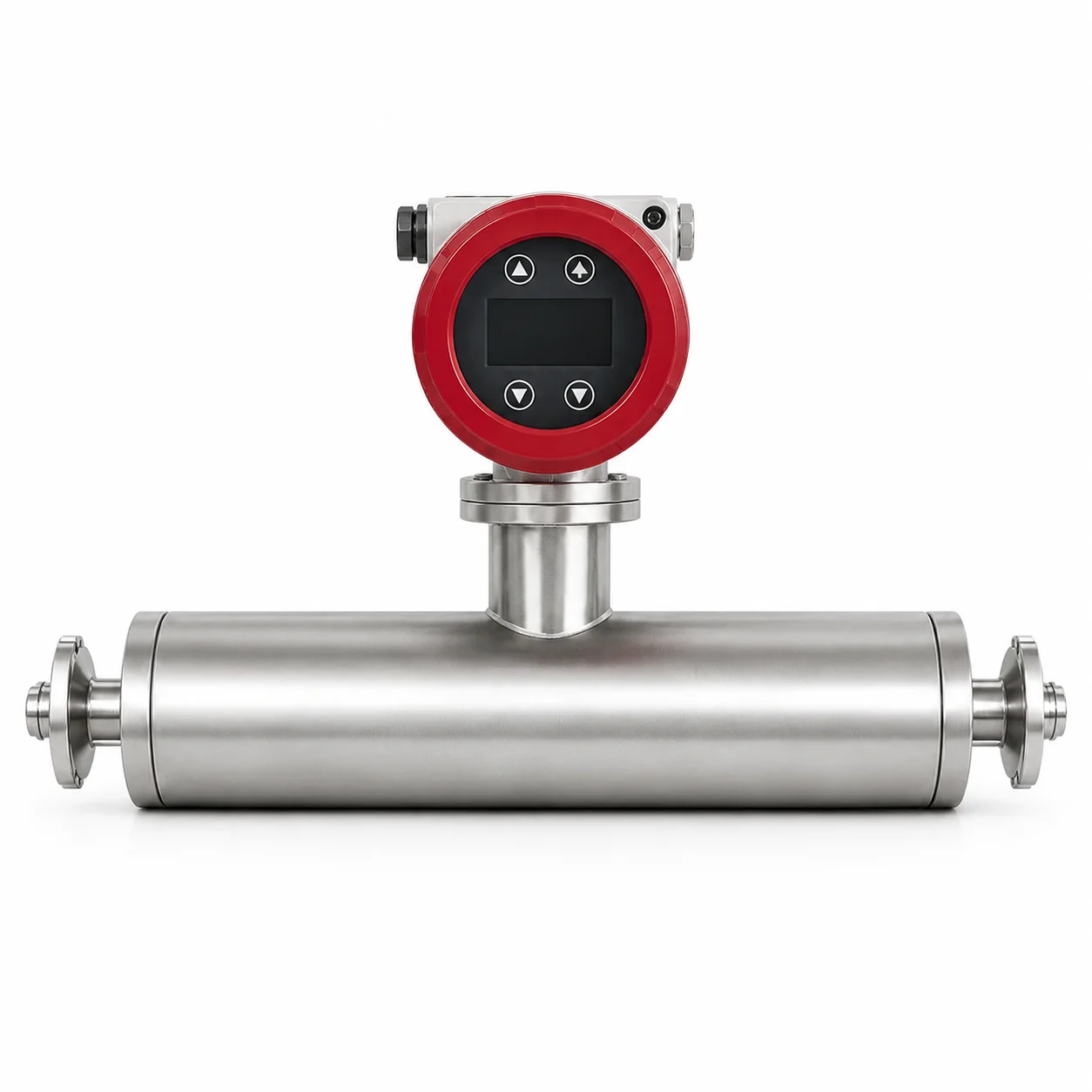

FCC300 Sanitary Tri Clamp Flange Coriolis Flowmeter for Data Center Dielectric Fluid Liquid Cooling Dosing & Energy Metering
Spu:
1601937661880
- Overview
- Recommended Products
About Product
Highlight
About Us
Ningbo GLGW Nova Materials Technology Co., Ltd. is a precision manufacturing enterprise established in 2025, specializing in high-accuracy flow meters and industrial sensors. The company serves a domestic market of 50% and offers OEM/ODM services. Its products include Coriolis mass flow meters with ±0.2% accuracy, supporting liquid and gas measurements.
FAQs
What parameters can the FCC300 Coriolis mass flow meter measure simultaneously?
The FCC300 directly measures mass flow rate, fluid density (accuracy ±0.002 g/cm³), and process temperature (±1°C) in a single device. It delivers an accuracy of ±0.2% for liquids and ±0.5% for gases without requiring external pressure or temperature compensation.
Is this flow meter suitable for data center liquid cooling and CDU systems?
Yes. The FCC300 triangle micro-flow series (DN3 to DN15) is specifically designed for data center liquid cooling, coolant injection, CDU supply lines, dielectric fluids, and precise energy efficiency monitoring.
What are the wetted materials and pressure ratings?
The measuring tubes are manufactured from corrosion-resistant 316 stainless steel (316SS), and the body is constructed from 304SS. It supports working pressures up to 4.0 MPa (PN40 / Class 150/300 / JIS standards).
What process connections and installation options are available?
We offer ISO2852 sanitary clamp-on and standard flange connections (HG/T, ANSI B16.5, JIS B2220). Both Compact (integrated) and Remote (split-type with 2m-50m dedicated signal cables) configurations are supported.
What signal outputs and communication protocols are supported?
The transmitter provides dual (4-20mA) active analog outputs, active frequency/pulse output (24V), RS485 with Modbus-RTU protocol, and optional HART communication. It operates on 24V DC or 220V AC power supplies.
