HDODF Expansion for a Telecom Core Node

Managing More Fibers in Limited Space HDODF Expansion for a Telecom Core Node

Industry: Telecom Operators / Data Center Interconnect / Core Aggregation Facilities

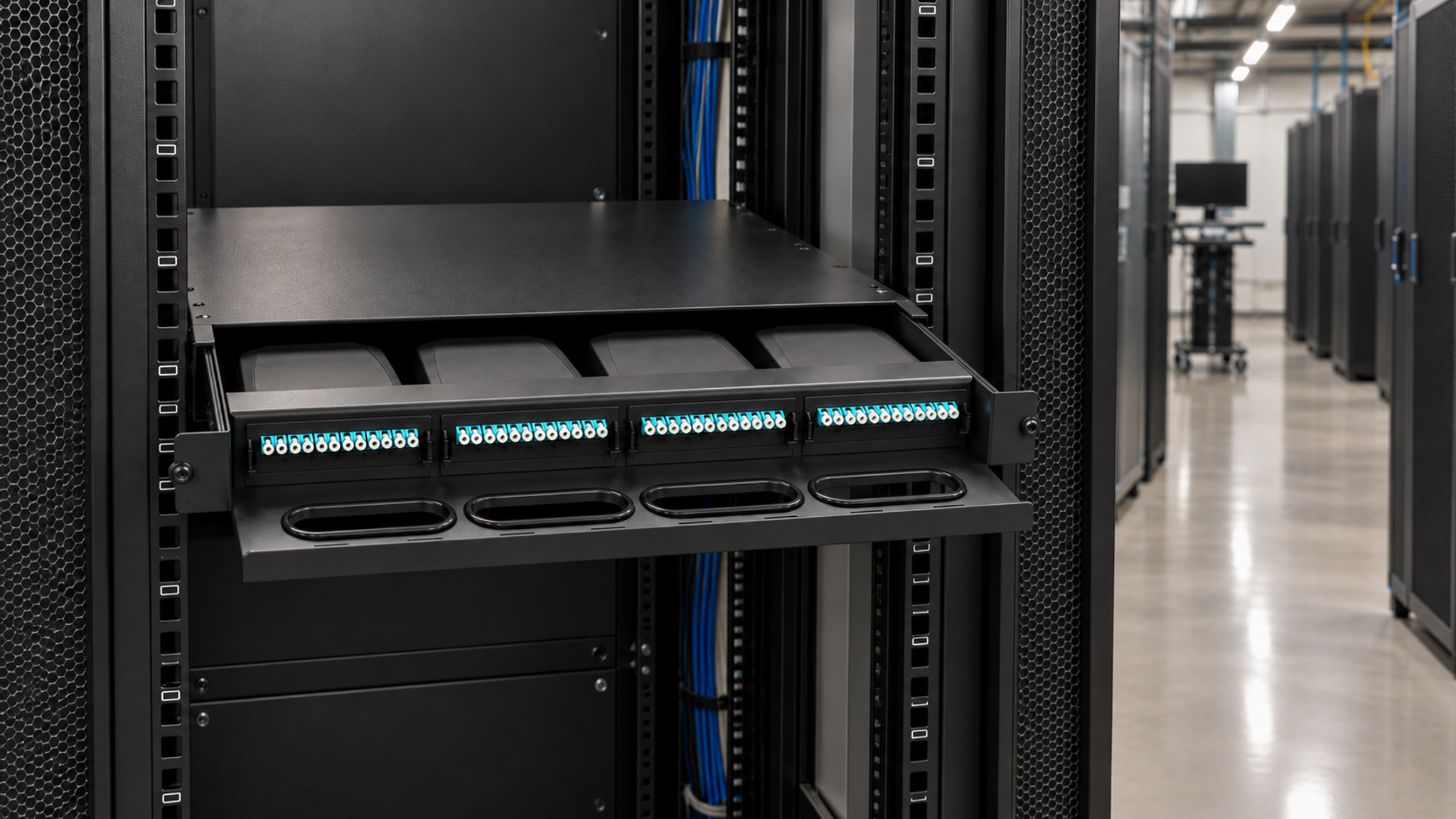

Core Products: High-Density Optical Distribution Frames (HDODF)

Project Highlights: High-Density Fiber Distribution · Traceable Fiber Routes · Phased Migration

Customer Background

A telecom operator’s regional core node is supporting a growing number of services. Its existing distribution area is experiencing capacity constraints, overlapping patch cord routes, and inconsistent labeling. With limited floor space available, the customer plans to reorganize fiber termination and patching areas using HDODF and progressively bring existing connections into a more structured layout.

The project must accommodate new connections while allowing operations and maintenance personnel to clearly identify the origin, destination, and service status of each fiber link.

Challenges and Pain Points

1.  Fiber distribution requirements continue to grow, while the available equipment room space cannot expand at the same pace.

2.  Increasing patch cord volumes and overlapping routes make tracing and rearrangement more difficult.

3.  High-density installation must retain sufficient access for connector handling, cleaning, and inspection.

4.  Migration of existing services requires verified connection records and appropriately scheduled maintenance windows.

GLGW Proposed Solution

Plan Capacity Around Practical Accessibility

Select HDODF configurations based on actual fiber counts, connector types, cable entry directions, and expansion requirements. Assess patch cord management and technician access under fully populated conditions.

Standardize Termination and Patch Cord Routing

Organize termination, splicing, and patching areas according to the selected model, using cable management features to guide fiber routes and maintain the required bend radius. Establish rack, module, and port numbering conventions to make connections easier to trace.

Coordinate Phased Migration and Handover

Verify active links and connection mappings before making changes in batches during approved maintenance windows. After each batch, check port assignments, test the links, and update the records. Where redundant services are involved, define migration procedures based on the system design and on-site validation.

Key Products and Components

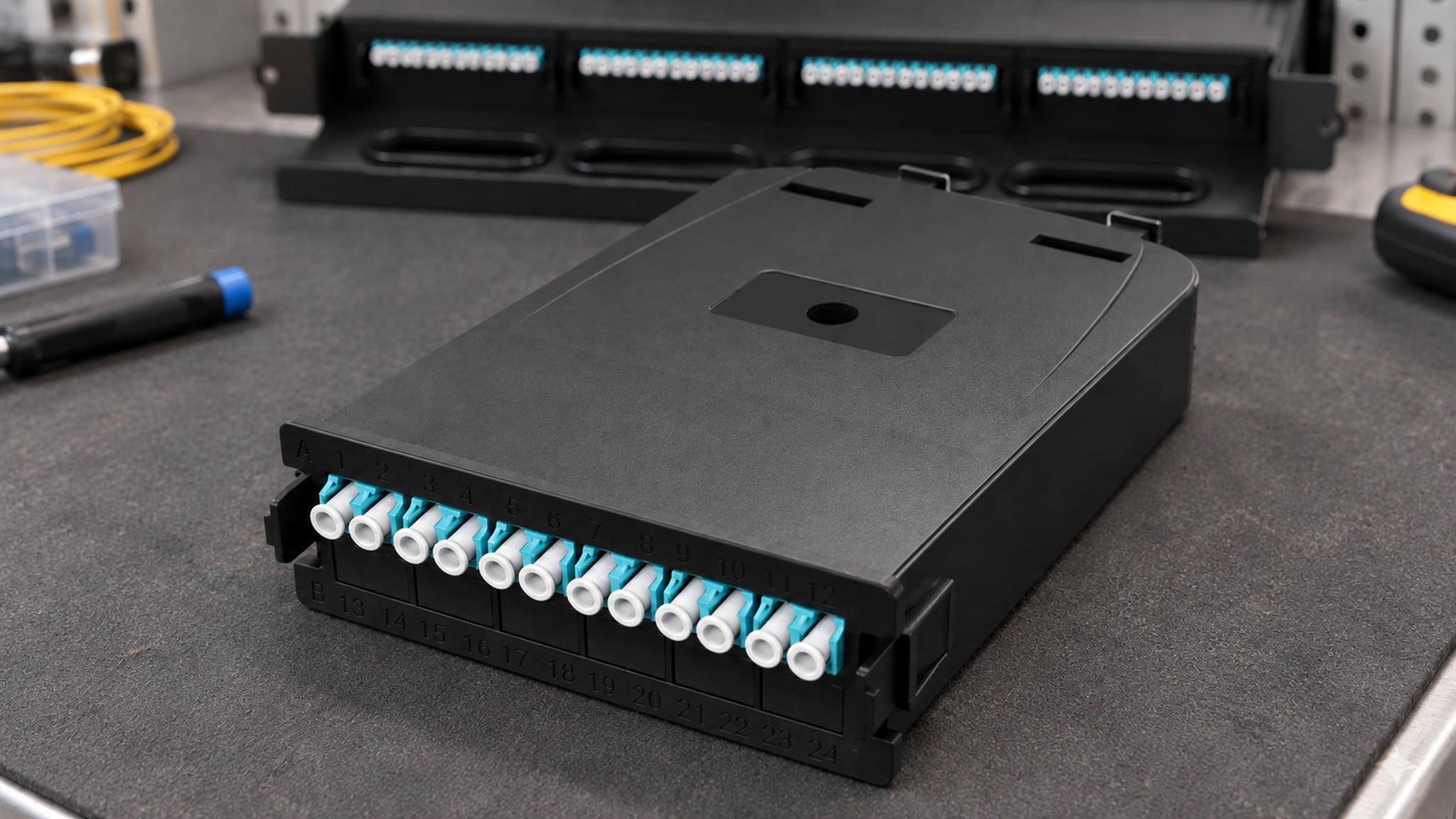

High-density optical distribution frames, compatible distribution modules, adapters, pigtails, patch cords, and cable management accessories. Exact capacity and connector configurations depend on the selected models.

Expected Results and Value

The solution establishes a more organized fiber connectivity and management structure within limited space, providing clear procedures for new connections, fiber tracing, and routine maintenance. Phased implementation also helps coordinate on-site work with service requirements.

Project Data to Add: Available port counts before and after expansion, distribution area footprint, fiber tracing time, and migration acceptance results.
